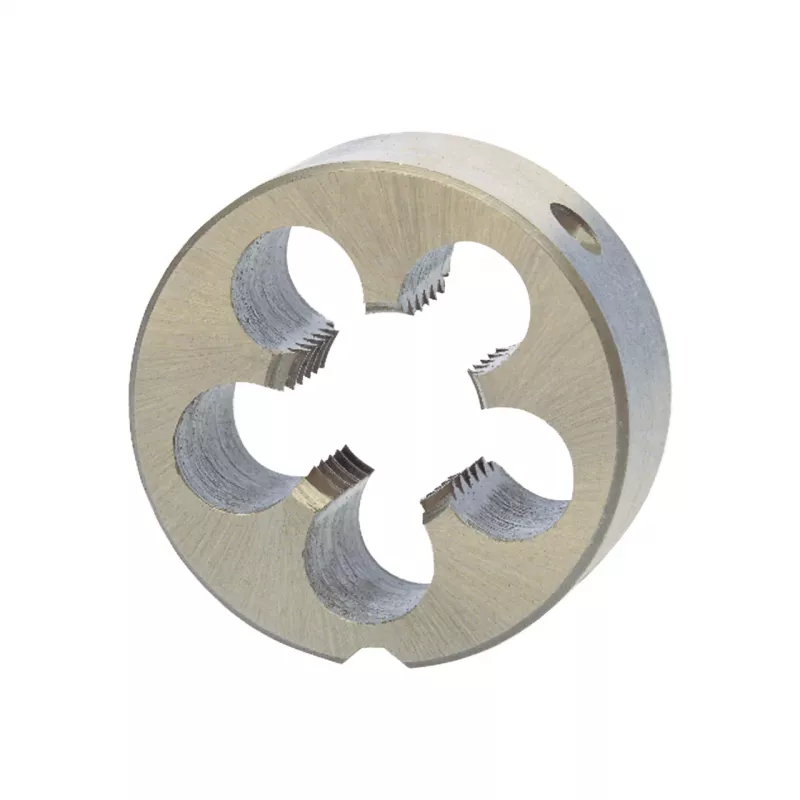

RUKO SCE-DIN223-M6x1.0mm terraja para rosca métrica normal

Round die for cutting external metric coarse threads, featuring high-speed steel construction for durability and a right-hand cutting direction. Ideal for manual and machine operation on steels up to 800 N/mm² and non-ferrous metals.

Advantages

High-speed steel (HSS) provides long tool life and resistance to wear. The bright finish reduces friction and improves chip flow. Three flutes ensure efficient chip evacuation and smooth thread cutting.

Suitable for

• Creating M6 x 1.0 mm external threads
• Steels up to 800 N/mm² tensile strength
• Non-ferrous metals
• Manual die stocks and die holders
• Machine tapping applications

Key specifications

• Thread size: M6 x 1.0 mm
• Standard: DIN 223
• Material: High-speed steel (HSS)
• Cutting direction: Right-hand
• Outer diameter: 20 mm
• Thickness: 7 mm
• Number of flutes: 3
• Tolerance class: 6g

Recommendations

Use with a suitable die stock or holder. Apply cutting oil for best results and longer tool life.
