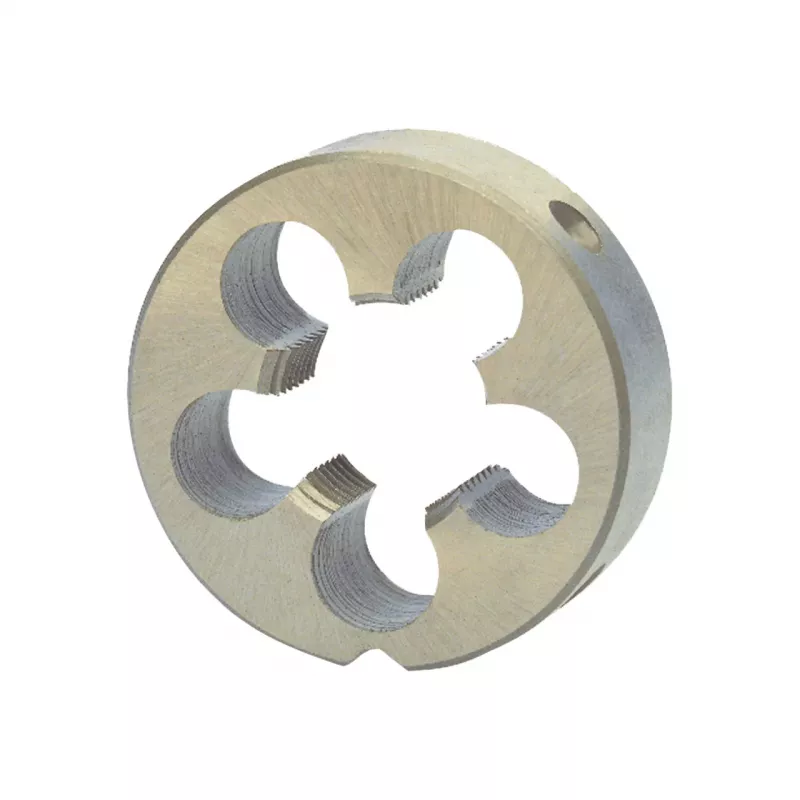

RUKO SCE-DIN223-MF13x1,5mm Terraja para rosca métrica fina, HSS-G, rectificada, a derechas, 6g

This RUKO SCE-DIN223-MF13x1.5mm is a metric fine thread cutting die made from high-speed steel with a ground profile, offering precision and durability for threading in unalloyed and alloyed steels, cast iron, and non-ferrous metals up to 800 N/mm². Unlike standard dies, its ground flutes and tight 6g tolerance ensure clean, accurate threads in demanding applications.

Highlights

• Metric fine thread M13 x 1.5 mm, right-hand cutting direction
• High-speed steel (HSS-G) with bright finish for long tool life
• Ground profile and 3 flutes for smooth chip evacuation
• Outer diameter 30 mm, thickness 11 mm, fits standard die stocks

In daily use

Designed for general-purpose threading, this die delivers consistent results in both manual and machine operations. Its precision ground threads reduce friction and heat build-up, extending tool life and improving thread quality. The 6g tolerance class ensures compatibility with standard metric fine fasteners.

Full specifications

• Thread type: Metric Fine (MF)
• Nominal thread diameter: M13
• Thread pitch: 1.5 mm
• Standard: DIN 223
• Material: HSS-G (High-Speed Steel, Ground)
• Cutting direction: Right-hand
• Outer diameter: 30 mm
• Thickness: 11 mm
• Tolerance class: 6g
• Application: General purpose threading in unalloyed and alloyed steels, cast iron, non-ferrous metals
• Max material strength: 800 N/mm²
• Surface finish: Bright (uncoated)
• Number of flutes: 3
• Tool type: Thread cutting die
• Manufacturing process: Ground profile
• Drive type: Round die for die stock

Final note

Precision ground in Germany, this die is a reliable choice for workshops requiring consistent thread quality in metric fine applications.
