RUKO SMU-DIN382-M5x0,8mm-6k terraja para roscas métricas de paso normal

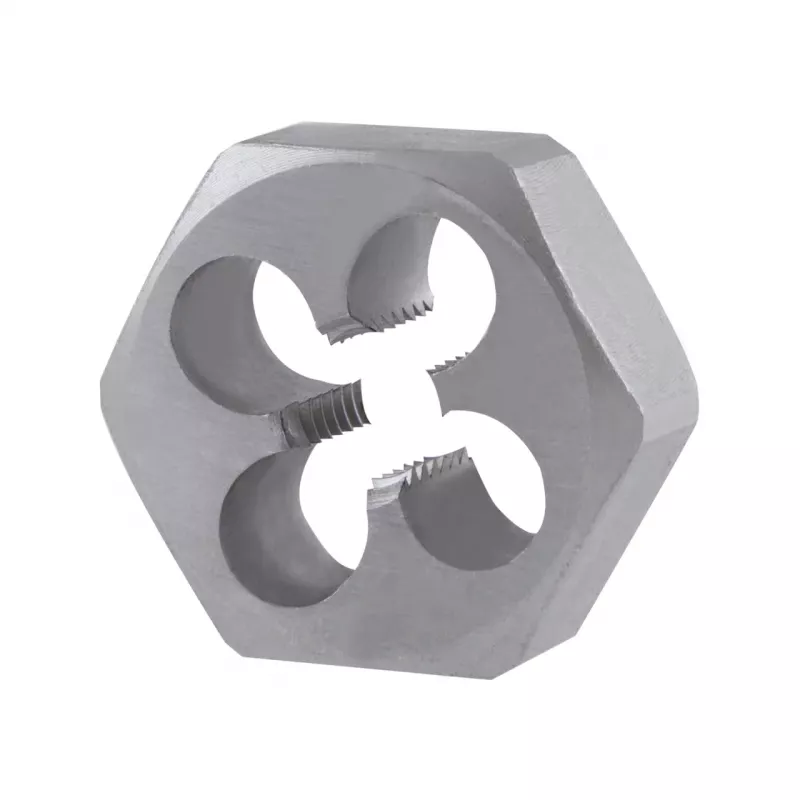

This round die is engineered for cutting metric coarse external threads with precision. Its HSS construction and 6g tolerance class ensure clean, accurate threads in unalloyed and low-alloyed steels as well as non-ferrous metals.

Advantages

High-speed steel provides durability and long service life. The bright finish reduces friction during threading, while the right-hand cutting direction suits standard applications. The die is designed for use with a die stock for manual or machine operation.

Suitable for

• Creating M5 x 0.8 mm external threads
• General purpose threading in unalloyed and low-alloyed steels
• Threading non-ferrous metals

Key specifications

• Thread size: M5
• Thread pitch: 0.8 mm
• Standard: DIN 382
• Material: HSS
• Tolerance class: 6g
• Outer diameter: 20 mm
• Thickness: 7 mm
• Cutting direction: Right-hand

Recommendations

Use with a suitable die stock and cutting fluid for best results. Ideal for maintenance, repair, and small-batch production where precise metric threads are required.
