RUKO Terraja para rosca a izquierdas SCE-DIN22568-HSS-60°-M12x1.75mm

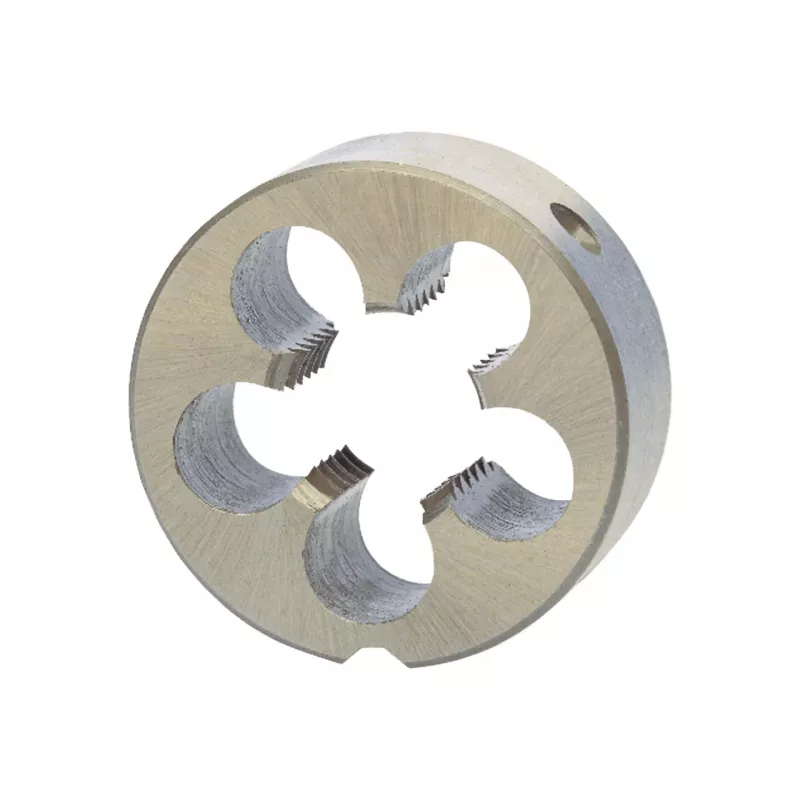

This RUKO round die is engineered for cutting left-hand metric coarse threads, a less common but essential operation for specific mechanical assemblies where reverse rotation is required. Unlike standard right-hand dies, this tool ensures precise thread geometry for M12 fasteners with a 1.75 mm pitch, meeting DIN 22568 specifications.

Highlights

• Left-hand thread direction for specialized applications
• High-speed steel (HSS) construction for durability
• Ground cutting edges for accuracy and clean threads
• Compatible with standard die stocks

In daily use

Ideal for repair and production tasks involving left-hand threads on steel, cast iron, non-ferrous metals, and plastics. The bright finish reduces friction and improves chip flow, while the 6g tolerance class ensures consistent thread fit.

Full specifications

• Thread standard: Metric coarse
• Nominal diameter: M12
• Thread pitch: 1.75 mm
• Thread direction: Left-hand
• Material: High-speed steel (HSS)
• Manufacturing standard: DIN 223
• Outer diameter: 30 mm
• Thickness: 11 mm
• Tolerance class: 6g
• Cutting geometry: Ground
• Surface treatment: Bright finish

Final note

Precision-ground HSS die for reliable left-hand thread cutting in professional and workshop environments.
