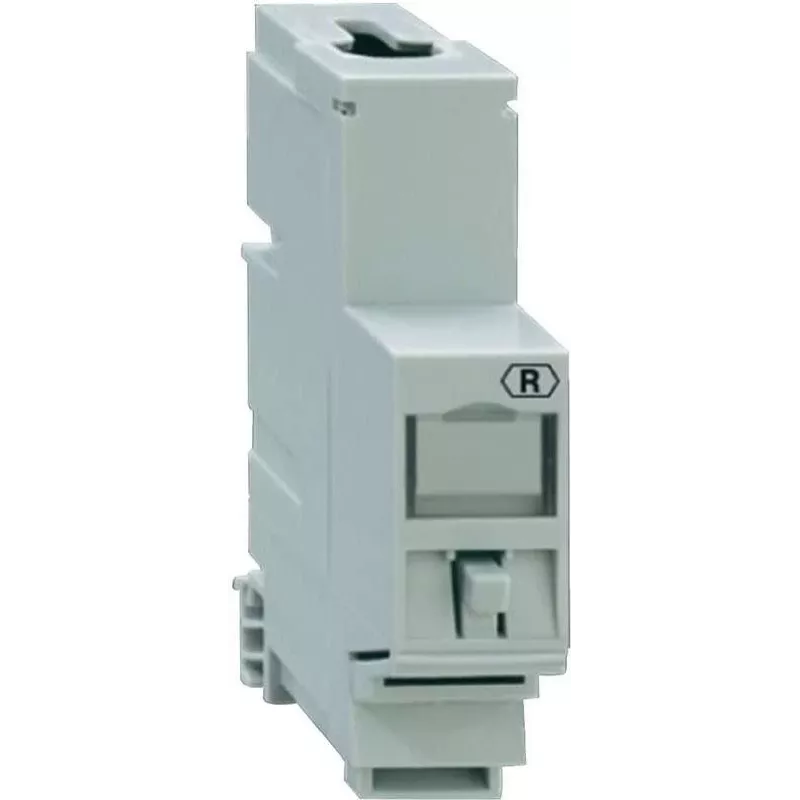

Rutenbeck UM-MA REG módulo de entrada modular, 4 contactos libres de potencial, gris claro

The Rutenbeck UM-MA REG is a modular input unit with four potential-free contact inputs, designed for integration into building automation and control systems. It provides reliable signal input for flush-mounted installations in standard switch frames.

Advantages

Four independent potential-free inputs allow connection of switches, sensors, or other dry contacts. Screw terminals ensure secure and durable wiring. The unit is compatible with standard 55x55 mm switch ranges using adapter frames, making it easy to integrate into existing installations.

Suitable for

• Building automation systems
• Control system signal input
• Flush-mounted installations in standard switch frames

Key specifications

• Number of inputs: 4
• Input type: Potential-free contacts
• Connection type: Screw terminals
• Mounting type: Flush-mounted (for standard switch frames)
• Material: Thermoplastic
• Colour: Light grey
• Operating temperature range: 0 to +50 °C
• Compatibility: Standard 55x55 mm switch ranges (with adapter frames)

Recommendations

Ideal for integrating binary signals from switches or sensors into automation controllers in residential and commercial buildings.
