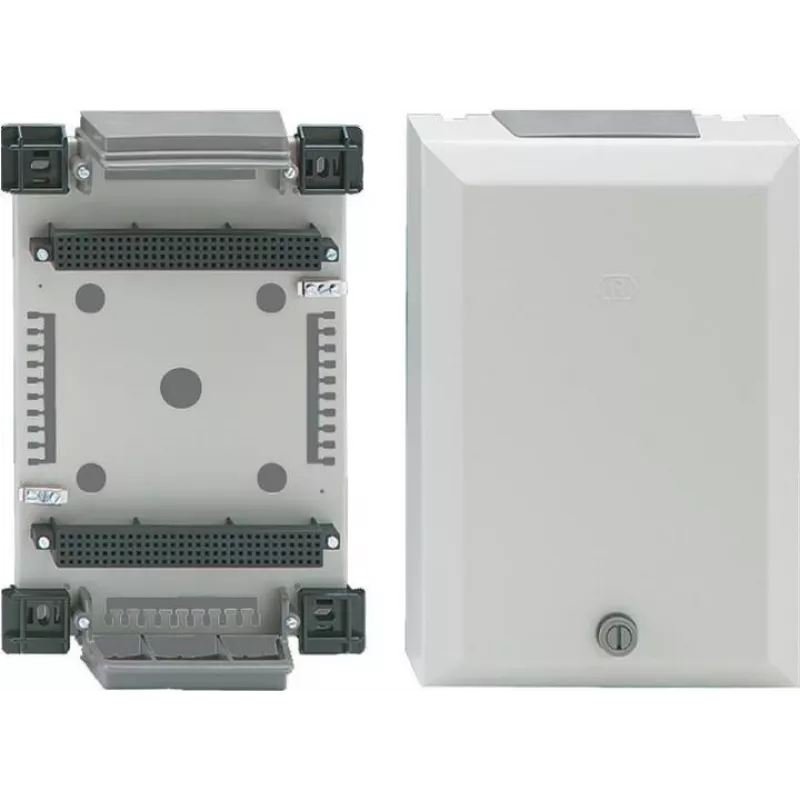

Rutenbeck VKP 85/2 Ap caja de distribución de superficie, gris claro RAL 7035 27010101

Surface-mount distribution box for structured cabling and electrical installations, featuring a robust thermoplastic enclosure in light grey (RAL 7035) with two pre-punched cable entries for clean, organised wiring.

Advantages

The VKP 85/2 Ap offers a compact, halogen-free housing that snaps securely shut, providing impact resistance (IK05) and protection against solid objects (IP40) for indoor use. Its surface-mount design simplifies installation on walls or ceilings without flush-mounting requirements.

Suitable for

• Structured cabling consolidation points
• Junction and connection boxes in residential or commercial buildings
• Indoor network and electrical distribution applications

Key specifications

• Mounting type: surface mount (Aufputz)
• Material: thermoplastic, halogen-free
• Colour: light grey, RAL 7035
• Ingress protection: IP40
• Impact resistance: IK05
• Operating temperature: -5 °C to +60 °C
• Number of cable entries: 2 (pre-punched knockouts)
• Cover type: snap-on
• With terminals: no (empty enclosure)
• Rated insulation voltage: 400 V
• UV-resistant: no
• Application environment: indoor
• External dimensions: 85 x 85 x 37 mm
• Standards compliance: VDE

Recommendations

Ideal for installers needing a reliable, space-saving surface-mount box for cable management in dry indoor locations. Pair with appropriate cable glands or connectors for a complete solution.
