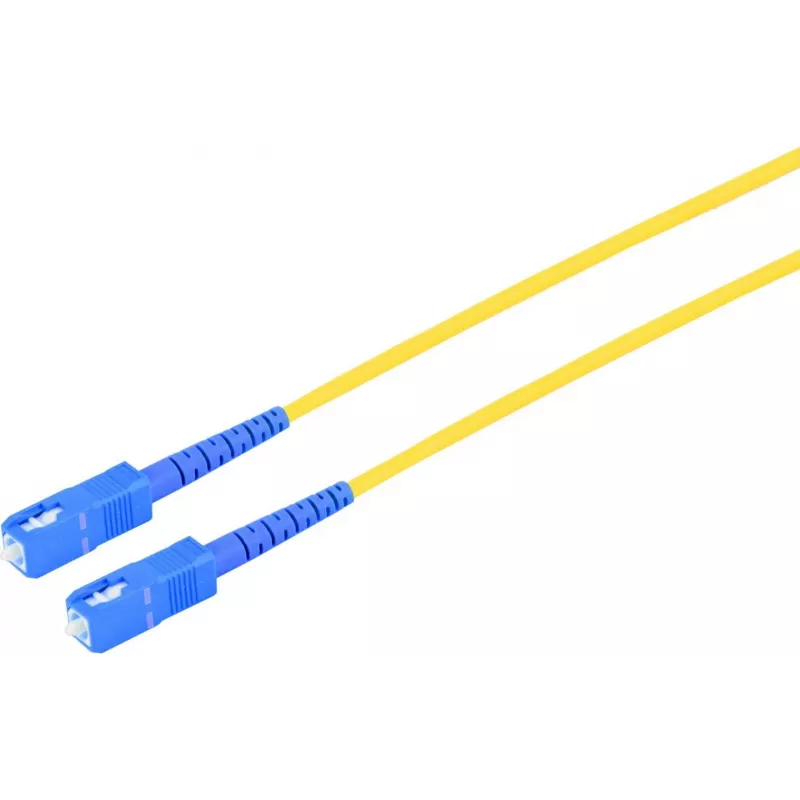

S CONN MAXIMUM CONNECTIVITY SC/SC UPC 9/125µ OS2 cable de parcheo de fibra óptica monomodo, amarillo, 1,5m 07-106152

This S CONN MAXIMUM CONNECTIVITY patch cable provides a reliable single-mode fibre link with SC/UPC connectors on both ends. The 9/125µm OS2 fibre supports long-distance, high-bandwidth transmission, while the yellow jacket ensures quick identification in structured cabling environments.

Highlights

• Single-mode OS2 fibre with 9/125µm core/cladding
• SC/UPC connectors on both ends
• 1.5m length with yellow LSZH jacket
• Low insertion loss and high return loss

In daily use

Ideal for data centres, telecom rooms, and enterprise networks, this cable connects fibre patch panels, switches, and media converters. The UPC polish minimises back reflections, ensuring stable performance for 10G, 40G, and 100G Ethernet links.

Full specifications

• Fibre type: OS2 single-mode
• Core/cladding diameter: 9/125µm
• Connector 1: SC/UPC
• Connector 2: SC/UPC
• Cable length: 1.5m
• Jacket colour: yellow
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Wavelengths: 1310nm, 1550nm
• Attenuation: < 0.35 dB/km @1310nm, < 0.25 dB/km @1550nm

Final note

For reliable single-mode connectivity, this S CONN cable delivers consistent performance in demanding network environments.
