S CONN MAXIMUM CONNECTIVITY Set de cables de extensión PV4, 4mm², 2x 5m, negro 02-32055

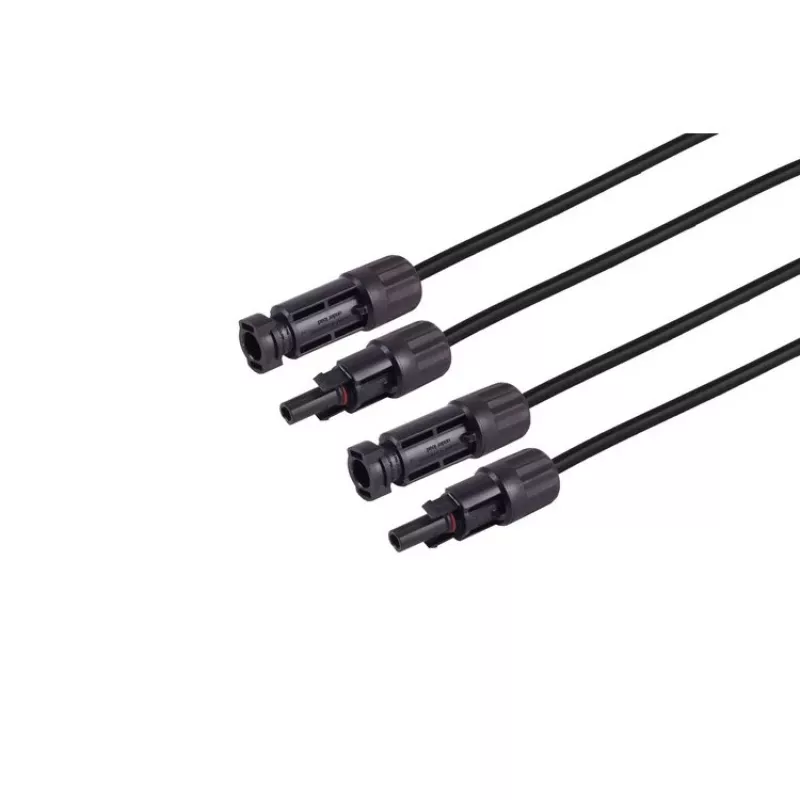

The S CONN MAXIMUM CONNECTIVITY PV4 Extension Cable Set delivers a straightforward solution for extending photovoltaic module connections. Each set includes two 5-meter cables with 4mm² cross-section, terminated with MC4-compatible connectors, allowing quick extension of solar panel wiring without special tools.

Highlights

• Set of two 5m extension cables for PV systems
• 4mm² tinned copper conductors for efficient power transmission
• MC4-compatible male-to-female connectors on each cable
• XLPE insulation and jacket for outdoor durability
• Rated for 1000V DC and 30A

In daily use

These extension cables are built for photovoltaic installations where panels need to be positioned farther from the inverter or junction box. The black cables resist UV and ozone, and the connectors are weather-resistant for reliable outdoor use. The tinned copper conductors provide good corrosion resistance, ensuring long-term performance in solar applications.

Full specifications

• Product Type: Solar PV Extension Cable Set
• Cable Cross-Section: 4 mm²
• Cable Length: 5 m (per cable)
• Number of Cables in Set: 2
• Connector Type: MC4 Compatible
• Connector Configuration: Male to Female (on each cable)
• Cable Color: Black
• Conductor Material: Tinned Copper
• Insulation Material: XLPE (Cross-linked Polyethylene)
• Jacket Material: XLPE
• Rated Voltage (DC): 1000 V
• Rated Current: 30 A
• Temperature Range: -40°C to +90°C
• UV Resistance: Yes
• Ozone Resistance: Yes
• Weather Resistance: IP67 (for connectors)
• Flame Retardant: Yes (IEC 60332-1-2)
• Certifications: TÜV Rheinland, CE
• Application: Photovoltaic Systems, Solar Panel Installations

Final note

With a robust design and high current rating, this extension set is a practical choice for expanding solar installations.
