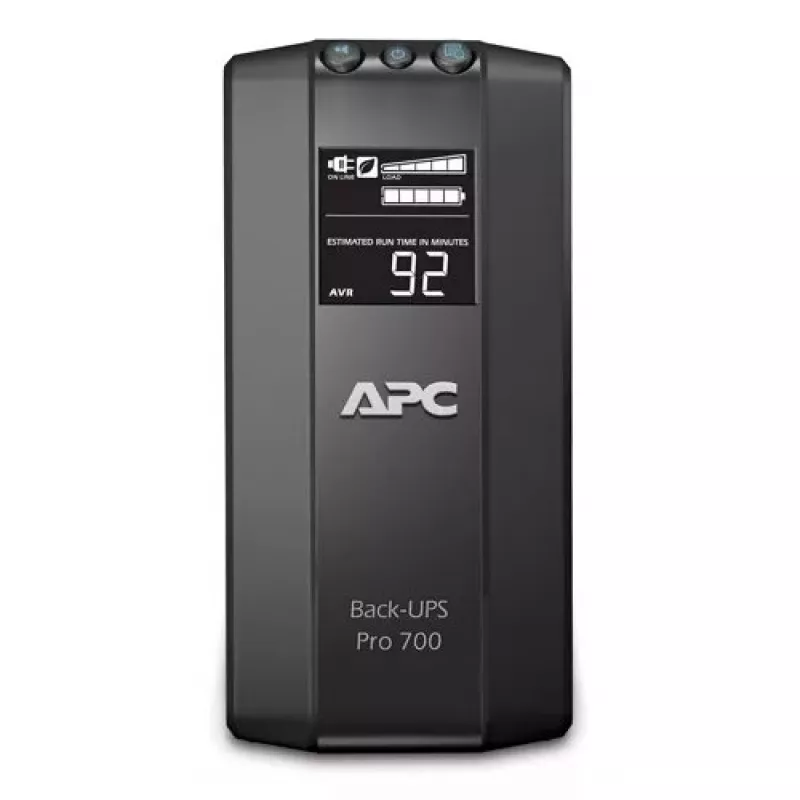

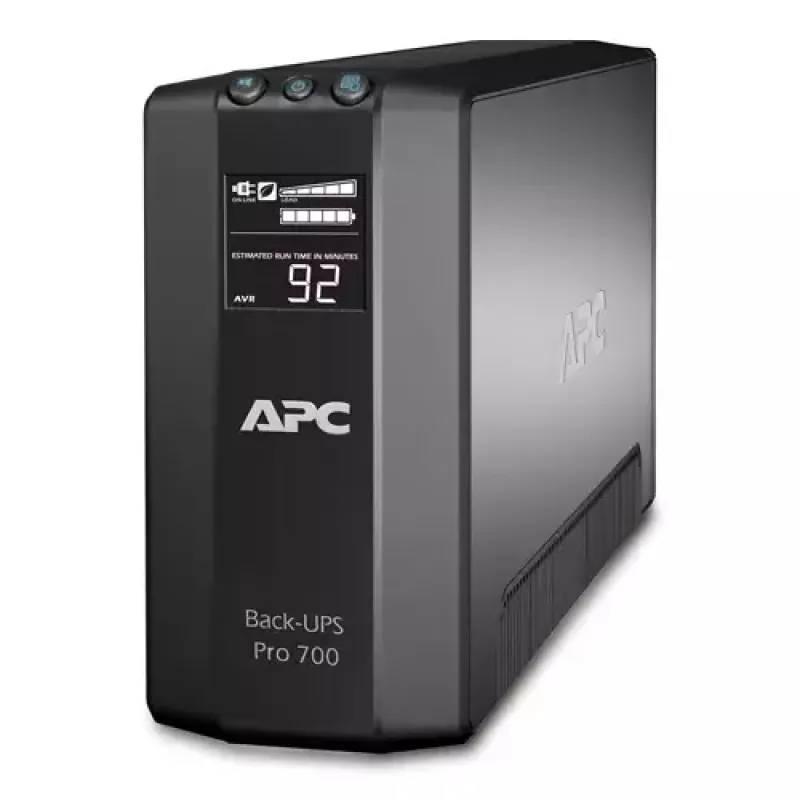

SAI APC BR700G sistema de alimentación ininterrumpida (SAI) 0,7 kVA 420 W

The APC BR700G Uninterruptible Power Supply (UPS) provides 0.7 kVA / 420 W of backup power using sealed lead‑acid (VRLA) battery technology. Designed to protect electronic equipment from power disturbances, it includes surge protection with a 355 J rating, a 1.83 m power cable and certifications from FCC and UL. The unit is compact and portable, weighing 7.15 kg, and offers features that increase availability and help reduce energy consumption.

Advantages

The UPS automatically cuts power to idle equipment to conserve electricity and warns when the internal battery is disconnected or unavailable for backup. Boost and Trim Automatic Voltage Regulation (AVR) corrects low and high voltage conditions without using the battery, increasing application availability. An LCD graphics display presents operation modes, system parameters and alarms in text and mimic diagrams for clear status monitoring.

Suitable for

• Home office computers and network equipment
• Point-of-sale terminals and small retail systems
• Modems, routers and small servers
• Peripheral devices that need surge protection and short runtime backup

Key specifications

• Model: APC BR700G
• Output power: 420 W
• Output power capacity: 0.7 kVA
• Battery type: Sealed lead acid (VRLA)
• Recharge time: 12 hours
• Surge energy rating: 355 J
• Weight: 7.15 kg
• Cable length: 1.83 m
• Colour: Black
• Certifications: FCC, UL

How to use

Install the UPS on a stable, ventilated surface near the equipment to be protected. Connect devices to the UPS outlets and plug the UPS into a grounded mains outlet using the supplied 1.83 m cable. On power loss, the UPS provides battery backup automatically; monitor the LCD graphics display for status, alarms and battery notifications. Follow the manufacturer instructions for initial charging — allow the battery to recharge fully (up to 12 hours) before relying on full runtime.

Recommendations

Place the APC BR700G in a cool, dry location with adequate ventilation, avoid stacking objects on top of the unit, and periodically check the LCD display for battery and alarm indications. Replace the battery according to the manufacturer’s service guidelines to ensure reliable backup performance.
