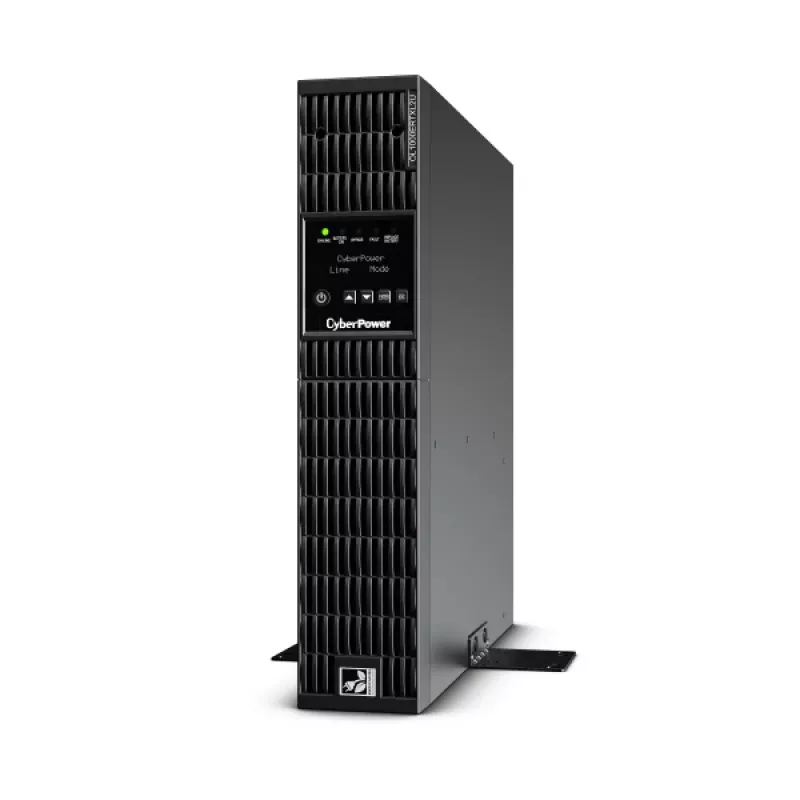

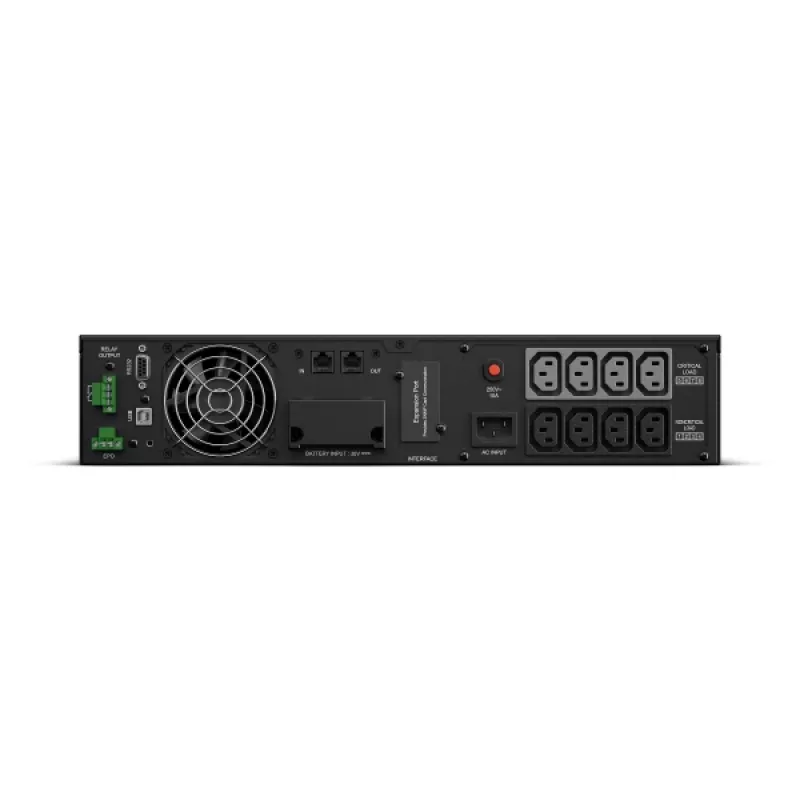

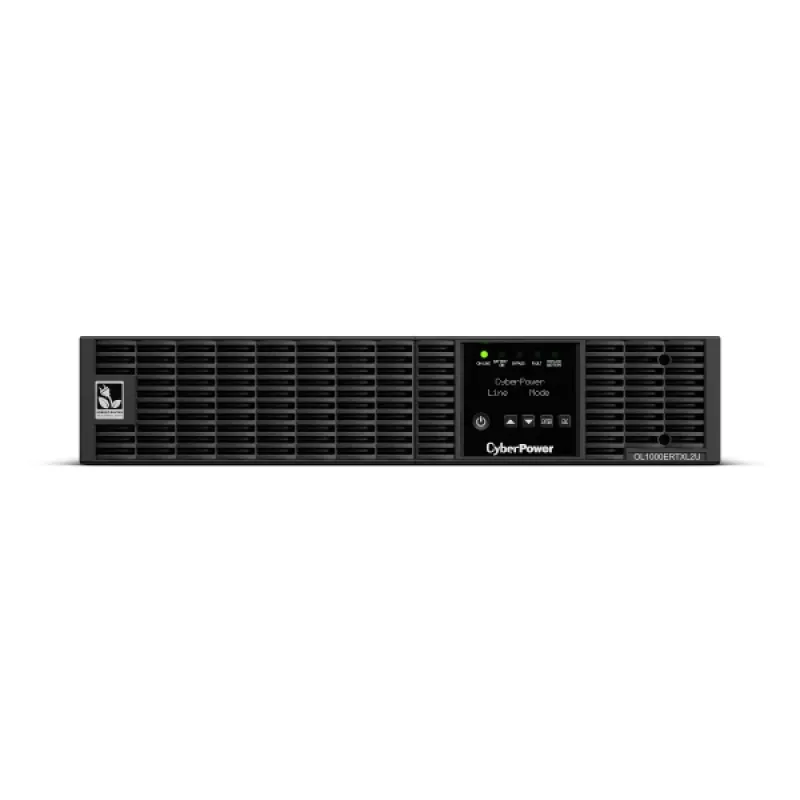

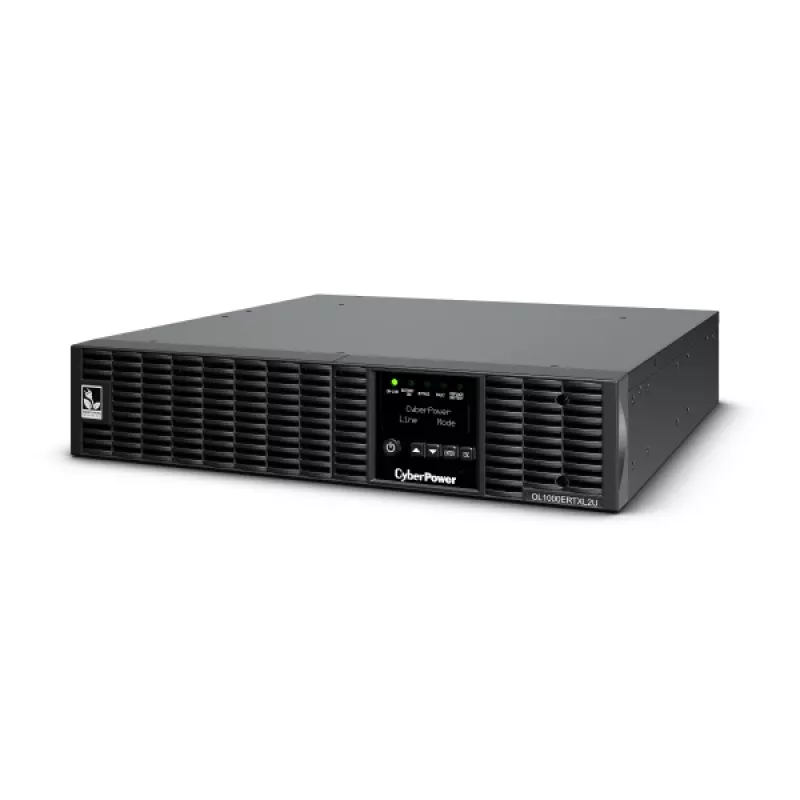

SAI CyberPower OL1000ERTXL2U (Sistema de alimentación ininterrumpida) Doble conversión (Online) 1 kVA 900 W 8 tomas

The CyberPower OL1000ERTXL2U is an online double-conversion uninterruptible power supply (UPS) that delivers pure sinewave power for servers, networking equipment, workstations and other mission-critical devices. With 1 kVA / 900 W capacity, sealed lead-acid batteries and a rackmount/tower metal housing, it provides reliable voltage regulation and short transfer time protection. Extended Runtime (XL) battery packs are supported to increase backup time, and PowerPanel® Business Edition management software plus optional SNMP/HTTP remote management enable centralized monitoring and controlled shutdowns.

Advantages

The OL1000ERTXL2U uses online double-conversion topology and zero transfer time to supply consistent pure sinewave output, ensuring continuous clean power under utility disturbances. Support for external Extended Runtime battery packs extends backup duration when needed. Built-in management features and compatibility with PowerPanel® Business Edition allow automated unattended shutdowns, event logging and notifications; optional SNMP/HTTP enables remote monitoring and control. Its metal chassis and rackmount/tower form factor suit data centre and server-room installations.

Suitable for

• Rack or tower servers
• Network switches and routers
• Critical workstations and storage devices
• Telecommunications and control systems

Key specifications

• Output power capacity: 1 kVA (900 W)
• AC outlets: 8
• Battery type: sealed lead acid
• Backup time: approx. 6 minutes at full load, 18 minutes at half load
• Form factor: rackmount / tower; metal housing
• Management: PowerPanel® Business Edition; optional SNMP/HTTP remote management
• Compliance: C-TICK, CE, RCM, RoHS
• Colour: Black; Weight: 18 kg

How to use

Install the OL1000ERTXL2U in a suitable rack bay or place it on a stable surface in tower orientation, ensuring adequate ventilation and access to AC mains. Connect critical loads to the UPS outlets and plug the UPS into a dedicated mains supply. Configure the PowerPanel® Business Edition software on a networked server or workstation for automatic shutdown, logging and notifications. If longer runtime is required, attach supported XL battery packs according to the manufacturer instructions and wiring diagrams.

Recommendations

For optimal performance, perform periodic battery tests and replace batteries per manufacturer intervals, ensure firmware and PowerPanel® software are kept up to date, and reserve separate circuits for high-priority equipment to avoid overloading the UPS.
