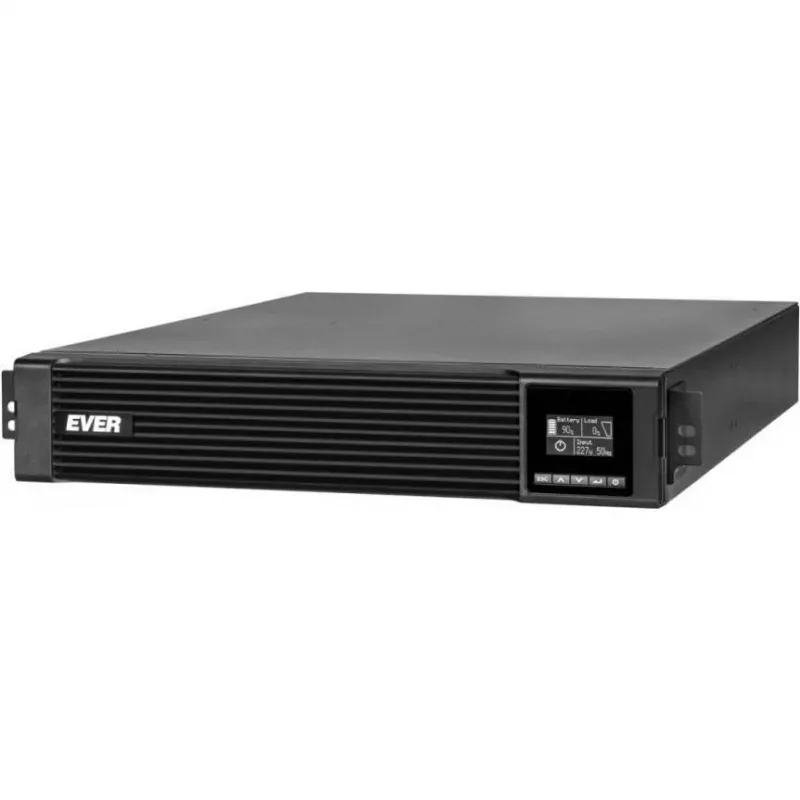

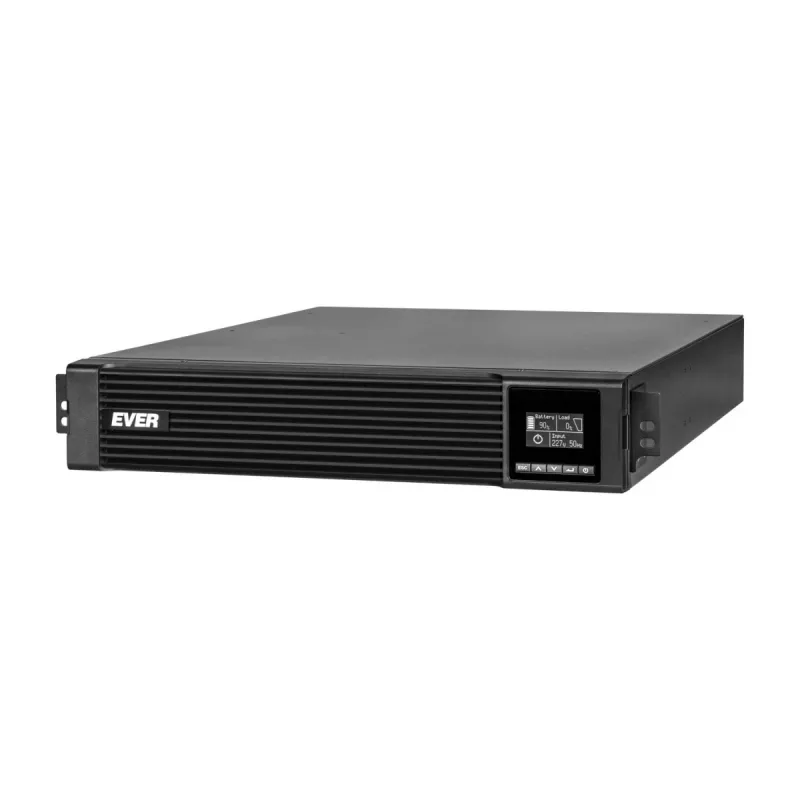

SAI online EVER Powerline RT PRO 3kVA 3kW Rack/Tower, doble conversión, 1-fase, 200–240 V salida, 9× salidas C13, LCD, baterías VRLA

UPS EVER POWERLINE RT PRO 3kVA 3kW online rack/tower is a double-conversion (online) uninterruptible power supply designed to provide continuous, regulated AC power for critical equipment. It delivers 3 kVA (3000 W) output power with a sine waveform, supports single-phase input and output, and features ECO mode with up to 97% efficiency. The unit is available in rackmount or tower form factor, has an LCD display and active cooling with a built-in fan.

Advantages

The UPS offers double-conversion topology for consistent voltage and frequency regulation, protection against short circuits and surges, and audible alarms for fault and status notifications. ECO mode improves operating efficiency, and the wide input voltage range and 3:1 crest factor accommodate variable loads and generator supply.

Suitable for

• Server rooms and network cabinets
• Telecommunication equipment
• Workstations and storage systems requiring clean power
• Critical infrastructure with single-phase power

Key specifications

• Output power: 3000 W (3 kW) / 3 kVA
• UPS topology: Double-conversion (Online)
• Input voltage range: 110–300 V
• Output voltage range: 200–240 V
• Input frequency: 45–66 Hz
• Crest factor: 3:1
• Waveform: Pure sine wave
• Efficiency in ECO mode: 97%
• Surge and short-circuit protection

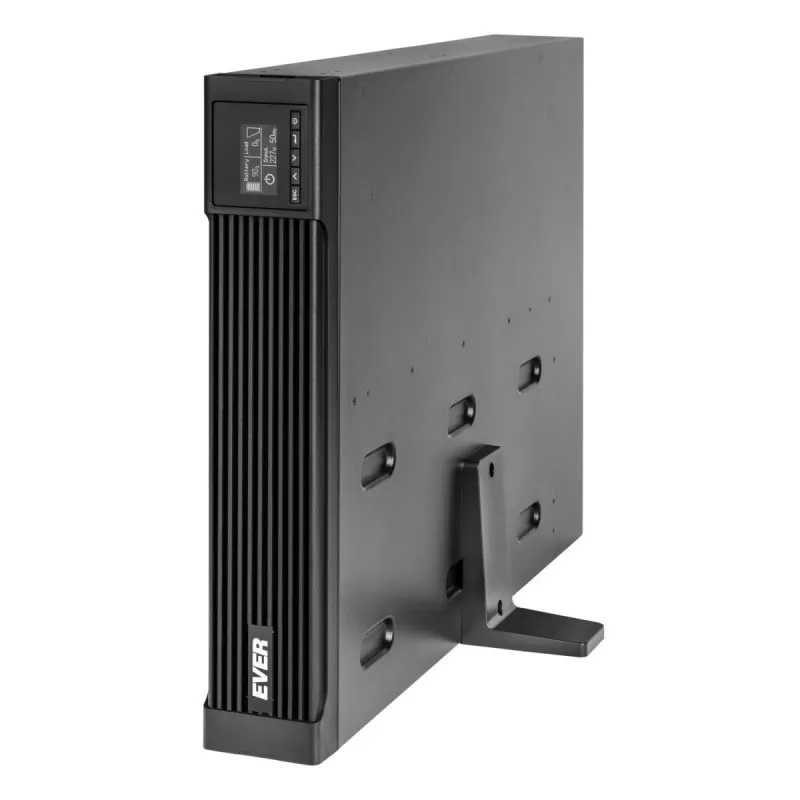

• Form factor: Rackmount / Tower
• Cooling: Active, built-in fan

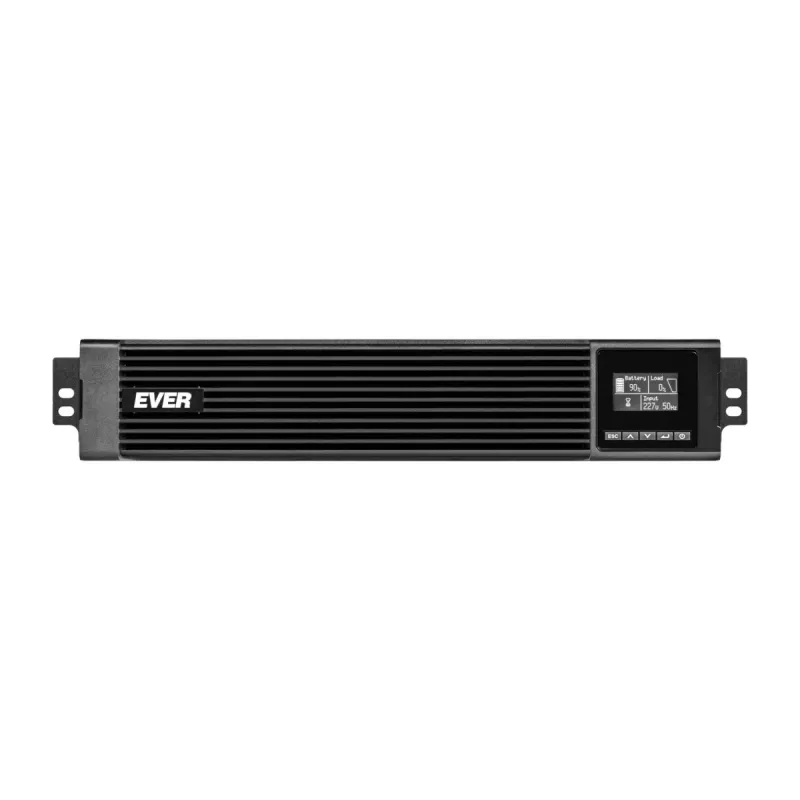

• Display: LCD

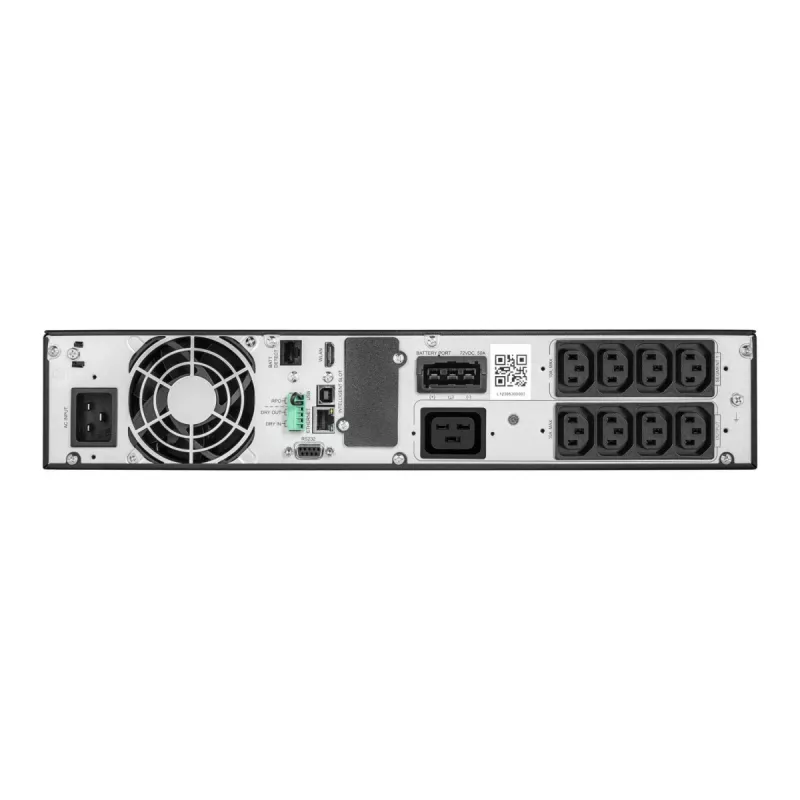

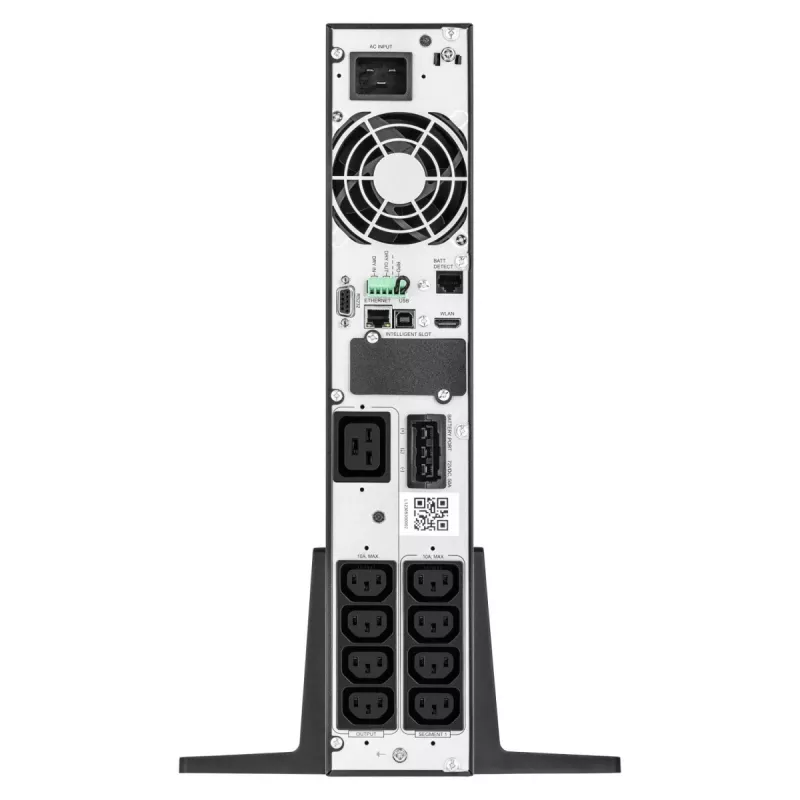

• AC outlets: 9 × C13
• Ports: USB 2.0, serial interface, Emergency Power Off (EPO)
• Battery type: Sealed Lead Acid (VRLA)
• Operating temperature: 0–40 °C
• Dimensions (W×H×D): 483 × 86 × 600 mm
• Weight: 26.8 kg

How to use

Install the UPS in a compatible rack or place it on a stable surface in tower configuration. Connect the input AC supply within the specified voltage and frequency ranges, then connect critical devices to the C13 outlets. Use the LCD to monitor status and configure settings. Connect the USB or serial interface to a management system if remote monitoring or shutdown is required. Ensure the EPO connector is installed where required by site safety procedures.

Recommendations

Do not disassemble the unit housing due to risk of electric shock. Operate the UPS in a well-ventilated area within 0–40 °C and follow manufacturer instructions for battery maintenance and replacement.
