SAI ROLINE DesignSecure 525

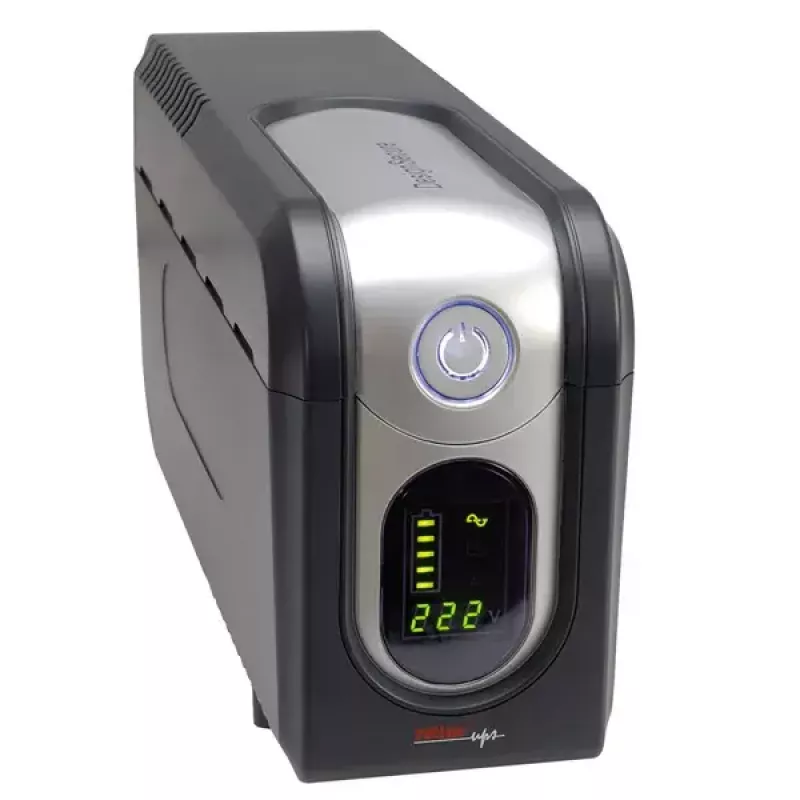

The ROLINE DesignSecure 525 is a compact line-interactive UPS designed for workstations and desktop PCs. With a rated output capacity of 0.525 kVA (315 W) it provides temporary backup power and voltage regulation via AVR. The tower-style unit in black and silver includes five C13 AC outlets, a USB port for advanced power management software, telephone/modem protection, EMI/RFI noise filtering and a digital status display. Physical dimensions are 168 x 105 x 334 mm and the UPS uses passive cooling.

Advantages

This UPS offers automatic voltage regulation (AVR) to stabilise input voltage, integrated overvoltage protection and EMI/RFI filtering to reduce electrical interference. A digital status display and included power management software via USB enable monitoring and controlled shutdowns. The compact tower design saves space while providing five AC outlets and telephone/modem surge protection.

Suitable for

• Home or small office desktop computers and workstations
• Network devices requiring short-term backup and surge protection
• Safe shutdown of equipment during short power interruptions

Key specifications

• Output power capacity: 0.525 kVA (315 W)

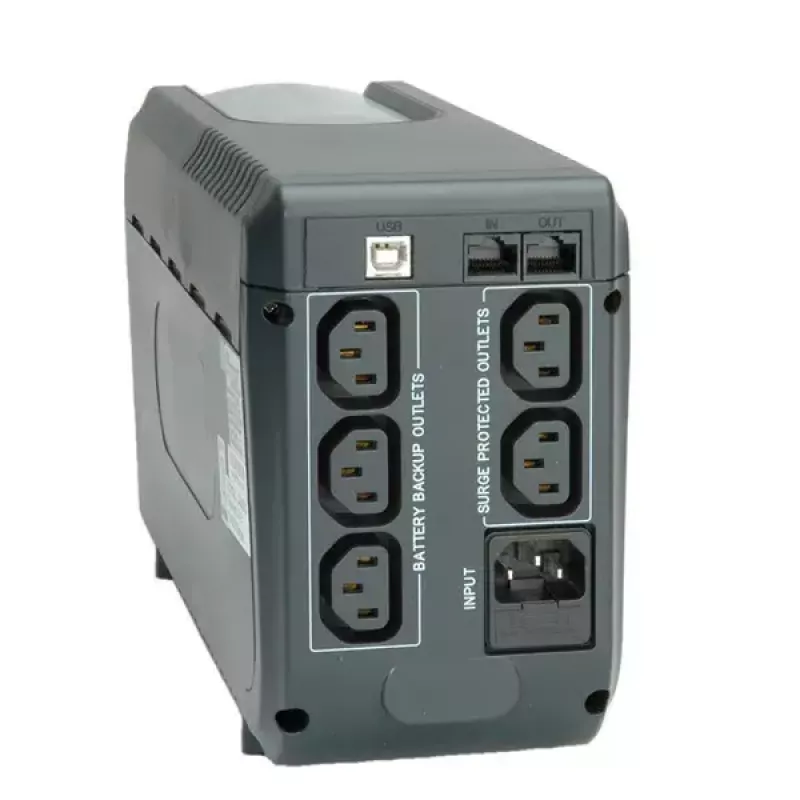

• AC outlets: 5 × C13
• Battery runtime: approx. 3 minutes at full load, 6 minutes at half load
• Ports: 1 × USB 2.0, telephone/modem protection
• Features: Line-interactive topology, AVR, EMI/RFI filter, integrated overvoltage protection, digital status display
• Dimensions (H×W×D): 168 × 105 × 334 mm
• Weight: 6.3 kg
• Colour: Black, Silver

How to use

Place the UPS on a stable, flat surface with adequate ventilation and connect critical equipment to the C13 outlets. Install the included power management software via the USB port on a connected PC to enable monitoring and configure automatic shutdown settings. Use the telephone/modem ports to protect dial-up or analog lines if applicable. Monitor the digital display for status indications and remaining battery capacity.

Recommendations

For reliable operation, keep the UPS in a dry, dust-free environment and avoid blocking ventilation. Regularly test the battery and replace it according to the manufacturer’s maintenance schedule. Connect only necessary devices to avoid exceeding the 315 W output; use the software to configure safe shutdown thresholds.
