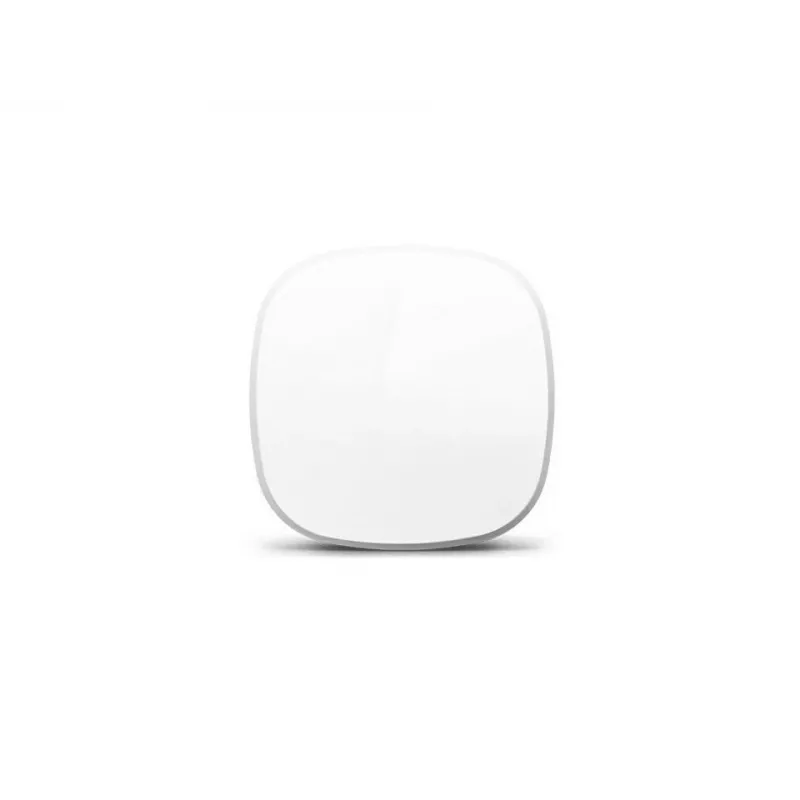

Satel AFD-200 BE WAVE detector de inundación inalámbrico ABAX 2

The Satel AFD-200 BE WAVE is a wireless flood detector designed for use with the ABAX 2 system. It provides reliable water leakage detection in residential, commercial, and industrial environments, helping to prevent costly water damage. The detector uses an external water probe with a 3-meter cable to sense the presence of water and sends an alarm signal to the control panel.

Advantages

Early detection of water leaks minimizes damage and repair costs. The wireless design allows for flexible placement without the need for wiring. Long battery life of up to 2 years reduces maintenance. The device features tamper protection against enclosure opening and detachment from the mounting surface.

Suitable for

• Basements, bathrooms, kitchens, and laundry rooms
• Server rooms and data centers
• Warehouses and storage areas
• Any location where water leakage could cause damage

Key specifications

• Wireless System: ABAX 2
• Operating Frequency: 868.0 MHz ÷ 868.6 MHz
• Power Supply: CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Wireless Range (Open Area): Up to 2000 m
• Operating Temperature Range: -10°C to +55°C
• Maximum Humidity: 93% (non-condensing)
• Detection Method: External water probe
• Probe Cable Length: 3 meters
• Alarm Indication: LED
• Tamper Protection: Enclosure opening and detachment from mounting surface
• Standby Current Consumption: 15 µA
• Maximum Current Consumption: 10 mA
• Environmental Class: II (EN 50130-5)
• Compliance: CE

Recommendations

For optimal performance, install the detector in areas prone to water leaks and ensure the probe is placed in contact with the floor. Test the system regularly and replace the battery when low.
