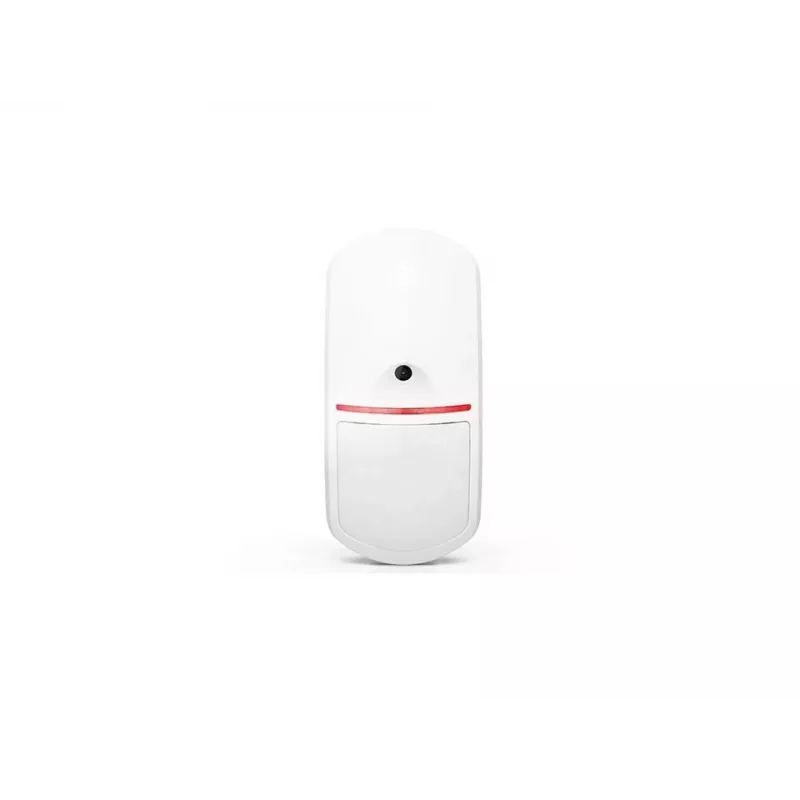

Satel APCAM-200 ABAX2 detector de movimiento PIR inalámbrico con cámara

The Satel APCAM-200 is a wireless passive infrared (PIR) motion detector with an integrated camera, designed for the ABAX 2 system. It combines reliable intrusion detection with visual verification, sending alarm images directly to the control panel. Ideal for residential and commercial security applications, this detector offers pet immunity up to 20 kg and remote firmware updates.

Advantages

Integrated camera provides visual alarm verification, reducing false alarms. Wireless ABAX 2 communication ensures easy installation and scalability. Remote firmware updates keep the device up-to-date without physical access.

Suitable for

• Home security systems
• Small business premises
• Areas requiring visual verification of alarms
• Integration with Satel ABAX 2 wireless systems

Key specifications

• Detector technology: Passive Infrared (PIR)
• Wireless system: ABAX 2 (868 MHz)
• Detection range: 15 m
• Detection angle: 90°
• Camera resolution: Up to 640x480 (VGA)
• Camera field of view: 90° horizontal
• Power supply: 1x CR123A 3V lithium battery
• Battery life: Up to 2 years
• Pet immunity: Up to 20 kg (selectable)
• Tamper protection: Enclosure opening, detachment from mounting surface
• Operating temperature: -10°C to +55°C
• Security grade: Grade 2 (EN 50131)
• Recommended mounting height: 2.4 m
• Image capture modes: Pre-alarm, Post-alarm, On-demand
• Lens type: Fresnel

Recommendations

For optimal performance, mount at 2.4 m height and avoid direct sunlight or heat sources. Use with Satel ABAX 2 control panel for full functionality.
