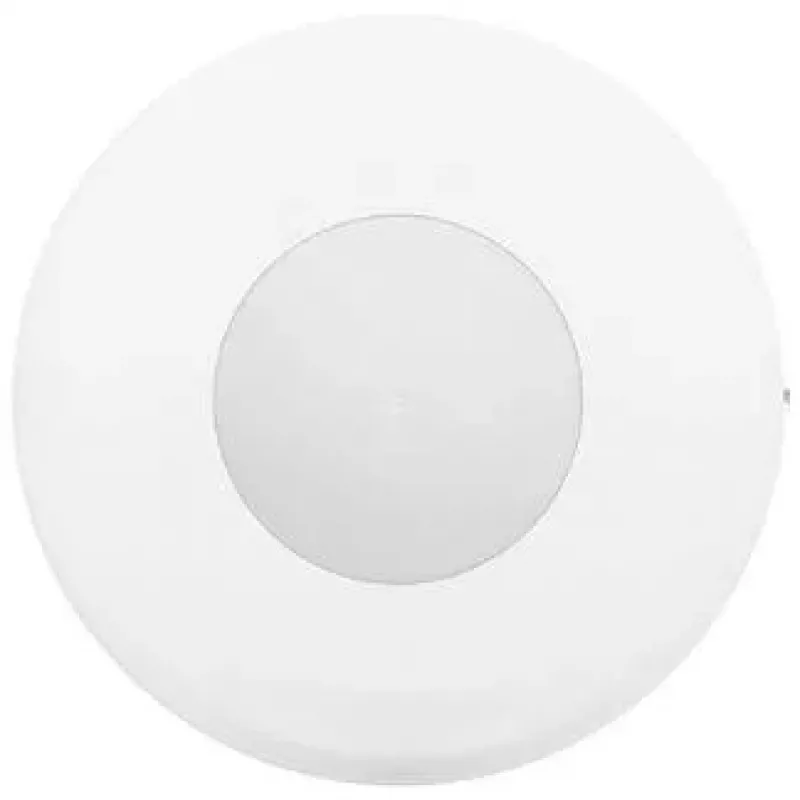

SATEL Detector de movimiento PIR inalámbrico de techo APC-200 S

The SATEL APC-200 S is a wireless ceiling-mounted passive infrared (PIR) motion detector designed for indoor security applications. Part of the ABAX 2 system, it offers 360° detection coverage with a maximum diameter of 16 meters when mounted at 3.7 meters height. The detector operates at 868 MHz and communicates with the control panel over a range of up to 2000 meters in open space (with ACU-220). It is powered by a single CR123A 3V lithium battery with a typical lifespan of up to 2 years, ensuring low maintenance. The device features tamper protection against enclosure opening, remote configuration via the ABAX 2 controller, and periodic supervision. Compliant with EN 50131 Grade 2, it is suitable for residential and commercial premises requiring reliable intrusion detection.

Advantages

Easy ceiling installation with 360° coverage eliminates blind spots. Long battery life and wireless communication reduce wiring costs. Remote configuration and supervision simplify system management. Tamper protection enhances security against sabotage.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Ceiling-mounted motion detection for open areas
• Integration with SATEL ABAX 2 wireless alarm systems

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Mounting Type: Ceiling
• Detection Coverage: 360°
• Max. Detection Diameter (at 3.7m height): 16 m
• Recommended Mounting Height: 2.4 - 3.7 m
• Wireless System: ABAX 2
• Wireless Frequency: 868 MHz
• Communication Range (open area): Up to 2000 m (with ACU-220)
• Battery Type: 1x CR123A 3V Lithium
• Battery Life (typical): Up to 2 years
• Operating Temperature Range: -10°C to +55°C
• Tamper Protection: Enclosure opening detection
• Power Consumption (standby): 25 µA
• Alarm Indication: Wireless signal to control panel
• LED Indicator: Yes (for test mode, low battery, alarm)
• Compliance: EN 50131 Grade 2
• Remote Configuration: Yes (via ABAX 2 controller)
• Supervision: Yes (periodic communication)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 to 3.7 meters in a central location. Use only CR123A lithium batteries. Pair with a compatible ABAX 2 controller (e.g., ACU-220) for full functionality.
