SATEL detector de movimiento PIR y rotura de cristal NAVY

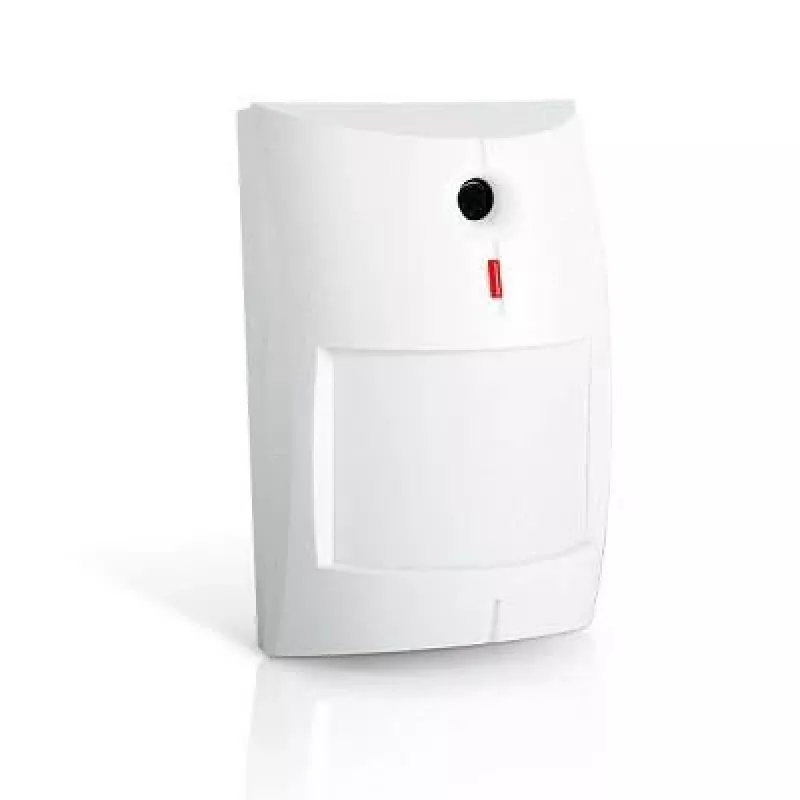

The SATEL NAVY is a dual-technology detector combining Passive Infrared (PIR) motion sensing with acoustic glass break detection. Designed for indoor use, it provides reliable perimeter and interior security for residential and commercial premises. The detector features digital signal processing for both PIR and glass break channels, reducing false alarms while ensuring high detection accuracy.

Advantages

Combines two detection methods in one unit, saving installation time and cost. Digital signal processing minimizes false alarms from environmental disturbances. Adjustable sensitivity for both PIR and glass break allows fine-tuning to specific site conditions. Tamper protection and NC relay outputs ensure compatibility with most alarm panels.

Suitable for

• Indoor security systems requiring motion and glass break detection
• Retail stores, offices, and residential buildings
• Wall or corner mounting at recommended height of 2.4 m

Key specifications

• Detector Type: PIR and Acoustic Glass Break
• PIR Detection Range: Up to 15 m, 90° angle
• Glass Break Detection Range: Up to 9 m
• Power Supply: 12 VDC (9-15 VDC)
• Current Consumption: 12 mA standby, 15 mA max
• Alarm Outputs: 2 x NC relays (PIR, Glass Break)
• Tamper Output: NC
• Operating Temperature: -10°C to +55°C
• Compliance: EN 50131 Grade 2
• Enclosure Material: ABS Plastic

Recommendations

For optimal performance, install the detector at 2.4 m height, avoiding direct sunlight and heat sources. Use with a compatible 12 VDC alarm panel supporting NC inputs. Configure EOL resistors as needed.
