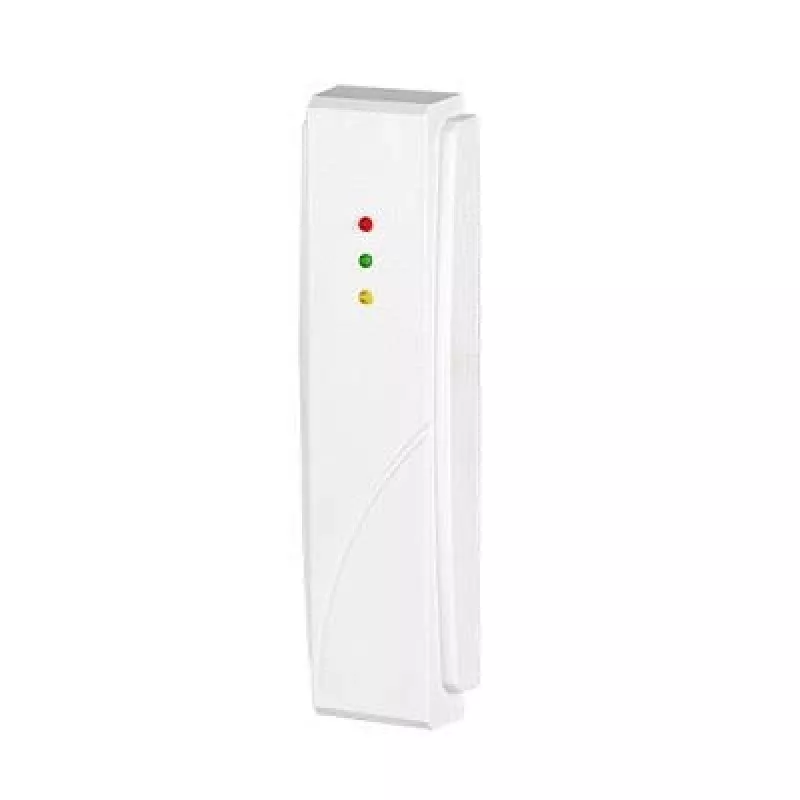

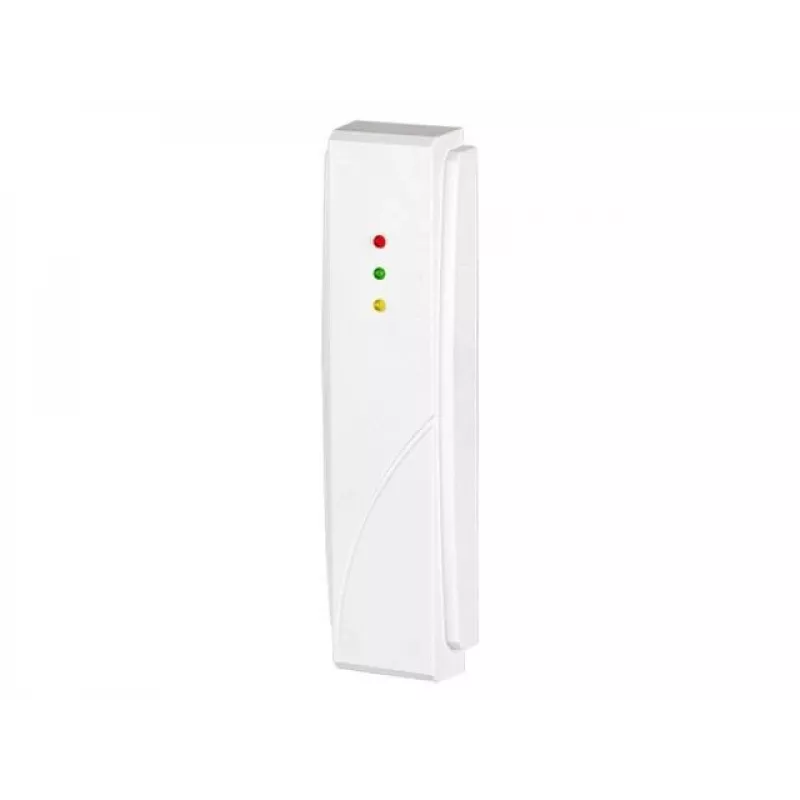

SATEL INT-CR Lector de tarjetas magnéticas blanco

The SATEL INT-CR is a professional magnetic card reader designed for use with SATEL INTEGRA and VERSA control panels. It provides secure arming/disarming and access control via magnetic stripe cards conforming to ISO 7811/2 standards. The reader features a sleek white ABS plastic enclosure suitable for surface mounting in indoor environments.

Advantages

Reliable RS-232 interface ensures seamless integration with SATEL alarm systems. Three LED indicators and an internal buzzer provide clear status feedback. Tamper protection against enclosure opening and detachment enhances security. Low power consumption (max 30 mA) and wide operating temperature range (-10°C to +55°C) make it suitable for various installations.

Suitable for

• Security system arming and disarming
• Access control in residential and commercial buildings
• Integration with SATEL INTEGRA and VERSA control panels

Key specifications

• Reader Type: Magnetic Card Reader
• Card Standard: ISO 7811/2 (Magnetic Stripe)
• Interface: RS-232
• Operating Voltage: 12 V DC (±15%)
• Max Current Consumption: 30 mA
• LED Indicators: Yes (3 LEDs)
• Buzzer: Yes
• Tamper Protection: Yes
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Enclosure Material: ABS Plastic
• Colour: White
• Mounting Type: Surface Mount
• Data Transmission Speed: 19200 bps
• Protection Rating: IP20

Recommendations

For optimal performance, use with SATEL control panels and ensure proper wiring according to the installation manual. The reader is intended for indoor use only.
