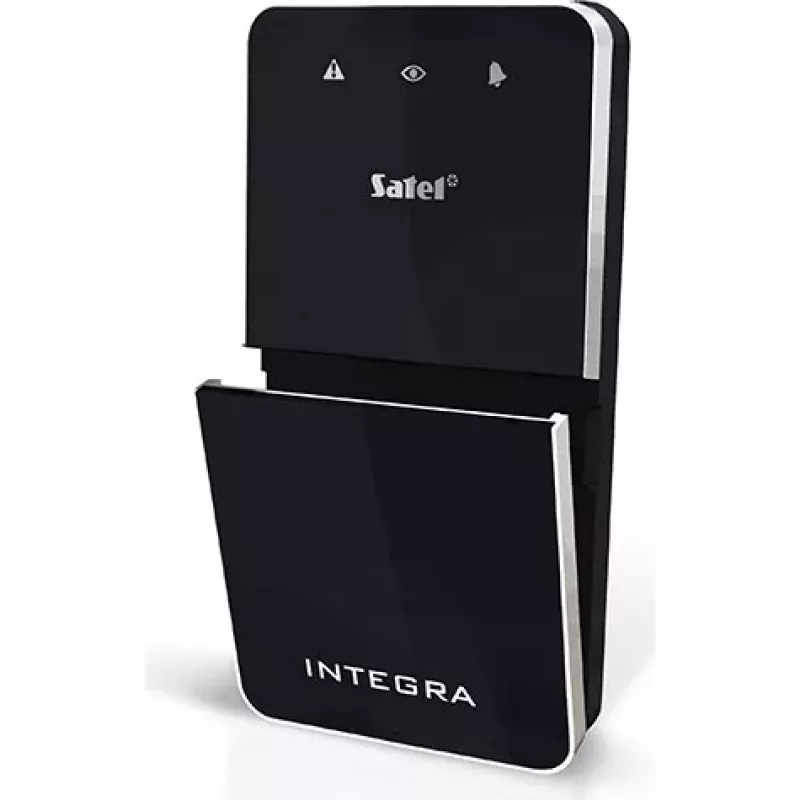

SATEL INT-SF-B Teclado LCD oscuro con lector de proximidad para centrales INTEGRA/VERSA

The SATEL INT-SF-B Dark is a professional LCD keypad designed for use with SATEL INTEGRA and VERSA control panels. It features a 2x16 character LCD display, a built-in EM 125 kHz proximity reader, and 2 programmable wired zones. The keypad includes 4 programmable function keys, system status LEDs, and a built-in buzzer for audible signaling. Its dark (black) housing is surface-mountable and includes tamper protection against opening and removal. Powered by 12 V DC with a maximum current consumption of 110 mA, it operates in temperatures from -10°C to +55°C. This keypad communicates via the SATEL bus and is ideal for security system control and monitoring.

Advantages

Integrated proximity reader for convenient arming/disarming; programmable zones and outputs for flexible system integration; clear LCD display with backlight for easy reading; tamper protection ensures security; surface-mount design simplifies installation.

Suitable for

• Security system installers and integrators
• Residential and commercial security applications
• Users requiring keypad control with proximity card support

Key specifications

• Keypad Type: LCD
• Display: 2x16 Character LCD
• Built-in Proximity Reader: Yes (EM 125 kHz)
• Programmable Wired Zones: 2
• Programmable OC Outputs: 1
• System Compatibility: SATEL INTEGRA, VERSA Control Panels
• Keypad Backlight: Yes
• Display Backlight: Yes
• Programmable Function Keys: 4
• System Status Indicators: Yes (LEDs)
• Audible Signaling: Built-in Buzzer
• Tamper Protection: Yes (Against opening and removal)
• Power Supply: 12 V DC
• Max Current Consumption: 110 mA
• Operating Temperature: -10°C to +55°C
• Housing Color: Dark (Black)
• Communication Interface: SATEL Bus
• Mounting Type: Surface Mount

Recommendations

For optimal performance, pair with SATEL INTEGRA or VERSA control panels. Ensure proper wiring and tamper protection during installation. The proximity reader supports EM 125 kHz cards; use compatible tags for access control.
