SATEL PERFECTA-64-M-SET-A Set de central de alarma híbrida

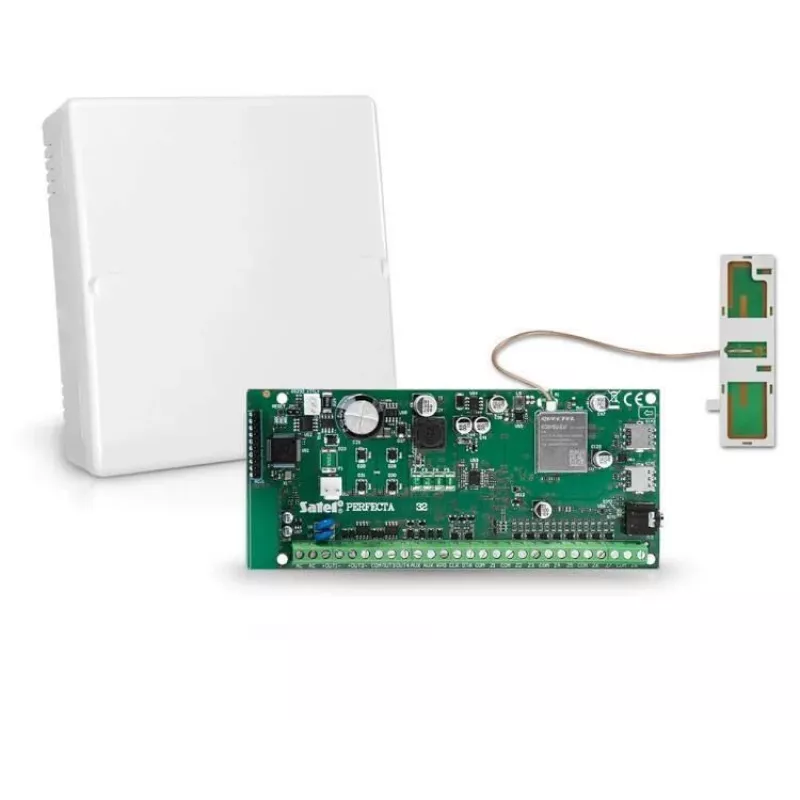

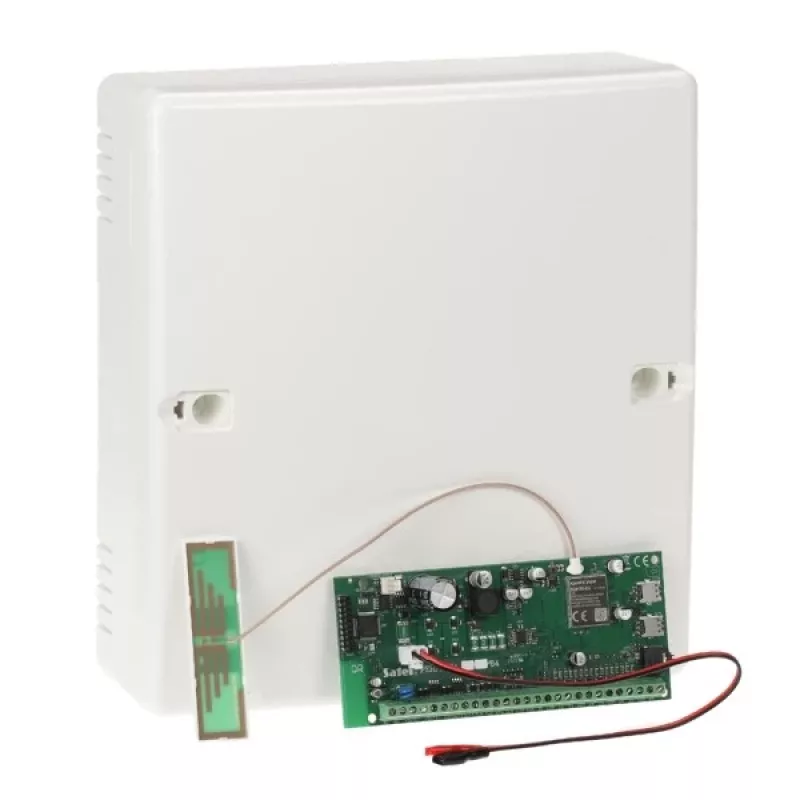

The SATEL PERFECTA-64-M-SET-A is a comprehensive hybrid alarm control panel set designed for professional security installations. This set includes the PERFECTA-64-M control panel, PRF-LCD-A LCD keypad, OPU-4 P enclosure, TR 40 VA transformer, and ANT-OBU-GSM antenna, providing a complete solution for wired and wireless alarm systems.

Advantages

This set offers flexibility with support for up to 64 wired zones and 64 outputs, expandable via modules. The built-in GSM/GPRS communicator enables remote monitoring and control via the PERFECTA CONTROL mobile app. With support for SMS, PUSH, voice messages, and CLIP notifications, users stay informed at all times. The system supports 4 partitions and 32 users, making it suitable for larger premises.

Suitable for

• Residential and commercial security installations
• Systems requiring hybrid wired/wireless expansion
• Installations needing remote access and notifications

Key specifications

• System Type: Hybrid (Wired, Wireless via expanders)
• Control Panel Model: PERFECTA-64-M
• Max. Wired Zones: 64 (8 on-board, expandable)
• Max. Wired Outputs: 64 (4 on-board, expandable)
• Partitions: 4
• Users: 32 + 1 Service User
• Communication: Built-in GSM/GPRS
• Mobile App: PERFECTA CONTROL (Android/iOS)
• Notification: SMS, PUSH, Voice Messages, CLIP
• Event Log: 3584 events
• Power Supply: 18V AC via included TR 40 VA transformer
• Battery Backup: 12V DC (battery not included)
• Security Grade: EN 50131 Grade 2
• Keypad: LCD (PRF-LCD-A)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use SATEL-compatible detectors and accessories. Ensure proper installation by a qualified technician. Battery backup is recommended for uninterrupted operation.
