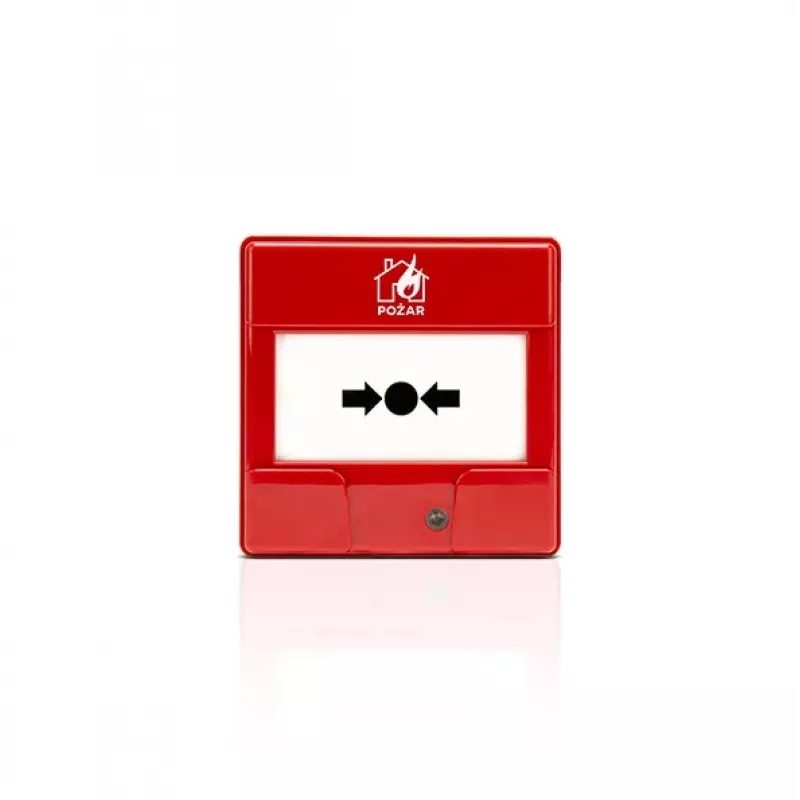

SATEL Pulsador manual direccionable ROP-400/PL, interior, rojo

The SATEL ROP-400/PL is an addressable manual call point designed for indoor use in SATEL fire alarm systems. It features a resettable press button and key reset mechanism, ensuring reliable alarm activation and easy maintenance. The device includes a built-in short-circuit isolator and LED indicators for alarm and fault status, enhancing system integrity and troubleshooting.

Advantages

Resettable activation reduces replacement costs; built-in isolator maintains system operation during faults; key reset prevents unauthorized use; LED indicators provide clear status at a glance.

Suitable for

• Indoor fire alarm systems in commercial buildings, offices, and public facilities
• Integration with SATEL addressable control panels (e.g., CSP-400 series)

Key specifications

• Device Type: Addressable Manual Call Point
• Application Environment: Indoor
• Activation Method: Press Button (Resettable)
• Reset Method: Key Reset
• Compatibility: SATEL Addressable Fire Alarm Systems
• Operating Voltage: 18 V DC - 30 V DC
• Standby Current Consumption: 0.2 mA
• Alarm Current Consumption: 0.5 mA
• Operating Temperature Range: -10°C to +55°C
• Humidity Range: 10% - 93% (non-condensing)
• IP Protection Rating: IP30
• Color: Red
• Material: ABS Plastic
• Certifications: EN 54-11, EN 54-17
• Built-in Isolator: Yes
• LED Indicators: Yes (Alarm, Fault/Short-circuit)
• Mounting Type: Surface Mount
• Terminal Type: Screw Terminals

Recommendations

For optimal performance, pair with SATEL addressable control panels and follow local fire safety regulations. Ensure proper key reset access for authorized personnel only.
