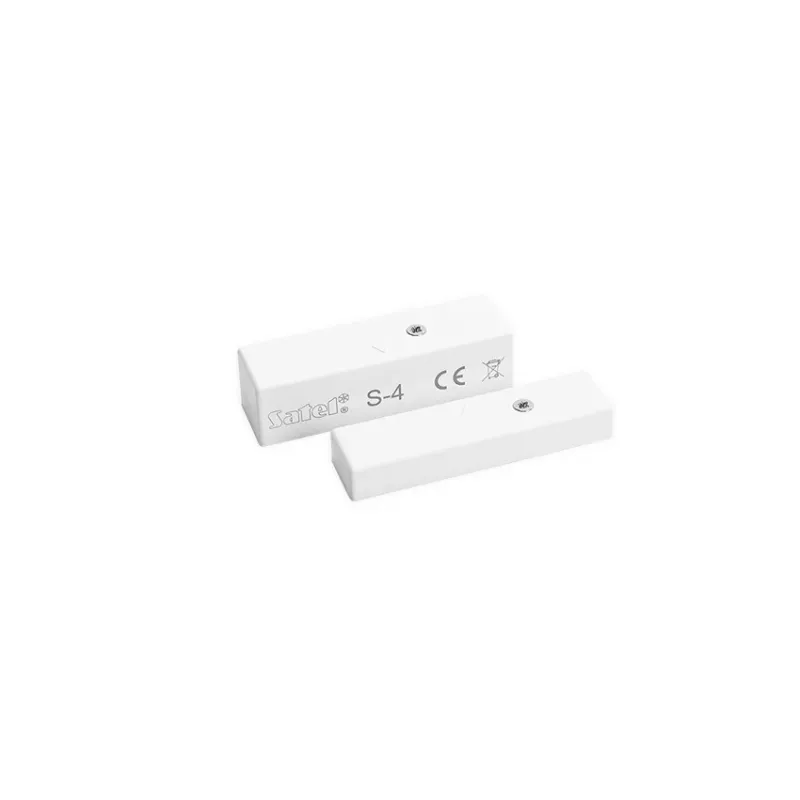

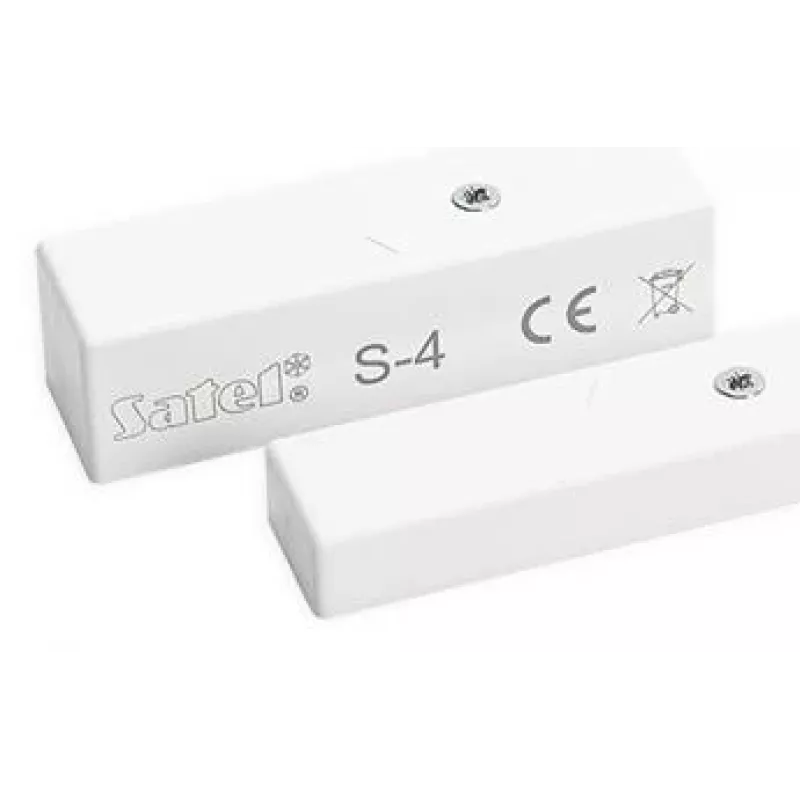

SATEL S-4 Contacto magnético de superficie con protección antisabotaje

The SATEL S-4 is a professional-grade surface-mounted magnetic contact sensor designed for reliable door, window, and gate monitoring in security systems. Featuring a reed switch with normally closed (NC) contact and integrated tamper protection, it ensures robust detection and tamper alerting. The sensor is wired with 4-wire connection (1.5 m cable for main contact and 1.5 m for tamper loop) and operates with a gap of up to 20 mm. Its ABS plastic housing with IP44 rating makes it suitable for indoor and outdoor use in temperatures from -10°C to +55°C.

Advantages

Reliable magnetic contact detection with NC output ensures fail-safe operation. Integrated tamper protection prevents bypass attempts. Surface mounting simplifies installation on various surfaces. Durable ABS housing with IP44 rating withstands environmental conditions. Long cable length (1.5 m each for contact and tamper) provides flexibility in wiring.

Suitable for

• Monitoring doors and windows in residential and commercial security systems
• Gate position detection
• Integration with SATEL alarm control panels and other compatible security systems

Key specifications

• Sensor Type: Magnetic Contact (Reed Switch)
• Mounting Type: Surface-Mounted
• Contact Type: Normally Closed (NC) with magnet present
• Tamper Protection: Yes (NC loop)
• Max Switching Voltage: 20 V DC
• Max Switching Current: 20 mA
• Max Switching Power: 3 W
• Operating Gap: Up to 20 mm
• Cable Length (Main Contact): 1.5 m
• Cable Length (Tamper Loop): 1.5 m
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: -10°C to +55°C
• Ingress Protection (IP) Rating: IP44
• Connection Type: Wired (4-wire)

Recommendations

For optimal performance, ensure the magnet and sensor are aligned within 20 mm gap. Use with SATEL alarm panels for seamless integration. Suitable for both indoor and outdoor applications where IP44 protection is sufficient.
