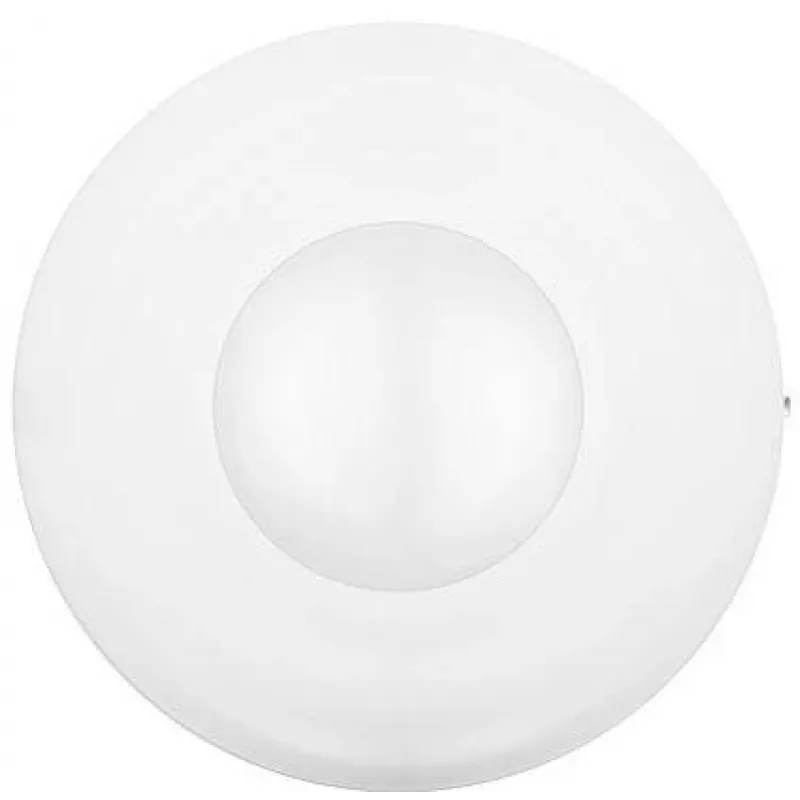

SATEL SLIM-S-PIR-PRO Detector de movimiento PIR de techo

The SATEL SLIM-S-PIR-PRO is a professional-grade ceiling-mounted passive infrared (PIR) motion detector designed for indoor security applications. With a sleek, low-profile design, it offers reliable detection with a range of 15 m x 24 m and a 90° angle, making it ideal for large rooms, corridors, and open spaces.

Advantages

Advanced digital signal processing (DSP) ensures high immunity to false alarms, while pet immunity up to 20 kg allows safe use in homes with pets. The detector features 4-level sensitivity adjustment, digital temperature compensation, and alarm memory for enhanced security management.

Suitable for

• Indoor security systems in residential and commercial buildings
• Ceiling mounting for wide-area coverage
• Integration with SATEL alarm panels and other security systems

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Detection Range: 15 m x 24 m
• Detection Angle: 90°
• Recommended Mounting Height: 2.4 m
• Pet Immunity: Up to 20 kg
• Power Supply Voltage: 12 V DC (±15%)
• Current Consumption (Standby): 10 mA
• Maximum Current Consumption: 12 mA
• Alarm Output Type: NC (Normally Closed) Relay
• Tamper Protection: Yes (Cover Opening, Wall Detachment)
• Digital Signal Processing (DSP): Yes
• Temperature Compensation: Digital
• Sensitivity Adjustment: 4 Levels
• EOL Resistor Support: 2EOL/NC, 3EOL/NC
• Security Grade: Grade 2 (EN 50131-2-2)
• Environmental Class: II (EN 50130-5)
• Operating Temperature Range: -10°C to +55°C
• Alarm Signaling: LED Indicator
• Alarm Memory: Yes
• Application: Indoor

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m and ensure the area is free from obstructions. Compatible with SATEL alarm panels and other security systems supporting NC alarm inputs.
