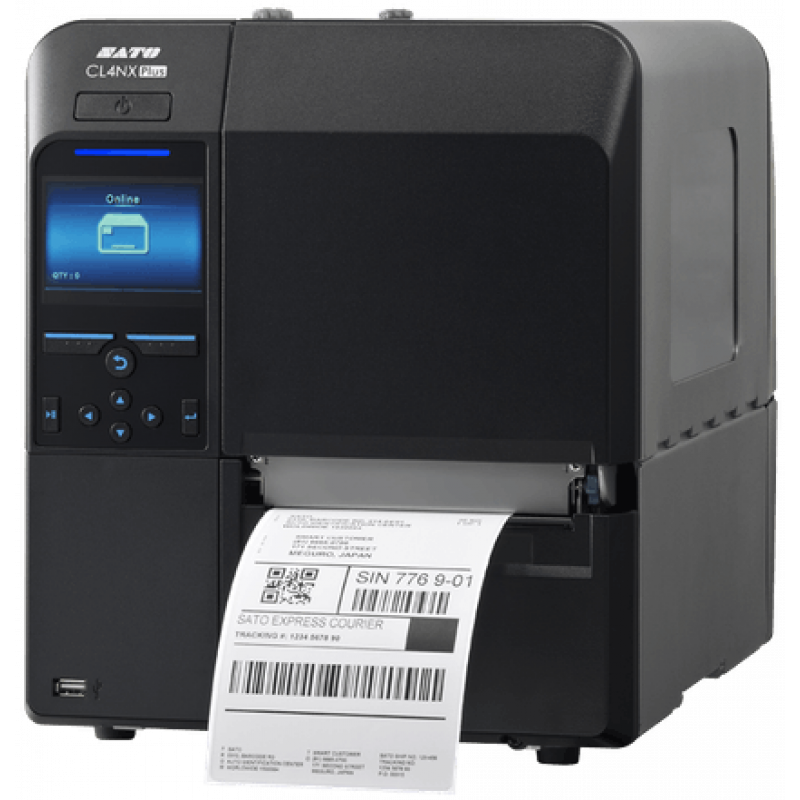

SATO CL4NX Plus - Térmica directa/transferencia térmica - Impresora POS - 203 x 203 DPI - 14 ips - 355 mm/s - 0,06 - 0,268 mm (WWCLP102ZWANEU)

The SATO CL4NX Plus sets a new benchmark in industrial label printing with its robust die-cast aluminum frame and high-speed 14 ips output. Unlike conventional desktop printers, it combines direct thermal and thermal transfer capabilities in one rugged unit, ensuring crisp 203 dpi labels even in demanding 24/7 environments. The 3.5-inch full-color LCD with intuitive menu makes operation effortless, while auto-detecting printer languages (SATO, ZPL, DPL, IPL, TPL) simplifies integration into existing workflows.

Highlights

• High-speed printing up to 14 ips (355 mm/s) for maximum throughput
• Dual-mode: Direct thermal and thermal transfer for versatile media compatibility
• Wide media width range: 22 mm to 128 mm, including fanfold and roll media
• Large 600 m ribbon capacity reduces downtime for ribbon changes
• Standard connectivity: USB, Ethernet, RS-232C, IEEE1284, and external I/O
• Optional Bluetooth 3.0, NFC, and WLAN for flexible wireless integration
• Durable die-cast aluminum construction withstands harsh industrial environments
• Auto-detect printer emulations: SATO, ZPL, DPL, IPL, TPL
• 2 GB ROM and 256 MB RAM for storing large label formats and graphics

In daily use

Operators will appreciate the CL4NX Plus's tool-less maintenance: the print head and platen roller can be replaced in seconds without special tools. The 3.5-inch color LCD provides clear status indicators and easy navigation, reducing training time. With a maximum print length of 2500 mm, it handles everything from small shipping labels to long chemical drum labels. The adjustable media sensor ensures accurate label positioning on a variety of materials, from thin paper to thick polyester tags.

Full specifications

• Print technology: Direct thermal / thermal transfer
• Print resolution: 203 dpi (8 dots/mm)
• Maximum print speed: 355 mm/s (14 ips)
• Maximum print width: 104 mm (4.09 inches)
• Maximum print length: 2500 mm (98.4 inches)
• Media width range: 22 - 128 mm (0.87 - 5.04 inches)
• Media thickness range: 0.06 - 0.268 mm (0.002 - 0.011 inches)
• Maximum media roll diameter: 220 mm (8.6 inches)
• Ribbon length: 600 m
• Ribbon width range: 39.5 - 128 mm (1.56 - 5.04 inches)
• Standard interfaces: USB 2.0 (Type A & B), Ethernet (10/100 Mbps), RS-232C, IEEE1284, External I/O
• Optional interfaces: Bluetooth 3.0, NFC, WLAN
• Memory: 2 GB ROM, 256 MB RAM
• Display: 3.5-inch full color LCD
• Printer emulations: SATO (Standard), ZPL, DPL, IPL, TPL (auto-detect)
• Barcode symbologies: 1D (UPC-A/E, EAN-8/13, Code 39, Code 128, etc.), 2D (QR Code, Data Matrix, PDF417, etc.)
• Housing: Die-cast aluminum frame, metal casing

Final note

For mission-critical labeling in manufacturing, logistics, and healthcare, the SATO CL4NX Plus delivers unmatched reliability and performance. Its rugged design and advanced features ensure consistent, high-quality labels with minimal downtime, making it a smart long-term investment for any operation.
