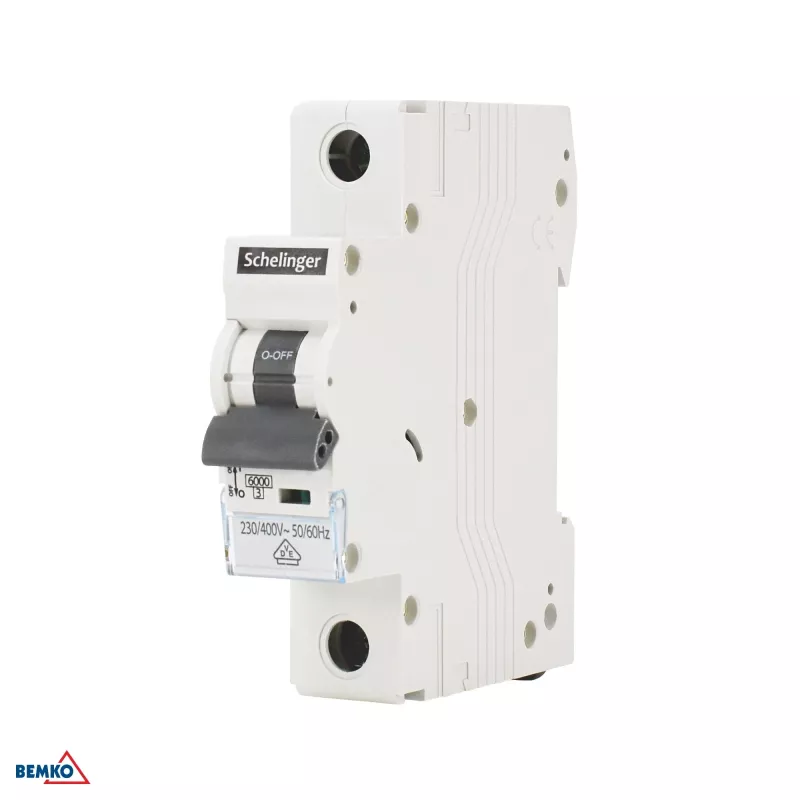

Schelinger A02-G8-1P-B06 interruptor automático unipolar 6A, tipo B, 6kA, carril DIN

Among miniature circuit breakers, the Schelinger A02-G8-1P-B06 stands out with its VDE certification and 6 kA breaking capacity in a compact single-module design. This 1-pole MCB is engineered for reliable protection of residential and light commercial circuits against overload and short-circuit currents, with a rated current of 6 A and a Type B tripping curve that responds quickly to moderate inrush loads. The screw terminal connection and DIN rail mounting make installation straightforward in standard distribution boards.

Highlights

• Rated current: 6 A, single pole (1P)
• Tripping curve: Type B (3-5 In magnetic trip)
• Short-circuit breaking capacity: 6 kA at 230 V AC
• Complies with VDE and EN 60898-1 standards
• Compact width: 1 module (17.5 mm)
• DIN rail (TH35) mounting for quick installation
• Screw terminals accept conductors up to 25 mm²
• Clear ON/OFF position indicator

In daily use

This MCB is ideal for protecting lighting circuits, socket outlets, and small appliances where a 6 A current rating is sufficient. The Type B curve ensures immediate tripping on short circuits while tolerating normal inrush currents from LED drivers or small motors. The robust construction supports over 20,000 mechanical operations and 10,000 electrical cycles, ensuring long-term reliability. The IP20 terminal protection and IP40 enclosure rating provide adequate safety for indoor installations.

Full specifications

• Device type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current: 6 A
• Tripping curve: Type B
• Short-circuit breaking capacity: 6 kA
• Rated voltage (AC): 230 V
• Frequency: 50/60 Hz
• Mounting type: DIN rail (TH35)
• Standard compliance: VDE, EN 60898-1
• Protection degree: IP20 (terminals), IP40 (enclosure)
• Terminal capacity: 1-25 mm² (solid/stranded)
• Electrical endurance: ≥ 10,000 cycles
• Mechanical endurance: ≥ 20,000 cycles
• Operating temperature range: -25°C to +55°C
• Energy limiting class: Class 3
• Connection type: Screw terminals
• Modular width: 1 module (17.5 mm)
• Overload protection: Yes
• Short-circuit protection: Yes
• Indicator: ON/OFF position

Final note

For reliable circuit protection in a space-saving format, the Schelinger A02-G8-1P-B06 delivers certified performance and easy installation, making it a practical choice for electricians and panel builders.
