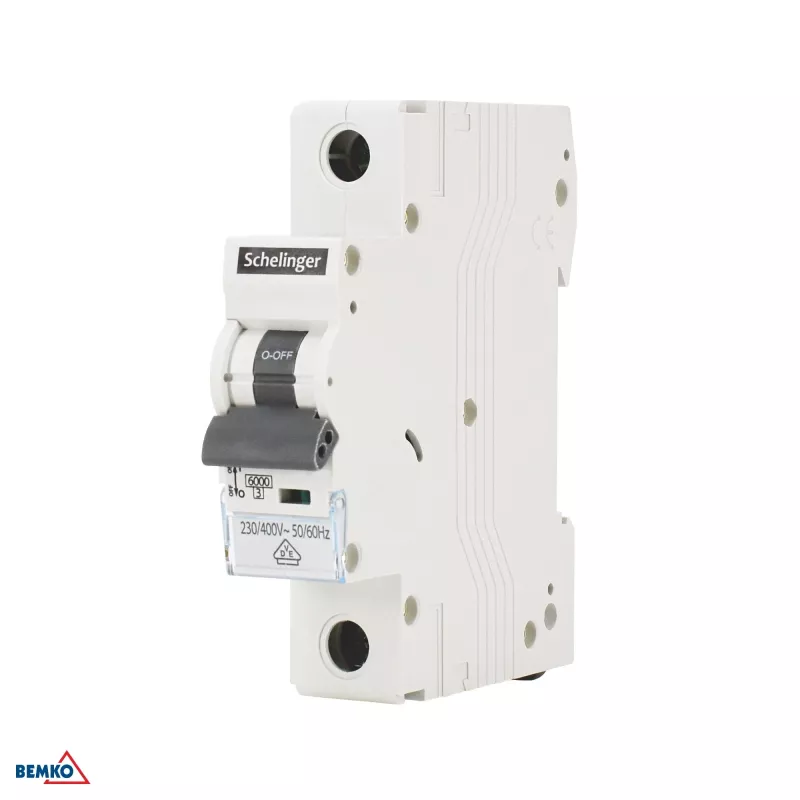

Schelinger A02-G8-1P-B25 interruptor automático unipolar 25A 6kA curva B

With a 6 kA short-circuit breaking capacity and 25 A rated current, the Schelinger A02-G8-1P-B25 delivers robust overcurrent protection for residential and light commercial circuits. Its B-curve tripping ensures fast response to short circuits while tolerating normal inrush currents, and the 1-pole design fits standard DIN rails for straightforward installation.

Overview

The Schelinger A02-G8-1P-B25 is a miniature circuit breaker (MCB) engineered to protect single-phase circuits against overloads and short circuits. It complies with IEC/EN 60898-1 and carries VDE and CE certifications, confirming its safety and performance. The breaker is designed for 230 V AC systems at 50/60 Hz and mounts on a 35 mm DIN rail, making it compatible with most distribution boards. Screw terminals accept conductors from 1 to 25 mm², providing flexibility for various wiring configurations.

What stands out

• High 6 kA breaking capacity for reliable fault interruption
• B-curve tripping ideal for general-purpose circuits with moderate inrush
• VDE and CE certified for assured quality and compliance
• Wide terminal capacity up to 25 mm² for solid or stranded conductors
• Clear ON/OFF position indicator for quick status verification
• Durable construction with 10,000 electrical and 20,000 mechanical cycles

Technical details

• Number of poles: 1P (1-pole)
• Rated current (In): 25 A
• Tripping curve: B
• Short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Standard compliance: IEC/EN 60898-1
• Certifications: VDE, CE
• Terminal capacity: 1-25 mm² (solid/stranded)
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Protection degree: IP20
• Operating temperature range: -25°C to +55°C
• Energy limiting class: 3
• Connection type: Screw terminals
• Overvoltage category: III
• Pollution degree: 2
• Indication: ON/OFF position indicator

Our verdict

The Schelinger A02-G8-1P-B25 is a dependable choice for protecting 25 A circuits. Its VDE certification, high breaking capacity, and robust build make it suitable for both new installations and replacements. Whether for lighting, socket outlets, or small appliances, this MCB offers consistent performance and easy installation.
