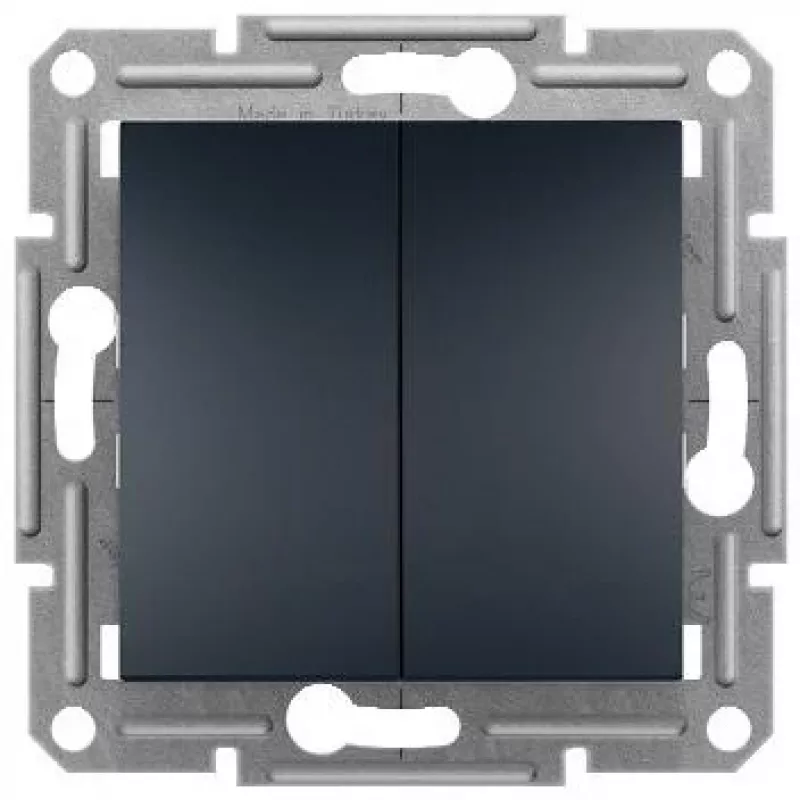

Schneider Asfora mecanismo conmutador doble antracita EPH0600371

The Schneider Asfora EPH0600371 is a high-quality double two-way switch mechanism designed for staircase and multi-point lighting control. This flush-mounting switch mechanism features a sleek anthracite finish, making it a perfect choice for modern interiors. It is part of the renowned Asfora series, known for its reliability and elegant design.

Advantages

This double two-way switch allows control of a single light from two or more locations, ideal for staircases, long hallways, or large rooms. The screw terminals ensure secure and easy wiring, while the robust ABS and PC materials guarantee long-lasting performance. With a rated current of 10 AX and voltage of 250 V AC, it handles standard residential loads efficiently.

Suitable for

• Staircase lighting control
• Hallways and corridors
• Large rooms with multiple entry points
• Residential and commercial installations

Key specifications

• Product Type: Double Two-Way Switch Mechanism
• Series: Asfora
• Color: Anthracite
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Number of Gangs: 2
• Mounting Type: Flush Mounting
• Connection Type: Screw Terminals
• IP Protection Rating: IP20
• Material: ABS (Cover), PC (Base)
• Terminal Capacity: 2 x 2.5 mm²
• Standards: IEC 60669-1
• Operating Temperature: -5 to 40 °C
• Relative Humidity: 0 to 95 %
• Dielectric Strength: >2000 V
• Electrical Lifetime: 10000 cycles
• Mechanical Lifetime: 20000 cycles

Recommendations

For a complete installation, pair this mechanism with a compatible Schneider Asfora frame (sold separately). Ensure proper wiring by a qualified electrician. This product is designed for indoor use only.
