Schneider comprobador de presión de neumáticos RM sin calibrar (DGKD040011)

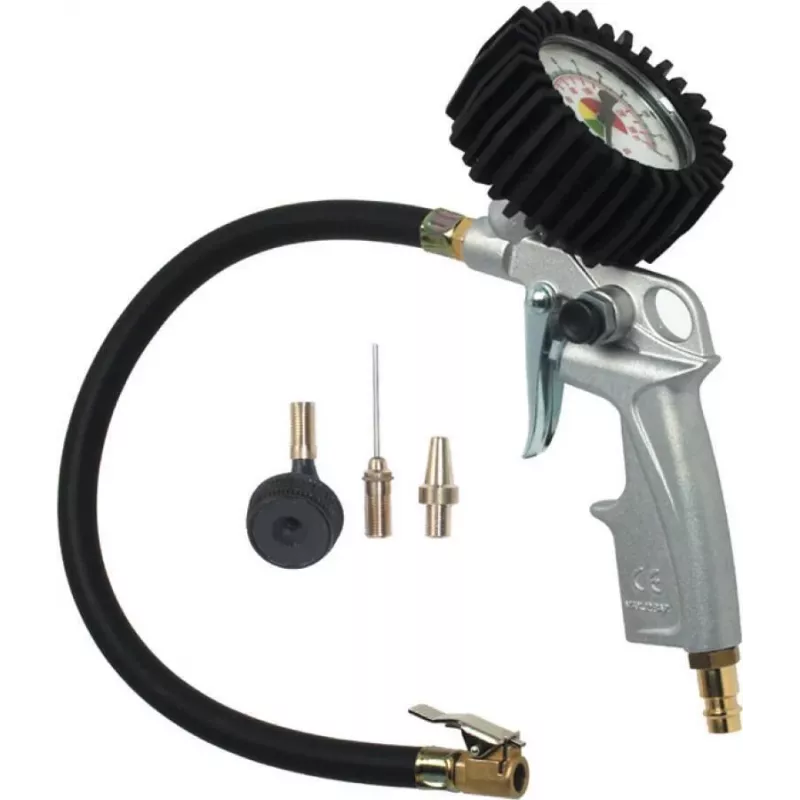

The Schneider RM uncalibrated tire inflator gauge combines inflation and pressure measurement in one analog instrument. Unlike digital models that depend on batteries, this gauge works purely mechanically and is always ready for use in the workshop or at home.

Highlights

• Analog gauge with 63 mm diameter for clear reading
• Measurement range 0 - 10 bar
• 400 mm hose with standard car valve connector (Schrader)
• Euro quick coupling NW 7.2 for compressed air connection
• Impact-resistant plastic housing
• Ergonomic handle
• Uncalibrated version (not for official measurement)

In daily use

The gauge is connected to a compressed air system via the Euro quick coupling. The valve connector is attached to the tire valve, and the current pressure is shown on the analog display. Inflation and measurement can be carried out in one step. The 400 mm hose provides sufficient reach, and the ergonomic handle ensures a secure grip.

Full specifications

• Measurement range: 0 - 10 bar
• Gauge type: Analog
• Gauge diameter: 63 mm
• Hose length: 400 mm
• Valve connection: Standard car valve connector (Schrader)
• Air inlet connection: Euro quick coupling NW 7.2
• Calibration status: Uncalibrated (ungeeicht)
• Housing material: Impact-resistant plastic
• Display units: Bar

Final note

The uncalibrated version is intended for general tire inflation and pressure checking, not for official or legally binding measurements.
