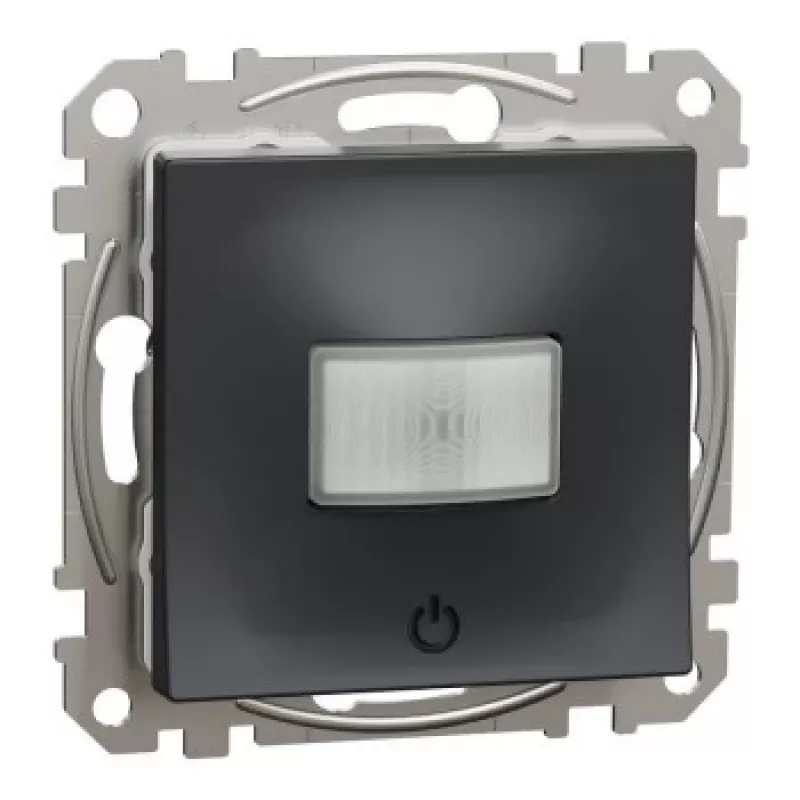

Schneider Electric Multiwire PIR160+ regulador de intensidad LED 200W antena Zigbee

The Schneider Electric Multiwire PIR160+ LED Dimmer 200W ZB ANT is a smart dimmer module designed for seamless integration into the Wiser Home System. It combines a passive infrared (PIR) presence detector with a leading/trailing edge dimmer, enabling intelligent lighting control based on occupancy and ambient light. With Zigbee 3.0 connectivity, it offers reliable wireless communication and can be controlled via the Wiser Home app, voice assistants, or a standard push-button.

Advantages

This dimmer module simplifies energy management by automatically adjusting lighting based on presence and daylight. It supports both 2-wire (no neutral) and 3-wire (with neutral) installations, making it suitable for retrofit and new builds. The soft start/stop function extends LED lifespan, while overload, short-circuit, and over-temperature protection ensure safe operation.

Suitable for

• Residential and commercial lighting control
• Retrofit installations where neutral wire is not available
• Integration with Schneider Electric Wiser Home System
• Zigbee 3.0 certified gateways and smart home hubs

Key specifications

• Product Type: Smart Dimmer Module with PIR sensor
• Connectivity: Zigbee 3.0
• Max LED Load: 200 W
• Max Incandescent/Halogen Load: 400 W
• Input Voltage: 230 V AC, 50 Hz
• Wiring: 2-wire (no neutral) or 3-wire (with neutral)
• Dimming: Trailing Edge (RC) / Leading Edge (RL), 0-100%
• Mounting: Flush-mounted (standard wall box)
• IP Rating: IP20
• Operating Temperature: 0 to 40 °C
• Standby Power: < 0.5 W

Recommendations

For optimal performance, pair with Schneider Electric Wiser Hub and use compatible LED lamps. Ensure proper ventilation in the wall box to avoid overheating. Professional installation is recommended.
