SCHROFF set de ruedas con patas niveladoras, 400 kg de carga, ruedas de 60 mm, pack de 4 27230068

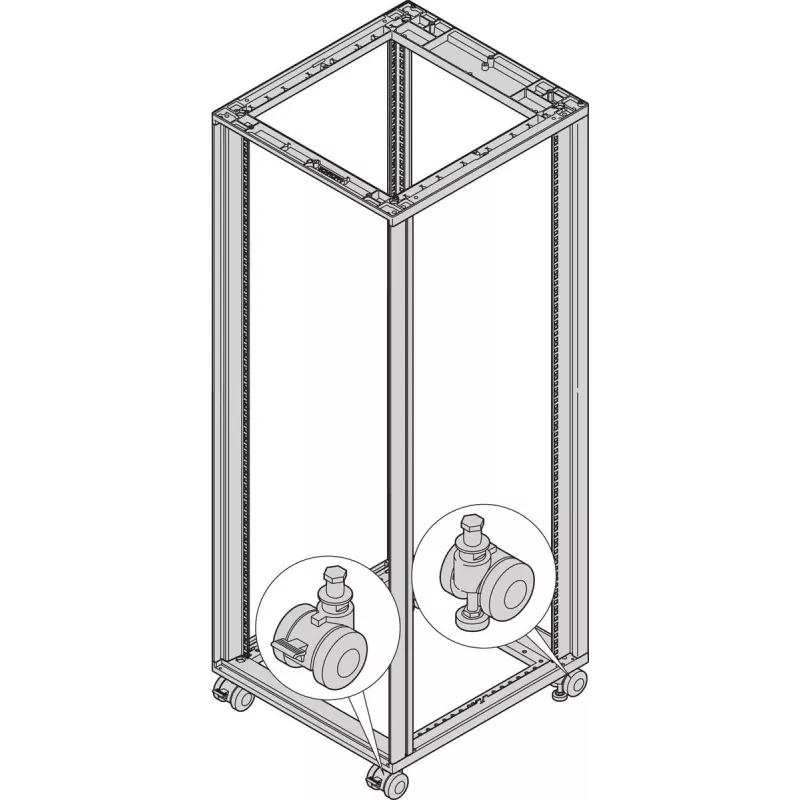

In busy data centers and industrial workshops, heavy server racks and enclosures often need to be repositioned for maintenance, cleaning, or layout changes. The SCHROFF 27230068 caster set with integrated leveling feet makes that task straightforward. Each set includes four swivel casters with 60 mm polyamide wheels, two of which have locking brakes, and each caster features an integrated leveling foot with up to 15 mm of height adjustment. With a total load capacity of 400 kg, this set is built for Varistar, Novastar, EuropacPRO, and other compatible SCHROFF cabinets.

Key specifications

• Total load capacity: 400 kg across four casters
• Wheel diameter: 60 mm, made of durable polyamide (PA)
• Two swivel casters with integrated locking brakes for secure positioning
• Integrated leveling feet with up to 15 mm adjustment range
• Galvanized steel housing for corrosion resistance
• Bolt-on mounting with M12 thread
• Overall installation height: approx. 95 mm (min) to 110 mm (max)
• Colour: black wheels, silver housing

Why choose it

This caster set combines mobility and stability. The swivel design allows smooth movement in any direction, while the locking brakes and leveling feet ensure the cabinet stays exactly where you need it, even on uneven floors. The galvanized steel housing withstands demanding environments, and the polyamide wheels protect floor surfaces while rolling quietly.

Ideal use cases

• Mobile mounting for server racks in data centers
• Industrial enclosures that require occasional repositioning
• Laboratory equipment cabinets needing precise leveling
• Telecommunications racks in technical rooms

Good to know

Installation is straightforward using the M12 threaded bolts. The leveling feet can be adjusted after the cabinet is in place to compensate for floor irregularities. For safety, always engage the brakes on the two locking casters when the cabinet is stationary. This set is designed specifically for SCHROFF cabinets; check compatibility with your model before ordering.
