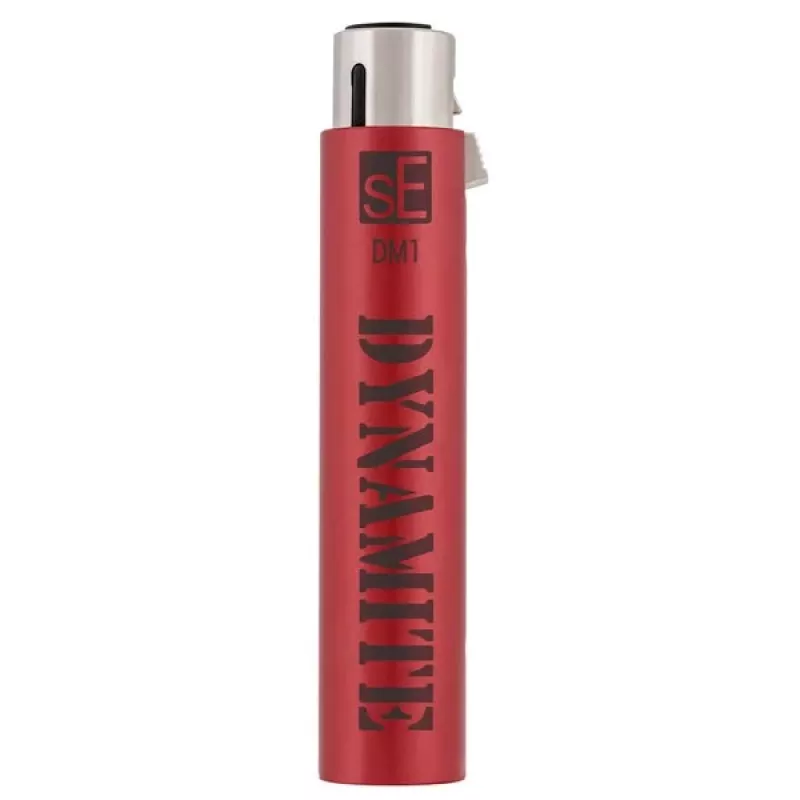

SE ELECTRONICS sE DM1 Dynamite preamplificador de micrófono activo en línea

The sE DM1 Dynamite is a compact, high-performance active inline microphone preamplifier designed to boost the signal of dynamic and passive ribbon microphones without adding noise or coloration. With a fixed +28 dB gain, ultra-low noise floor, and Class A circuit design, it delivers pristine audio quality in a rugged all-metal chassis. Ideal for studio and live applications, the DM1 Dynamite connects directly between your microphone and mixer or audio interface, requiring 48V phantom power.

Advantages

• Transparent +28 dB gain with minimal distortion (THD+N 0.002%)
• Ultra-low noise (EIN 9 dB A-weighted) for clean signal amplification
• Compact and rugged design fits easily in any setup
• Compatible with dynamic and passive ribbon microphones
• No external power supply needed; powered by standard 48V phantom power

Suitable for

• Studio recording with dynamic microphones (e.g., SM57, SM58)
• Boosting low-output ribbon microphones
• Live sound reinforcement where extra gain is needed
• Broadcast and podcasting applications

Key specifications

• Preamp Type: Active Inline
• Gain: +28 dB (Fixed)
• Frequency Response: 10 Hz - 120 kHz (-0.3 dB)
• Input Impedance: 135 Ohms
• Output Impedance: 135 Ohms
• Phantom Power Requirement: 48V DC
• Connectors: XLR Female (Input), XLR Male (Output)
• Equivalent Input Noise (EIN): 9 dB (A-weighted)
• Max Output Level: 12.5 dBV
• THD+N: 0.002% @ 1kHz
• Dynamic Range: 120 dB
• Recommended Load Impedance: >1k Ohms
• Circuit Design: Class A
• Housing Material: All-metal chassis

Recommendations

For best results, use with a high-quality XLR cable and ensure your mixer or interface provides clean 48V phantom power. The DM1 Dynamite is an excellent choice for improving the signal-to-noise ratio of dynamic microphones in critical recording situations.
