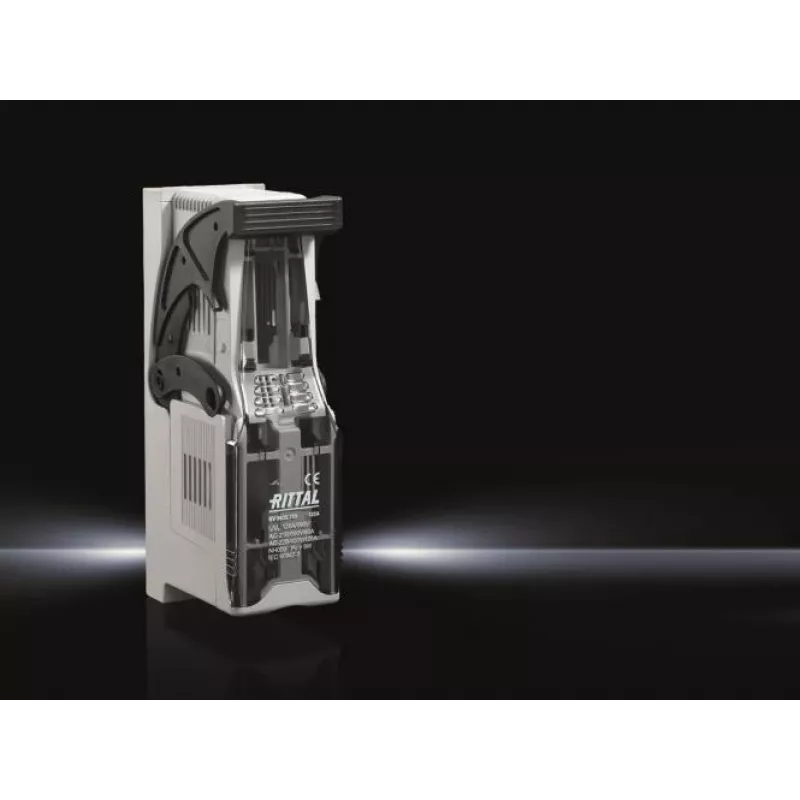

Seccionador portafusibles NH Rittal RiLine Compact SV 9635700 tamaño 000, unipolar

Rittal RiLine Compact SV 9635700 NH fuse load disconnector Size 000, single-pole is designed for compact busbar distribution systems where NH fuse protection and clear load disconnection are required. The device integrates into compact switchgear and control cabinet layouts to provide a straightforward means of isolating circuits for maintenance and fault clearance. It is intended for use with NH fuse links and is configured as a single-pole unit compatible with Size 000 installations.

Advantages

The load disconnector offers reliable isolation and fuse accommodation in a compact footprint suitable for dense panel arrangements. Its single-pole design simplifies wiring and reduces the space needed on a compact busbar. Built to integrate with modular distribution systems, it supports safe maintenance procedures and rapid fault clearing while keeping installation complexity to a minimum.

Suitable for

Key specifications

How to use

Install the device onto the compact busbar system according to the switchgear manufacturer's mounting instructions and wiring diagrams. Fit the appropriate NH fuse link for the required protection level and secure electrical connections following applicable standards and safety procedures. Use the disconnector to isolate the circuit before performing maintenance or when clearing faults; verify that the circuit is de-energized with appropriate testing equipment before work begins.

Recommendations

Ensure selection of the correct NH fuse link rating for the protected circuit and confirm mechanical compatibility with the busbar system. Regularly inspect connections and the condition of fuses, and follow local electrical codes for installation, locking-out/tagging-out, and safe working practices.
