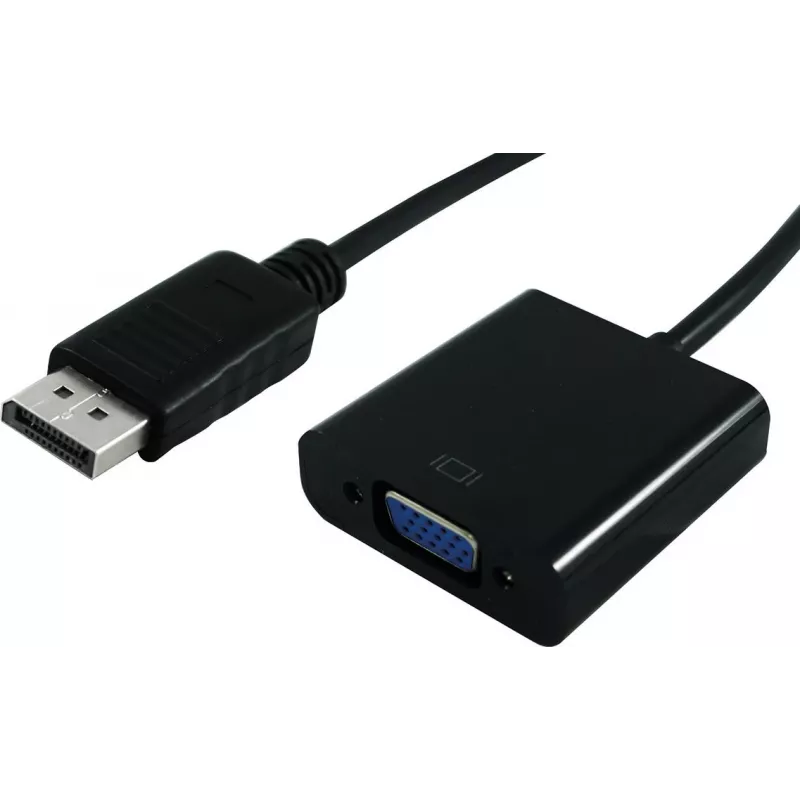

SECOMP STANDARD Cable adaptador DisplayPort a VGA, conector macho DP a conector hembra VGA, 1 m, negro (S3201-10)

When a modern laptop or desktop with only DisplayPort output needs to connect to a legacy VGA monitor or projector, this adapter cable solves the problem without extra software or power bricks. The SECOMP STANDARD S3201-10 is an active converter that translates the digital DisplayPort signal into analog VGA, supporting resolutions up to 1920 x 1200 and 1080p at 60 Hz. Unlike passive cables that rely on the source's dual-mode support, this active design works with any DisplayPort source, including those without DP++.

Highlights

• Active DisplayPort to VGA conversion for universal compatibility
• Supports high resolutions up to WUXGA (1920 x 1200) and Full HD (1080p) at 60 Hz
• Gold-plated connectors resist corrosion and ensure reliable signal transfer
• Bus-powered from the DisplayPort source – no external power adapter needed
• Plug and play: no drivers or software installation required
• Durable PVC jacket protects the cable from daily wear
• Compact 1-meter length ideal for desktop setups and presentations

In daily use

Connect the DisplayPort male end to your computer and the VGA female end to a standard VGA cable running to your display. The adapter draws power directly from the DisplayPort port, so it is always ready when you are. The gold-plated contacts maintain a stable connection even after many insertions, and the flexible PVC jacket makes routing easy in tight spaces. Whether you are extending a workstation to an older monitor or presenting from a laptop to a classroom projector, this adapter delivers crisp, flicker-free video without configuration.

Full specifications

• Connector 1: DisplayPort male (20-pin)
• Connector 2: VGA female (HD-15)
• Cable length: 1 m (3.3 ft)
• Adapter type: Active video converter
• Input signal: DisplayPort digital
• Output signal: VGA analog
• Maximum resolution: 1920 x 1200 @ 60 Hz (WUXGA), 1080p @ 60 Hz
• Audio support: No (VGA does not carry audio)
• HDCP support: No (analog output)
• Power source: Bus-powered from DisplayPort
• Plug and play: Yes
• Colour: Black
• Connector plating: Gold
• Jacket material: PVC
• Direction: Unidirectional (DisplayPort to VGA only)
• Certifications: CE, RoHS

Final note

A reliable active adapter for connecting modern DisplayPort devices to legacy VGA displays, with high-resolution support and hassle-free operation.
