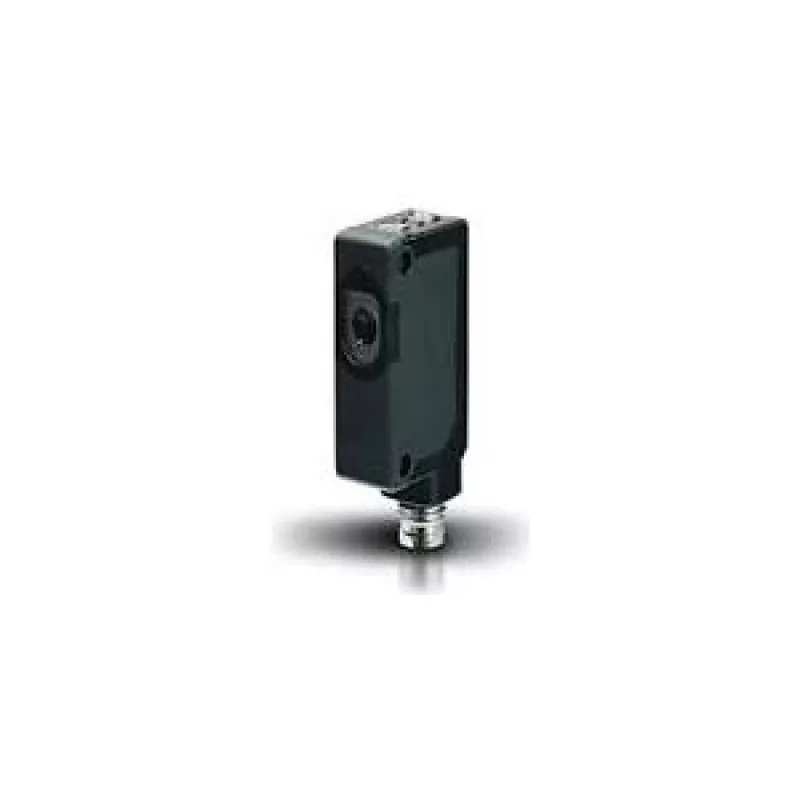

Sensor fotoeléctrico Datalogic S3Z-PR-5-B01-PD — Carcasa de policarbonato negra, IP67, 11×31×19 mm

Datalogic S3Z-PR-5-B01-PD is a compact photoelectric sensor in a black polycarbonate housing with IP67 protection, designed for object detection and presence sensing in confined industrial environments. The sensor measures 11×31×19 mm, offering a miniature form factor based on the S3Z family standard. It provides space-saving installation and resistance to dust and water, suitable for applications where a small, robust sensor is required.

Advantages

The sensor combines a miniature footprint with industrial-grade ingress protection, enabling installation in tight spaces without sacrificing reliability. The polycarbonate housing offers mechanical durability and chemical resistance typical for industrial deployments. Built to the S3Z line standard, the device is optimized for precise and repeatable detection tasks while allowing replacement of larger sensors in existing equipment layouts.

Suitable for

• Object detection on conveyors and handling lines
• Presence sensing in compact assembly stations
• Integration into machines with limited mounting space
• Environments requiring dust- and water-resistant sensors

Key specifications

• Housing material: polycarbonate (black)
• Ingress protection: IP67 (dust-tight and temporary immersion protection)
• Physical dimensions: 11 mm (width) × 31 mm (depth) × 19 mm (height)
• Sensing principle: photoelectric (compact emitter/receiver design)
• Form factor: miniature S3Z standard housing for space-saving installation

How to use

Mount the sensor in a stable position where the sensing axis aligns with the target path, ensuring the housing seals and mounting points maintain IP67 integrity. Connect the sensor following the manufacturer's wiring and power specifications for the S3Z series, taking care to route cabling to avoid mechanical strain and exposure to fluids that could compromise connectors. Adjust the sensor orientation and, if applicable, sensitivity or alignment features so the target reliably crosses the sensing field during normal operation. Verify detection performance under full production speed and with representative targets.

Recommendations

For reliable long-term operation, use the sensor within the environmental and electrical limits specified for the S3Z family, keep the sensing window clean from dust and debris, and confirm mounting does not create mechanical stress on the housing. When replacing larger sensors, check optical alignment and detection range to ensure consistent performance in the reduced form factor.
