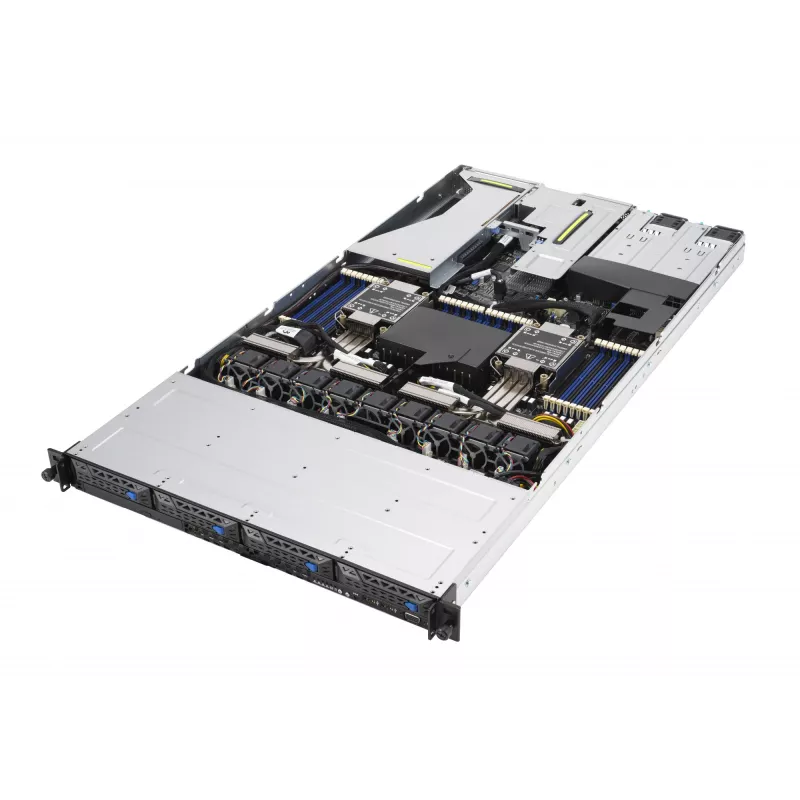

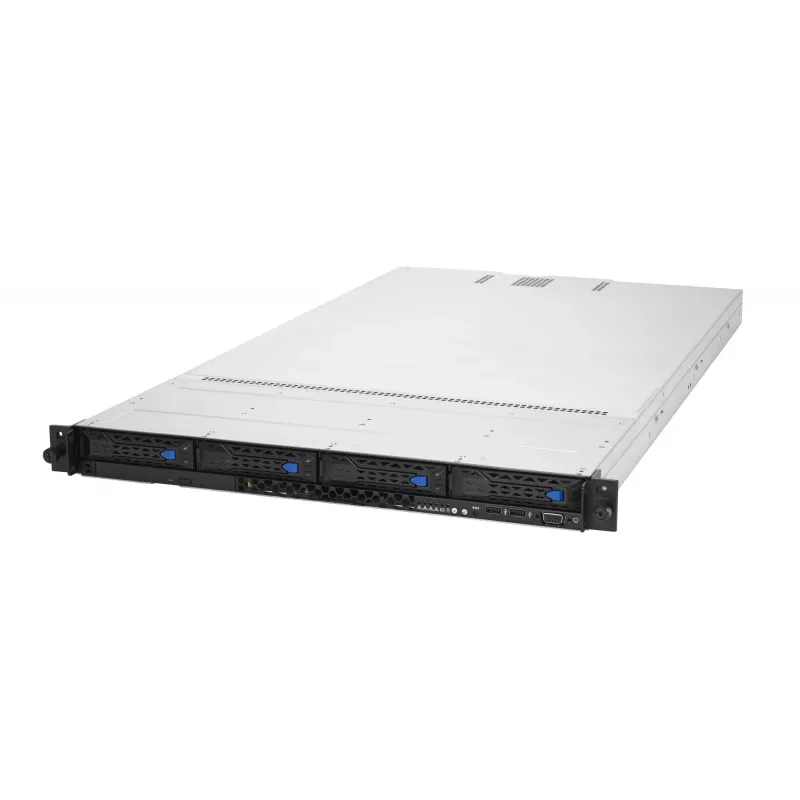

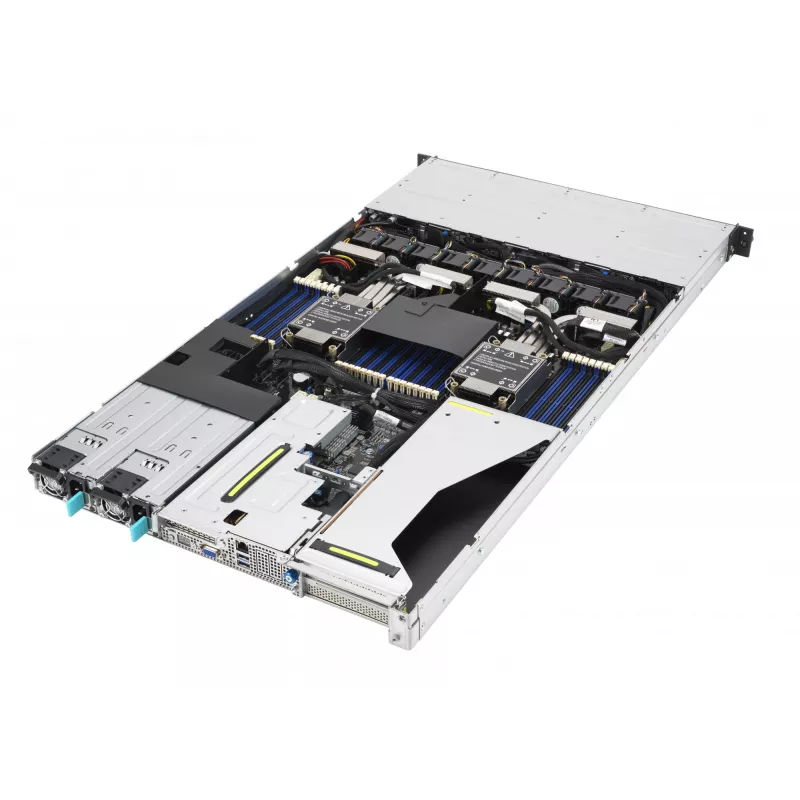

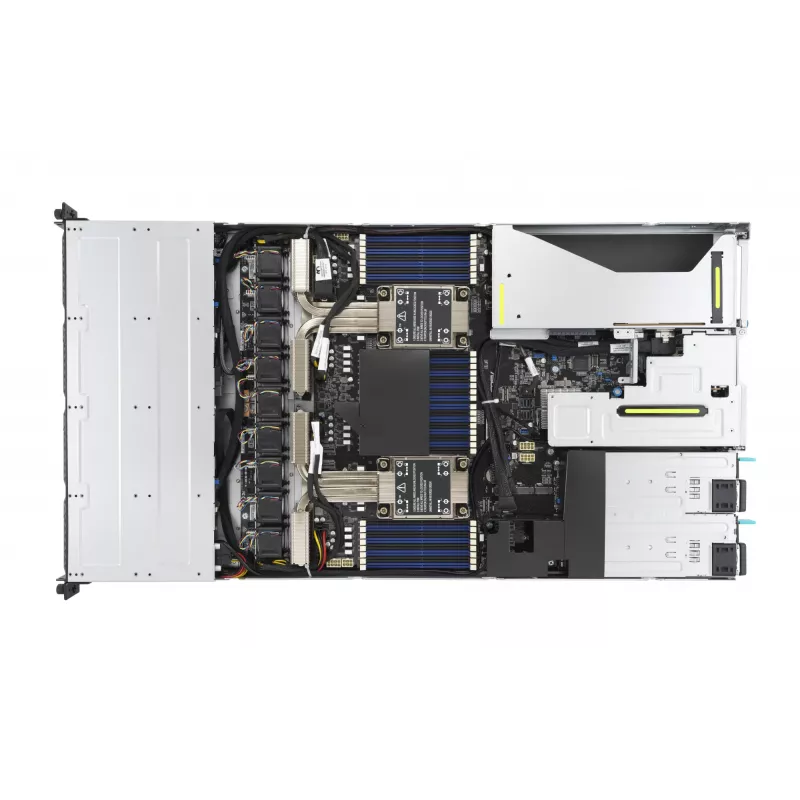

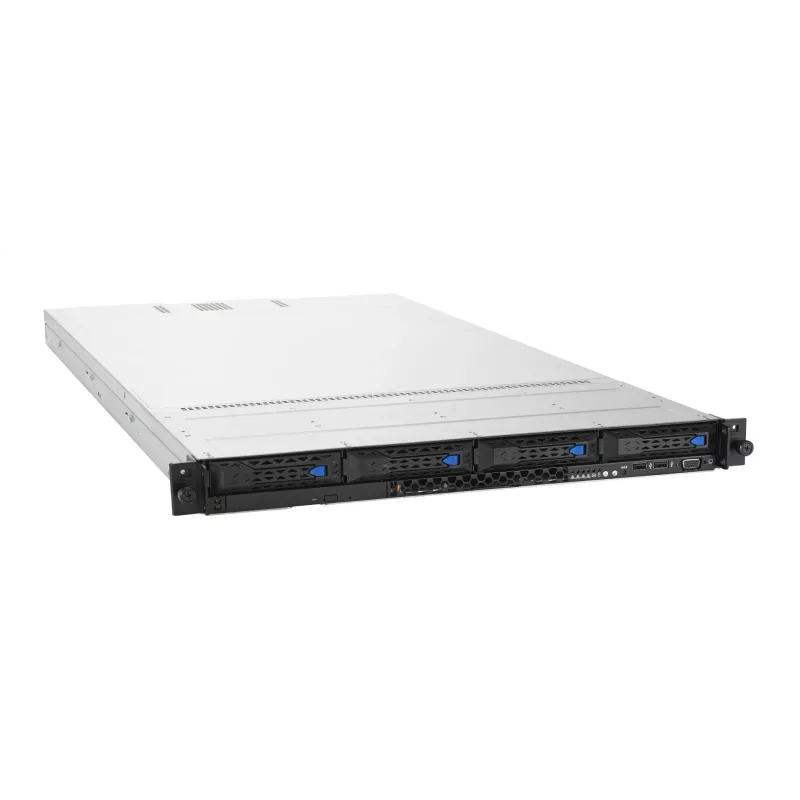

Servidor rack ASUS RS700-E10-RS4U Intel C621A LGA 4189 1U Plata

1U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 4 NVMe, four PCIe slots, one OCP 3.0, dual M.2 and ASUS ASMB10-iKVM.

3rd Gen Intel® Xeon® Scalable Processors

The latest 3rd Gen Intel® Xeon® Scalable Processors feature core counts from 8 to 40 cores and an array of frequency and power supports, and deliver up to 40% better performance compared to the previous generations. With built-in security features, this new platform delivers outstanding performance in security including encryption, authentication and data integrity across the breadth of standards that are prevalent in networking, enterprise and the cloud.

PCIe 4.0 Ready

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS700-E10 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Dual-slot GPU Support

ASUS RS700-E10 servers support one dual-slot GPU to securely run different workloads in virtualized environments and are Xilinx Alveo-qualified to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

* FPGA Xilinx verification is available on request.

CPU-balanced Architecture

The new 3rd Gen Intel® Xeon® Scalable Processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.

This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.

* Features, specification and design vary by models and configuration.

Modular design

ASUS RS700-E10 servers offer a flexible, modular design to enable easy scale-up of configurations to meet increasing data-center workloads.

Scalable Storage Solution

ASUS RS700-E10 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 12 all-flash NVMe drives on front panel enable extensive storage and high-throughput performance.

RS700-E10 servers offer two combinations of storage drive bays for different workloads:
- 12 NVMe/SATA
(Model: RS700-E10-RS12U)

- 4 NVMe/SATA/SAS*
(Model: RS700-E10-RS4U)

* This configuration is required to be with PIKE/RAID cards.
* The optional configuration of supporting up to 8 SATA/SAS with a PIKE card is available for RS12U model.

Enhanced Security

ASUS RS700-E10 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS700-E10 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.

OCP 3.0

ASUS RS700-E10 servers feature the latest OCP NIC 3.0 card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a tool-less, hot-swappable design to simplify installation and serviceability.

Server-management Solution

ASUS ASMB10-iKVM

ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center

ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ASUS RS700-E10-RS4U. Motherboard chipset: Intel C621A, Processor socket: LGA 4189, Processor manufacturer: Intel. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 8GB, 16GB, 32GB, 64GB, 128GB, Maximum internal memory: 6 TB. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Chassis type: Rack (1U), Product colour: Silver

How to use

Install the server in a standard 1U rack bay and follow ASUS hardware installation guidelines to fit processors, memory modules, drives and optional GPU or OCP NIC cards. Configure storage and RAID using Broadcom Tri-Mode RAID adapters if required. Provision the operating system and necessary drivers for the 3rd Gen Intel Xeon platform and AST2600 remote management. Enable TPM 2.0 and factory-fitted PFR during system setup to activate firmware and hardware security features. Use ASUS Control Center to register and centrally manage multiple systems and to perform remote BIOS updates and monitoring.

Recommendations

For optimal performance, populate memory channels evenly across DIMM slots and use PCIe 4.0-capable NVMe drives and OCP NICs where high bandwidth is required. Specify the PFR module at purchase if firmware resilience is needed, and deploy ASUS Control Center for centralized updates and large-scale monitoring.
