Set de accesorios para pedales Heusinkveld HE-SPSBP20 Negro Plata

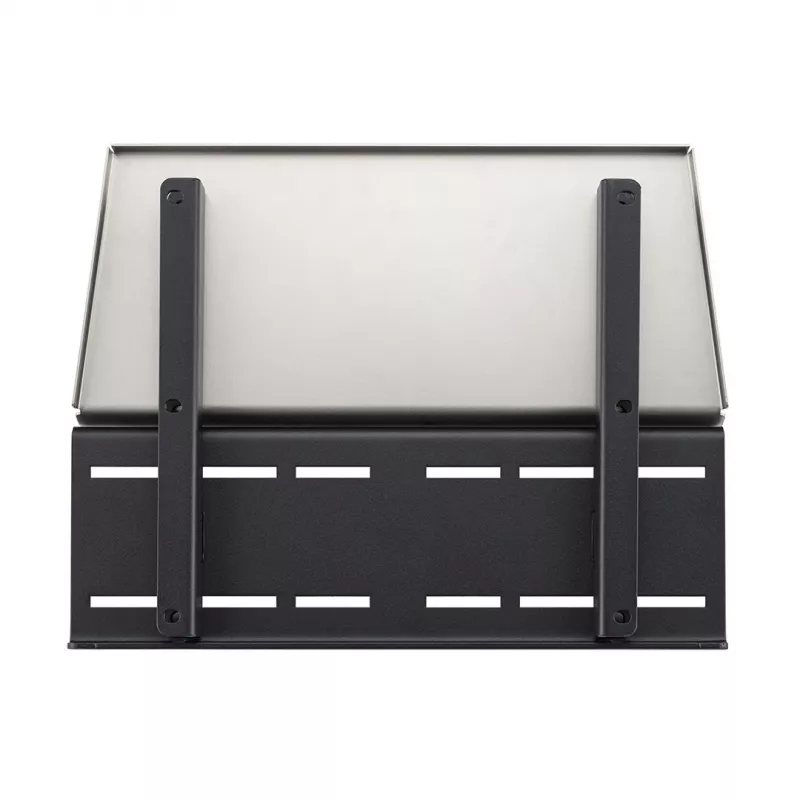

The Heusinkveld HE-SPSBP20 Pedal accessory kit in Black Silver includes a Sprint Baseplate designed to provide a rigid mounting solution for sim racing pedals. Intended specifically for use with Sim Pedals Sprint, the black powder-coated baseplate creates a stable platform to reduce flex under high brake loads and offers adjustable features to fine-tune pedal position and ergonomics. The kit is supplied in a hanging box and includes mounting hardware for attaching the pedal plate to a 6 mm thick underlying plate and for fixing the pedals to the baseplate.

Advantages

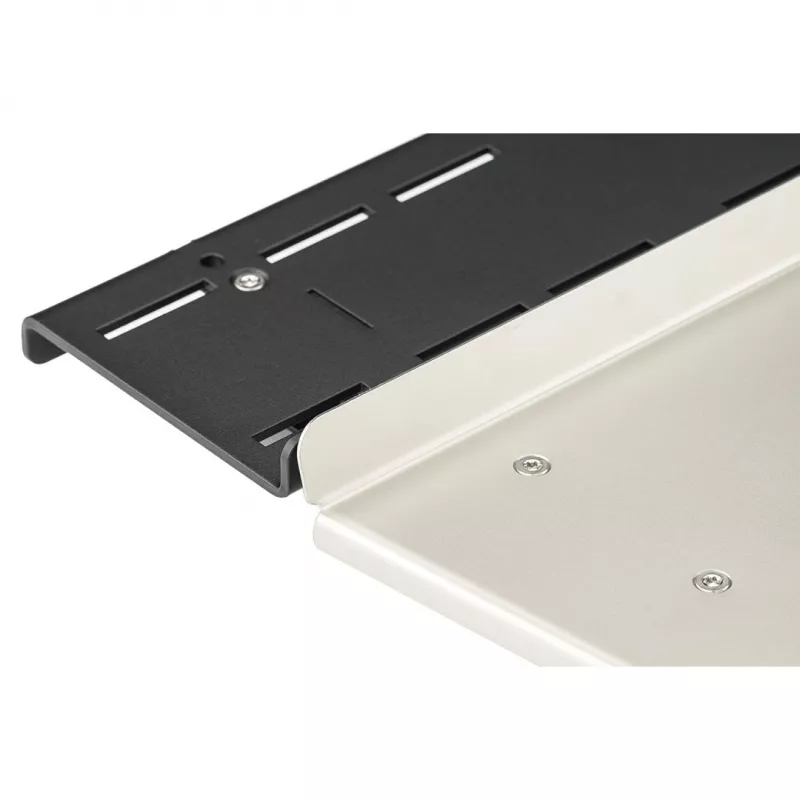

The baseplate eliminates excessive movement and flex when applying strong brake forces by creating a solid mounting surface between your Sprint pedals and a simulator frame. Slotted mounting grooves in the pedal plate and supplied t-nuts allow lateral and small fore/aft adjustments of each pedal without removing the whole assembly. A height-adjustable heel plate with included spacers enables ergonomic setup tailored to driver preference. The black powder-coat finish matches black-colour Sprint pedals and resists wear from regular use.

Suitable for

• Sim racers using Sim Pedals Sprint pedals who require a rigid mounting solution
• Racing simulator rigs and full-frame cockpits where pedal flex reduction is needed
• Users who want adjustable pedal spacing and heel height for ergonomic tuning

Key specifications

• Colour: Black, Silver
• Material finish: Black powder coat
• Compatibility: Designed for Sim Pedals Sprint pedals only
• Pedal plate lateral slot travel: 29 mm for brake, 24 mm for throttle and clutch
• Fore/aft adjustment per pedal via pedal foot slots: 12.5 mm

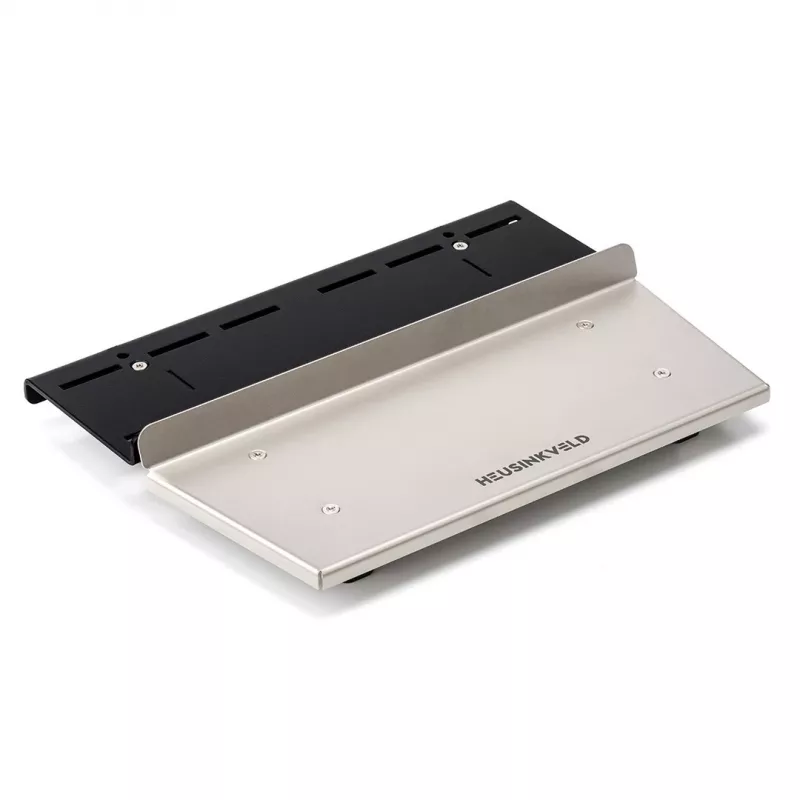

• Heel plate adjustable elevation: 0 mm (default) or +30 mm with supplied spacers
• Includes t-nuts and mounting hardware for attachment to a 6 mm thick underlying plate

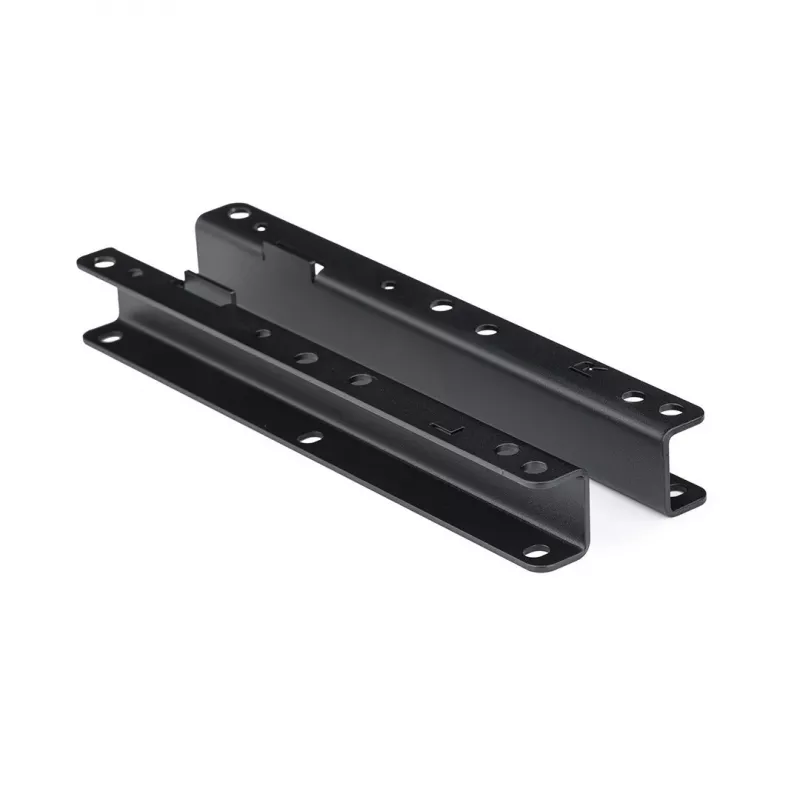

• Bracket mounting holes compatible with TM T3PA/T3PA Pro (235 mm) pedal sets; six bracket mounting points

How to use

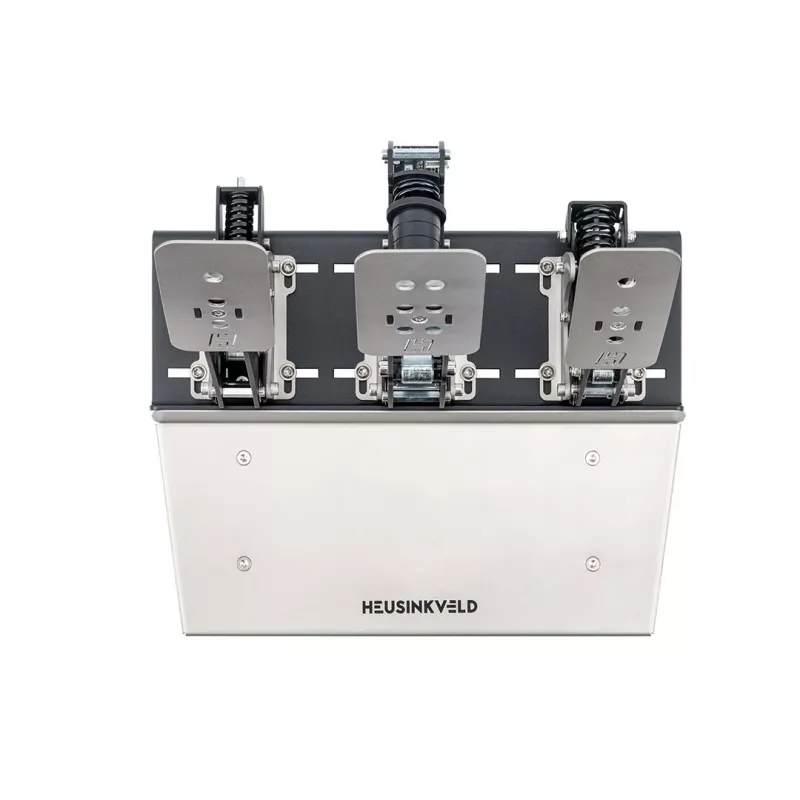

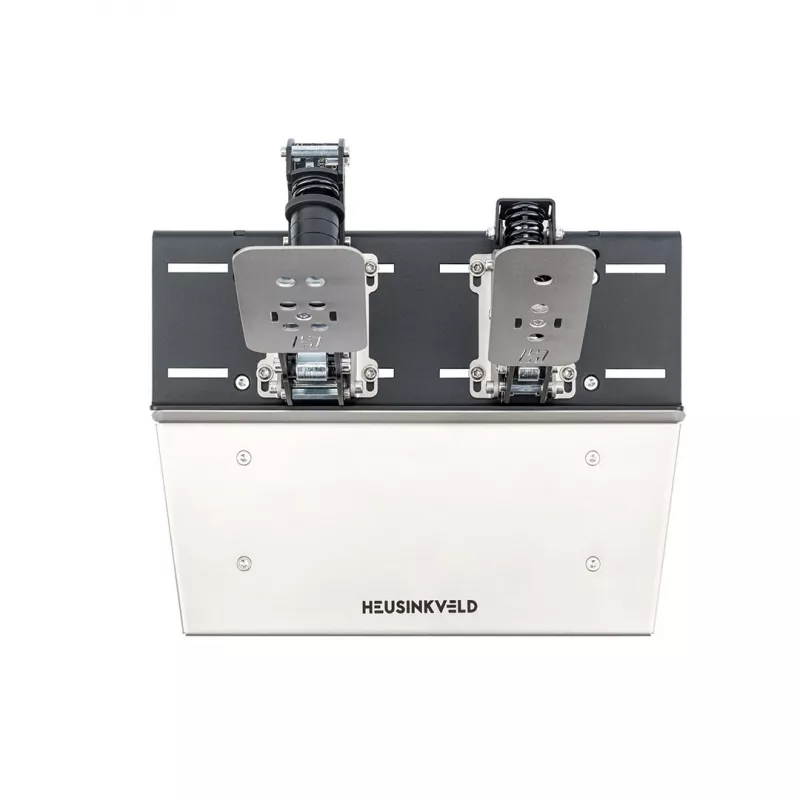

Install the baseplate onto a full frame rig by aligning the bracket mounting holes with your simulator frame or an underlying 6 mm thick plate and secure using the supplied hardware. Mount each Sprint pedal to the pedal plate using the supplied bolts and t-nuts positioned in the adjustment slots; fine-tune lateral position by loosening the top bolts slightly and sliding the pedals in the slots to the desired location. Use the pedal foot slots to move each pedal 12.5 mm forward or backward if further adjustment is required. Attach the heel plate in its default position or add the supplied 30 mm spacers to raise heel height for improved ergonomics.

Recommendations

Do not use the baseplate on its own on a bare floor or in a wheel stand without a solid connection between pedals and seat; the product requires a full-frame rig or equivalent structural support. Verify compatibility with Sim Pedals Sprint before installation and ensure all mounting bolts are tightened securely after adjustments to prevent movement under heavy brake loads.
