Set de adaptadores de medición ALLNET ALL-BRICK-0638 compatibilidad Brick’R’knowledge

The ALLNET ALL-BRICK-0638 measuring adapter set is designed to provide straightforward connection and measurement capabilities for Brick’R’knowledge development modules. At approximately 20 g, the set is lightweight and intended to integrate with standard Brick’R’knowledge components to facilitate signal access, prototyping and diagnostics during electronics development and educational projects.

Advantages

The adapter set offers compact size and simple mechanical compatibility that reduce clutter on development benches and allow quick attachment to Brick’R’knowledge modules. Its low weight and standardized connector layout make it convenient for repeated testing and fast swapping between prototypes. The design prioritizes accessible test points, reliable electrical contact and minimal impact on the host module during measurement tasks.

Suitable for

• Electronics prototyping with Brick’R’knowledge modules
• Educational demonstrations and lab exercises
• Signal monitoring and troubleshooting during development
• Temporary measurement setups and bench testing

Key specifications

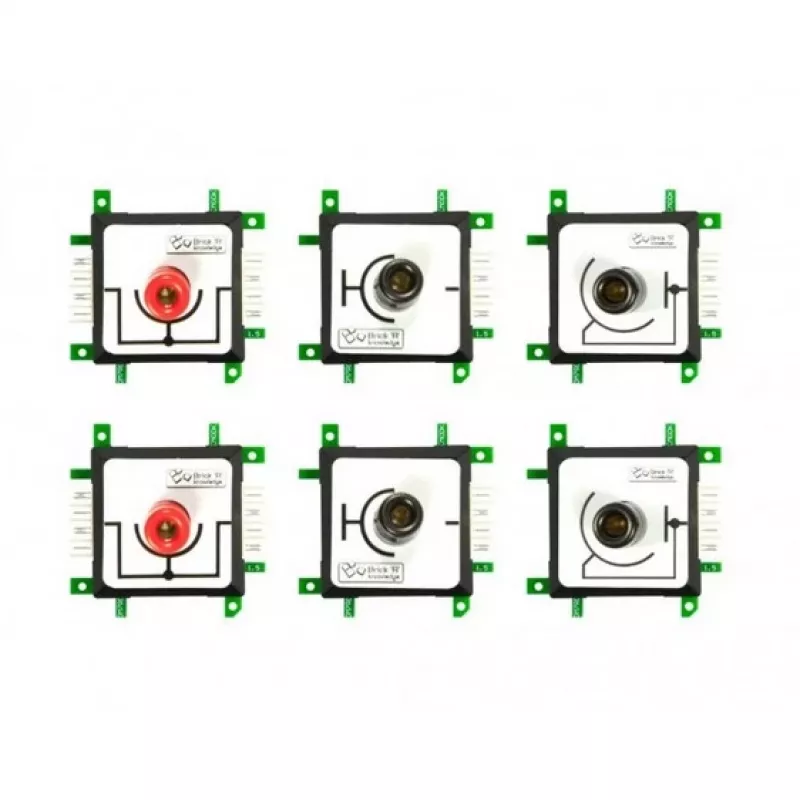

• Product type: measuring adapter set for Brick’R’knowledge
• Compatibility: designed for Brick’R’knowledge modular system
• Weight: approximately 20 g
• Function: provides accessible test points and connection interfaces for measurement tools
• Mechanical form factor: compact, lightweight adapter components suitable for bench use

How to use

Align the adapter set with the target Brick’R’knowledge module connectors and attach it according to the mechanical guides on the module. Connect measurement instruments such as multimeters, oscilloscopes or logic analyzers to the accessible test points provided by the adapter. Perform measurements while ensuring that instrument input characteristics match the expected signal levels and that connections are secure to avoid intermittent contact. After testing, detach the adapter carefully to avoid stressing module connectors.

Recommendations

Use the adapter set on a static-free work surface and verify signal levels before connecting sensitive measuring equipment. For repeatability, document connector orientation and test point assignments, and disconnect power where recommended before making or breaking connections.
