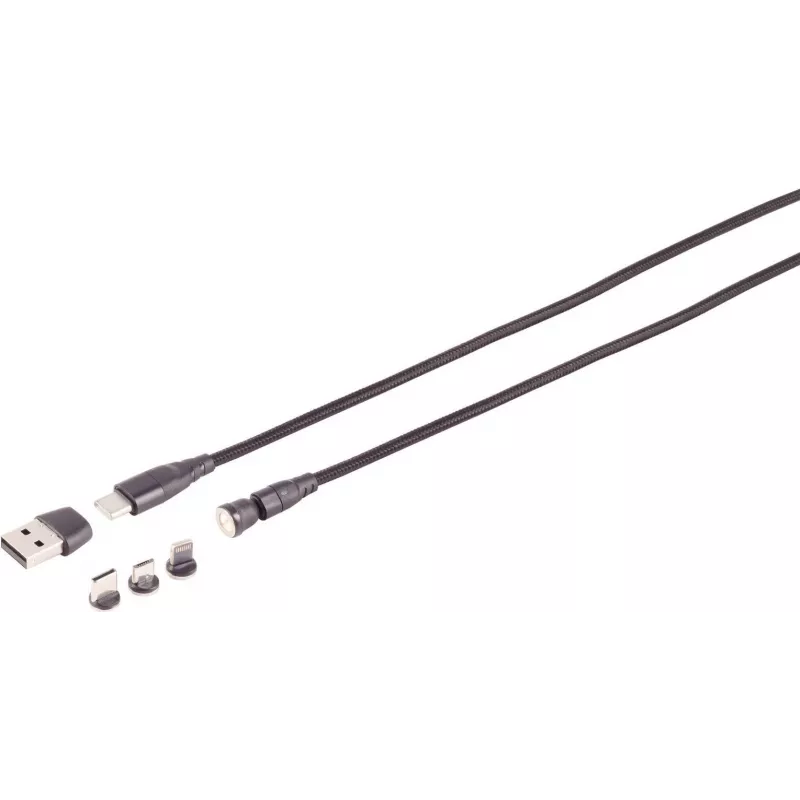

Set de conectores magnéticos ShiverPeaks S/CONN 7 polos con 3× USB-C

Magnet Connector Set ShiverPeaks S/CONN 7-pin with 3× USB-C provides a compact magnetic interface combining a seven-contact connector with three USB‑C outlets. The set is designed as an accessory module for equipment that accepts 7-pin magnetic modules and requires multiple USB‑C connections for power delivery, charging or data routing. The magnetic coupling enables fast, tool-free connection while maintaining consistent electrical contact between the host and connected peripherals.

Advantages

The modular design offers a reliable magnetic latch that aligns seven contacts automatically, reducing wear on fixed sockets and simplifying repeated attachment and removal. Three USB‑C ports allow simultaneous connection of several USB‑C peripherals or cables, supporting flexible power and data distribution. The construction is compact and intended for integration into housings or accessory panels where space and ease of use are important.

Suitable for

• Devices and panels that accept 7-pin magnetic connector modules
• Applications requiring multiple USB‑C power or data outlets in one compact module
• Portable equipment or docking solutions where quick magnetic coupling is desired
• Environments where frequent connection/disconnection occurs and contact reliability matters

Key specifications

• Connector type: 7-pin magnetic interface with three dedicated USB‑C sockets
• USB ports: three USB‑C connectors for power delivery and data routing
• Contact mechanism: magnetic alignment and spring-loaded contact points for repeatable engagement
• Mounting: accessory module intended for panel or housing integration
• Compatibility: designed for systems supporting 7-pin magnetic modules and USB‑C peripherals

How to use

Install the Magnet Connector Set into the designated panel or accessory slot following the host device's mechanical and electrical integration instructions. Bring the mating magnetic counterpart close to the module; the magnet will align and engage the seven contacts automatically. Connect USB‑C cables or devices to the three USB‑C sockets as required for power delivery or data transfer. Ensure proper orientation and that mating surfaces are clean to maintain reliable contact.

Recommendations

For consistent performance, inspect contact surfaces periodically and remove dust or debris before connecting. Use compatible USB‑C cables rated for the intended power and data requirements. Avoid excessive lateral force while connected and follow the host equipment manufacturer’s guidelines for panel integration and electrical loads.
