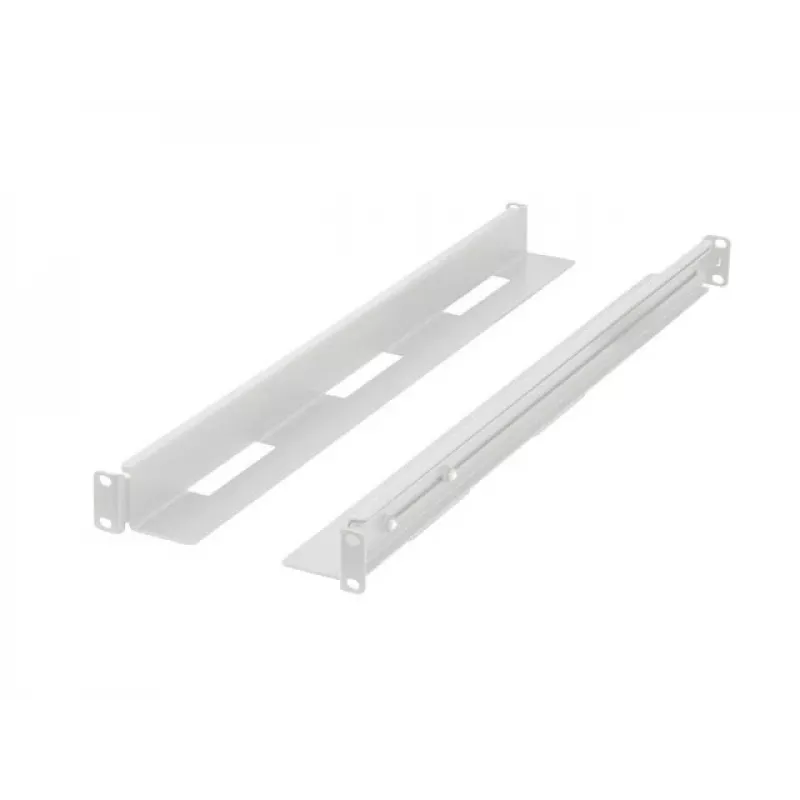

Set de guías de montaje para rack LANBERG AK-1902-S gris 19 pulgadas guías extraíbles para armarios de servidores

Where fixed rails force a full device removal for every service task, the LANBERG AK-1902-S brings sliding convenience to standard 19-inch server cabinets. This grey steel rail kit lets you pull servers, UPS units, or network gear forward on smooth ball-bearing slides, keeping rear ports and internal components accessible without unracking the hardware. The three-section telescopic mechanism extends roughly 500 mm, locks at full extension, and retracts to a compact 550 mm — a practical fit for cabinets with 600–800 mm depth.

Highlights

• Sliding 3-section telescopic rails with ball-bearing action for effortless equipment movement
• Tool-free forward access to rear cabling and components during maintenance
• Lock-out at full extension prevents accidental slide-back while servicing
• Adjustable mounting depth from 500 to 700 mm to accommodate various rack depths
• Durable powder-coated steel construction with grey finish that blends into most rack interiors
• Supports up to 50 kg per pair — suitable for servers, UPS, storage, and network devices

In daily use

Installation is straightforward: attach the fixed rail sections to the rack verticals with compatible screws and cage nuts, then mount the sliding members to the equipment chassis. Once engaged, the device glides forward and locks, giving you stable, hands-free access to hot-swap drives, power supplies, and cable bundles. The four-point mounting (front and rear) keeps everything aligned, reducing the risk of disconnects during routine checks. The grey powder coat resists abrasion and fingerprints, so the rails stay presentable even in high-traffic data rooms.

Full specifications

• Product type: Sliding rack mounting rails (1 pair)
• Rack compatibility: 19-inch, EIA-310-D compliant
• Material: Steel, powder-coated finish
• Colour: Grey
• Slide mechanism: 3-section telescopic ball bearing
• Load capacity: 50 kg (110 lbs)
• Cabinet depth range: 600–800 mm
• Adjustable mounting depth: 500–700 mm
• Rail length (retracted): 550 mm
• Max extension: approximately 500 mm
• Mounting points: 4-point (front and rear)
• Locking feature: Yes, lock-out at full extension
• Installation type: Screw-in
• Application: Servers, UPS, network devices, storage

Final note

A dependable sliding rail kit that turns cramped rack maintenance into a one-person job — built to hold steady and slide smoothly for years.
