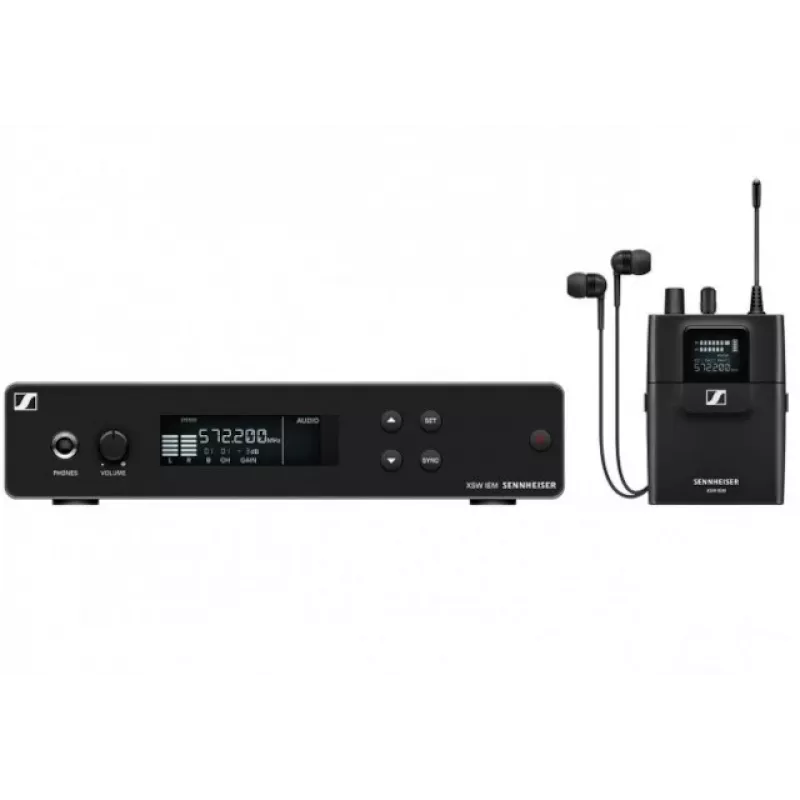

Set de monitorización in-ear Sennheiser XSW IEM SET A 476–500 MHz sistema de monitorización personal inalámbrico

Sennheiser XSW IEM SET A 476–500 MHz is a wireless in-ear monitoring system that provides a compact transmitter and bodypack receiver for personal stage monitoring. The set is intended for live performance and rehearsal use, operating in the Ultra High Frequency (UHF) band within the 476–500 MHz radio range. The system includes in-ear headphones and offers a limiter function to control peak levels.

Advantages

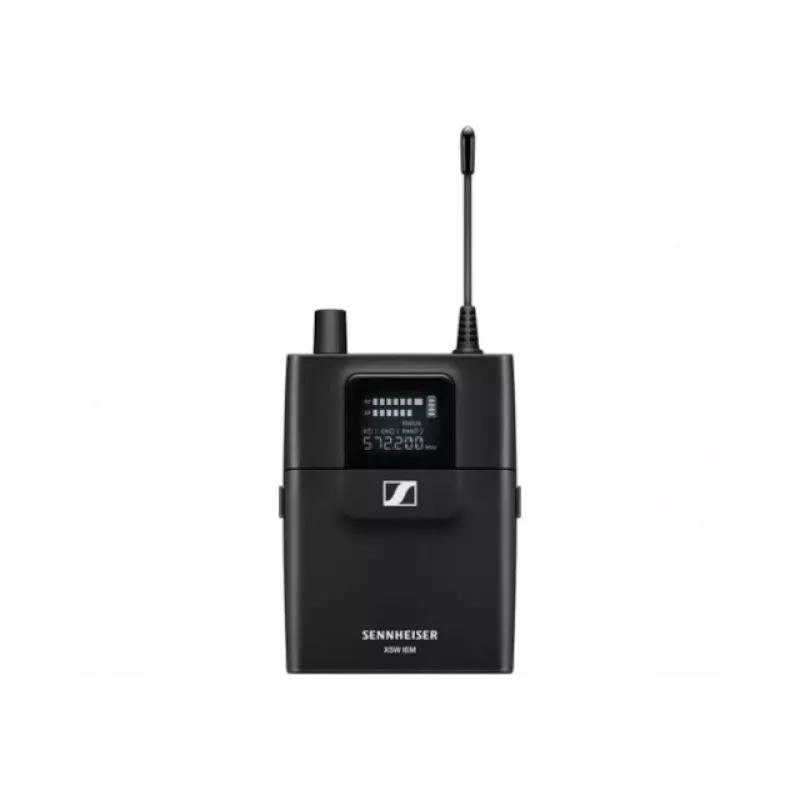

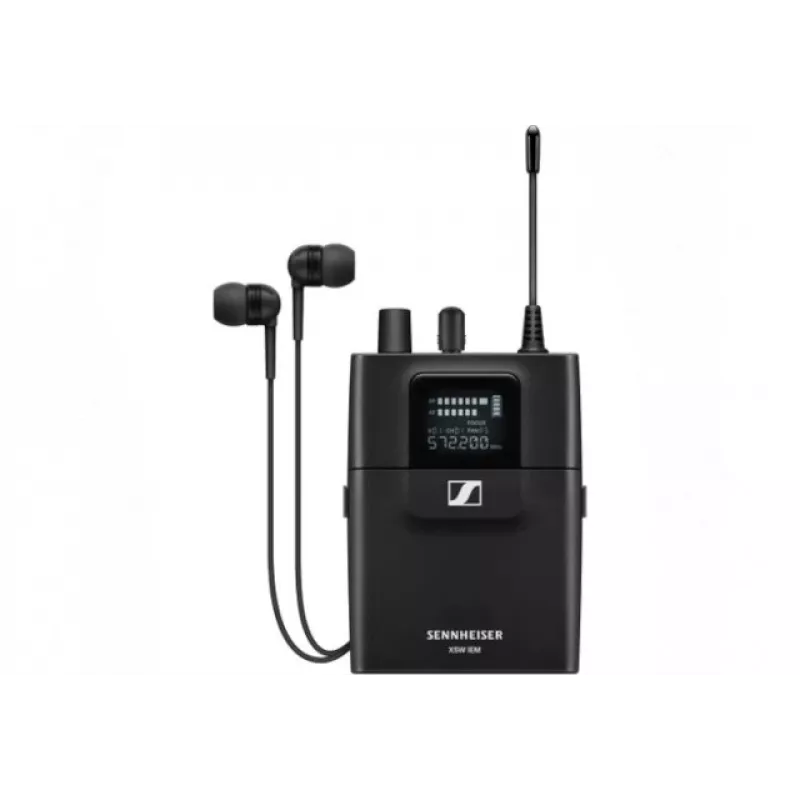

The system supports a wide audio bandwidth from 45 to 22,000 Hz with low harmonic distortion (THD < 0.1%) and a headphone impedance of 16 Ω. The bodypack receiver features an LCD display and LED indicator, while the transmitter provides multiple inputs including two XLR combo inputs and a 6.35 mm headphone output. The receiver is lightweight for on-stage wear and the transmitter is compact for easy stage placement.

Suitable for

Key specifications

How to use

Connect audio sources to the transmitter using the XLR combo inputs or other available inputs, set the transmitter and receiver to a matching frequency within 476–500 MHz, and attach the in-ear headphones to the receiver's 3.5 mm output. Power the receiver with two batteries and place the bodypack on the performer. Adjust the transmitter and receiver levels and use the limiter feature to avoid excessive peaks. Place the transmitter on stage or a stable surface and use the 6.35 mm output if monitoring from a console or headphone amplifier is required.

Recommendations

Avoid contact with water and operate the system within the specified 0–40 °C temperature range. For best results, select a clear UHF frequency and check levels during a soundcheck to minimise interference and ensure comfortable monitoring volume.
