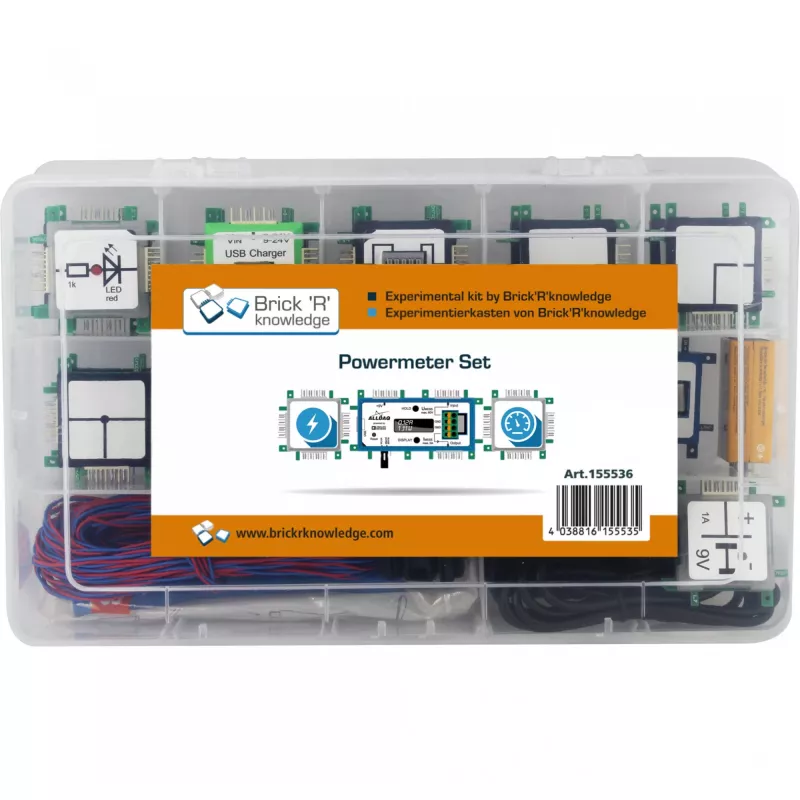

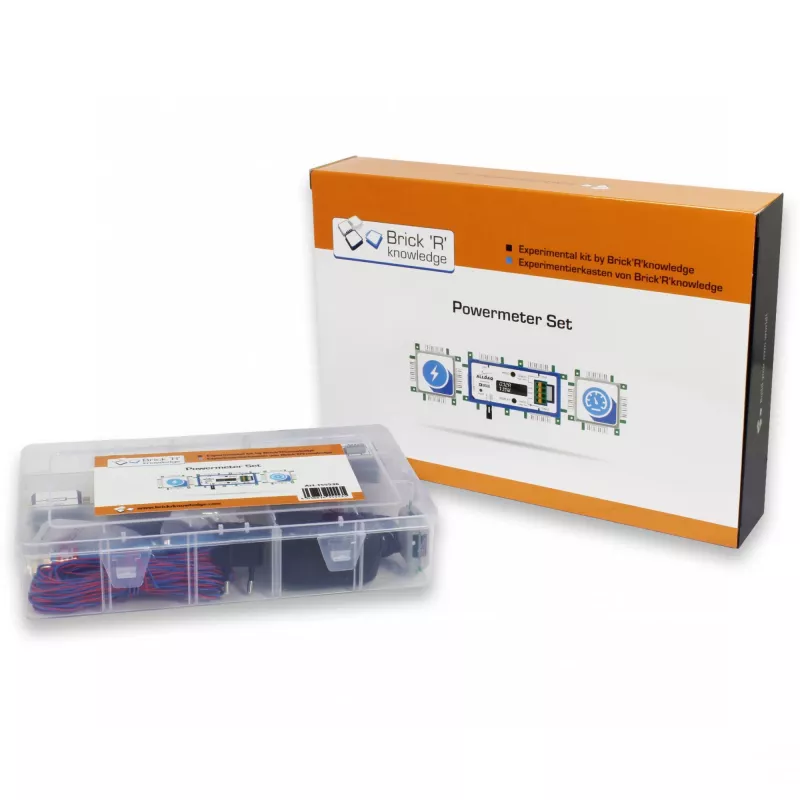

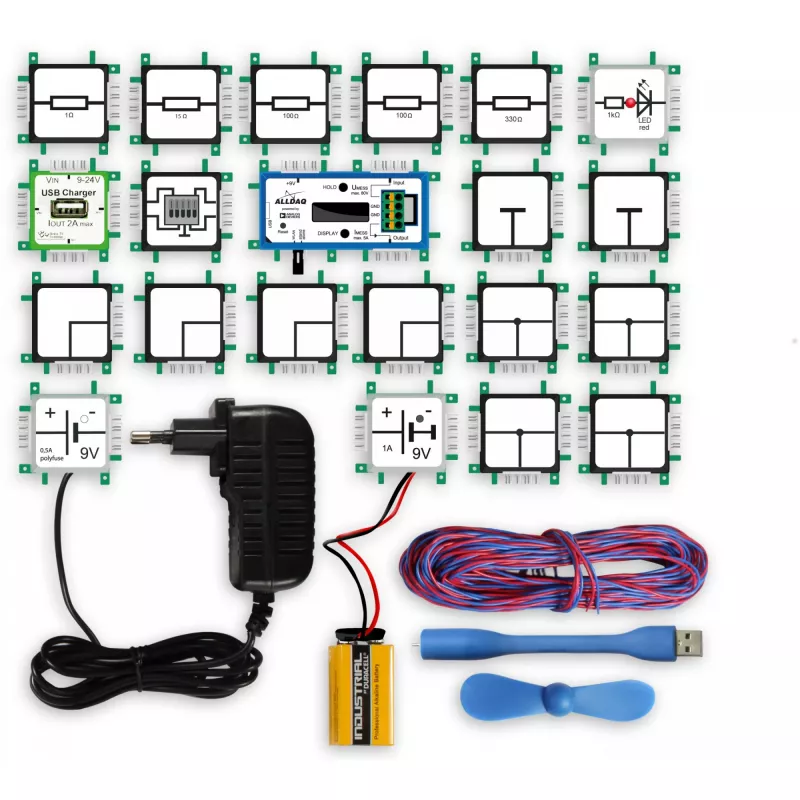

Power Meter Set ALLNET BrickRknowledge ALL-BRICK-0696 is a compact measurement kit designed for monitoring electrical power and related parameters. Supplied with German-language instruction, the set contains the core instruments and documentation needed to measure voltage, current, power, and energy in single-phase installations. The kit is intended for technicians and hobbyists who require a portable solution for testing, troubleshooting and energy checks in laboratory, workshop or field environments.

Advantages

The set combines essential measurement functions in a single kit with clear German documentation for setup and operation. Its compact format supports easy transport and deployment on-site. Measurement capability for voltage, current and derived power values allows quick assessment of electrical loads and energy consumption. The included instructions describe connection procedures and basic safety information relevant to users familiar with electrical testing.

Suitable for

• Electrical load measurements in single-phase circuits
• Troubleshooting and verifying power supply behavior
• Energy consumption checks for appliances and devices
• Laboratory and workshop testing of small installations
• Portable field measurements during installations and maintenance

Key specifications

• Functions: measurement of voltage, current, active power and energy
• Interface: portable bench or handheld meter format suitable for field use
• Documentation language: German instruction manual included
• Recommended operating environment: indoor laboratory or protected field conditions
• Power supply: battery or external adapter as applicable to meter model

How to use

Consult the supplied German-language manual before making any electrical connections. Connect the meter according to the documented wiring diagram: attach voltage inputs and current sensors or clamps as instructed, ensuring proper polarity and secure contacts. Power the meter using the specified supply method. Use the meter’s measurement mode to read voltage and current, and observe calculated power and energy values on the display. Follow the manual for selecting measurement ranges, zeroing current clamps if applicable, and recording results.

Recommendations

Operate the kit only within its rated voltage and current limits and follow basic electrical safety practices: disconnect power before making wiring changes, use appropriate insulation and personal protective equipment, and avoid exposure to moisture. Use the German manual for reference on safe setup and interpretation of measurement results.
