Shining 3D DENTAL SPLINT HARD RESIN SH01 1 kg transparente

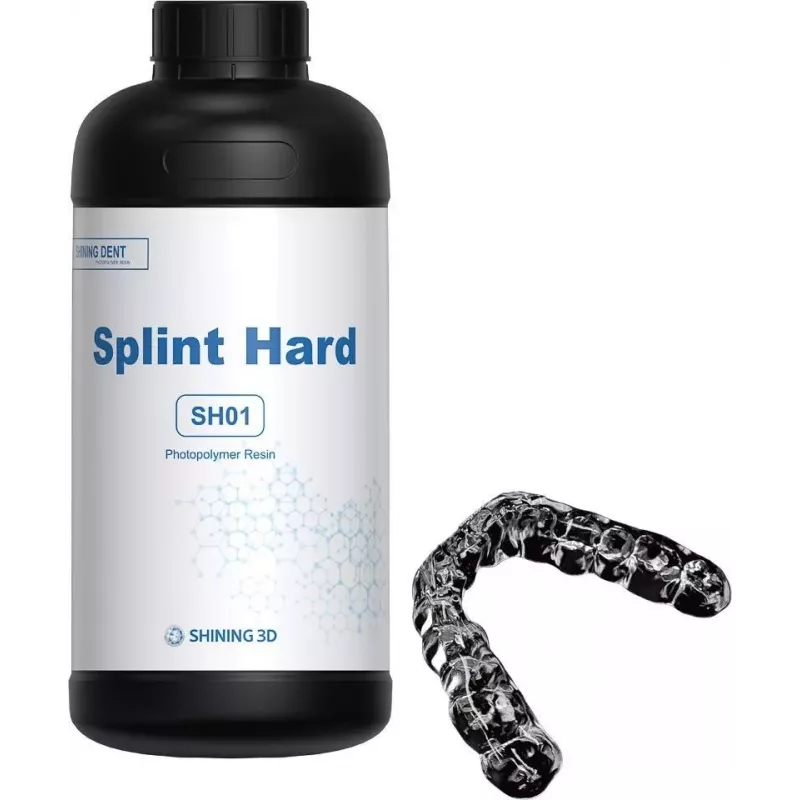

The Shining 3D DENTAL SPLINT HARD RESIN SH01 is a high-performance, biocompatible 3D printing resin specifically formulated for the fabrication of dental splints, night guards, and occlusal guards. This hard resin delivers exceptional mechanical strength and dimensional stability, ensuring reliable and durable dental appliances. With a transparent color and optimized viscosity for DLP and LCD printers, it offers excellent print accuracy and surface finish.

Advantages

Class IIa medical device compliant with ISO 10993 and ISO 20795-1 standards, ensuring safety for intraoral use. High hardness (Shore D 80-85) and flexural strength (>100 MPa) provide long-lasting performance. Low water absorption (<32 µg/mm³) maintains dimensional stability in the oral environment. Compatible with 385-405nm curing wavelengths for broad printer compatibility.

Suitable for

• Dental splints
• Night guards
• Occlusal guards
• Orthodontic appliances

Key specifications

• Volume: 1 kg
• Color: Transparent
• Hardness (Shore D): 80-85
• Flexural Strength: >100 MPa
• Flexural Modulus: >2000 MPa
• Tensile Strength: >60 MPa
• Elongation at Break: 5-10%
• Water Absorption: <32 µg/mm³
• Density: 1.1-1.2 g/cm³
• Viscosity (at 25°C): 200-400 mPa·s
• Curing Wavelength: 385-405 nm
• Post-Curing: Required
• Storage: Cool, dark place, away from direct sunlight

Recommendations

For optimal results, use with DLP or LCD 3D printers calibrated for 385-405nm UV light. Ensure proper post-curing according to manufacturer guidelines. Store in a cool, dark environment to maintain resin properties.
