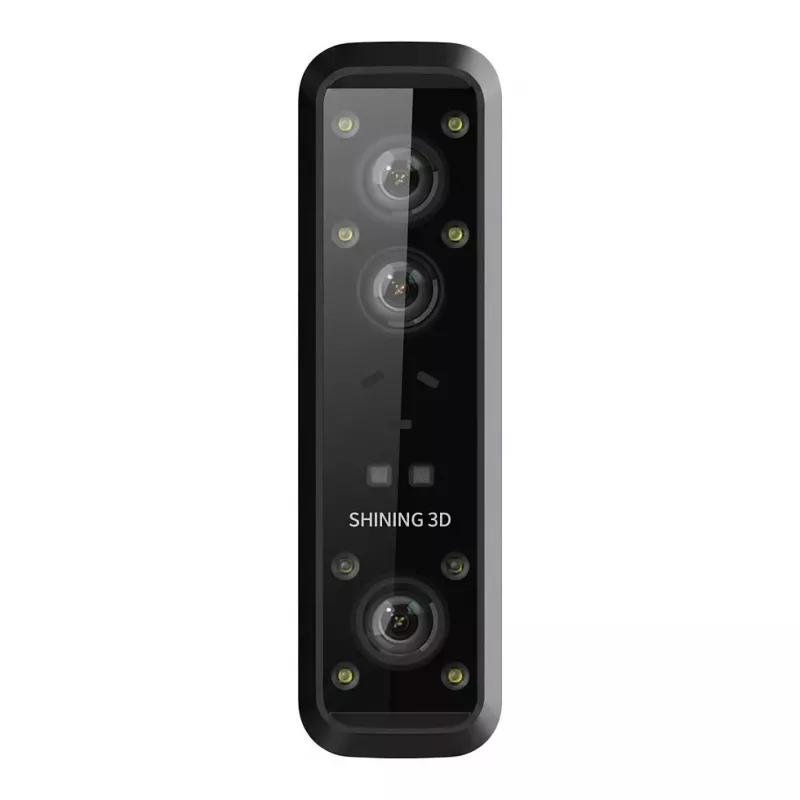

Shining 3D EINSTAR ROCKIT Escáner 3D de mano inalámbrico con láser e IR VCSEL (C010629)

The Shining 3D EINSTAR ROCKIT is a versatile wireless handheld 3D scanner that combines laser and infrared VCSEL light sources for high-precision scanning. Ideal for professionals in design, engineering, and education, it offers dual scan modes (LED and Infrared) to handle a wide range of objects, from small intricate parts to larger items. With a built-in 5MP color camera, it captures full-color textures, making it perfect for digital archiving, reverse engineering, and creative projects.

Advantages

Wireless freedom with USB 3.0 connectivity, hybrid light source for flexibility, high accuracy up to 0.05 mm (LED mode), and fast scan speed up to 1,500,000 points/s (infrared mode). The scanner supports multiple alignment modes (feature, marker, hybrid, texture) and outputs standard 3D formats (OBJ, STL, ASC, PLY, P3, 3MF).

Suitable for

• Product design and prototyping
• Reverse engineering
• Cultural heritage preservation
• Medical and dental applications
• Education and research

Key specifications

• Light Source: Hybrid (LED & Infrared VCSEL)
• Scan Modes: LED Light Scan, Infrared Light Scan
• Accuracy (LED): Up to 0.05 mm
• Accuracy (Infrared): Up to 0.1 mm
• Volumetric Accuracy (LED): 0.05 + 0.1 mm/m
• Volumetric Accuracy (Infrared): 0.1 + 0.2 mm/m
• Scan Speed (Infrared): Up to 1,500,000 points/s
• Minimum Point Distance: 0.2 mm
• Single Scan Range: 420 x 440 mm
• Working Distance: 200 - 700 mm
• Color Scan: Yes, with built-in 5MP color camera
• Texture Resolution: 5 MP
• Output Formats: OBJ, STL, ASC, PLY, P3, 3MF
• Connectivity: USB 3.0
• Operating System: Windows 10/11 (64-bit)
• Alignment Modes: Feature, Marker, Hybrid, Texture
• Recommended PC CPU: Intel i7-11700 or higher
• Recommended PC RAM: 32 GB or higher
• Recommended PC GPU: NVIDIA RTX 3060 or higher

Recommendations

For optimal performance, use a computer meeting the recommended specifications. The scanner is compatible with Windows 10/11 64-bit systems.
