SHIVERPEAKS BS08-84093057 Cat. 7 S/FTP BasePro cable de instalación, 305 m, naranja

Engineered for 10 Gigabit Ethernet at 600 MHz, this Cat. 7 S/FTP installation cable delivers uncompromising performance for high-density structured cabling. The SHIVERPEAKS BasePro series provides a robust 305-meter drum of orange LSZH-jacketed cable, ideal for professional indoor network installations.

Overview

The SHIVERPEAKS BS08-84093057 is a Cat. 7 S/FTP (Screened/Foiled Twisted Pair) bulk cable designed for permanent links in data centers, offices, and industrial environments. Each of the four twisted pairs is individually foil-shielded, and an overall braided screen provides superior protection against alien crosstalk and electromagnetic interference. The solid bare copper conductors (AWG 23) ensure excellent conductivity and support for Power over Ethernet up to PoE++ (IEEE 802.3af/at/bt).

What stands out

• Full Cat. 7 performance: 600 MHz bandwidth, 10GBASE-T ready
• S/FTP shielding: individual pair foils plus overall braid for maximum noise immunity
• LSZH (Low Smoke Zero Halogen) orange jacket: safety in fire-sensitive areas
• Solid bare copper conductors: reliable signal integrity and PoE support

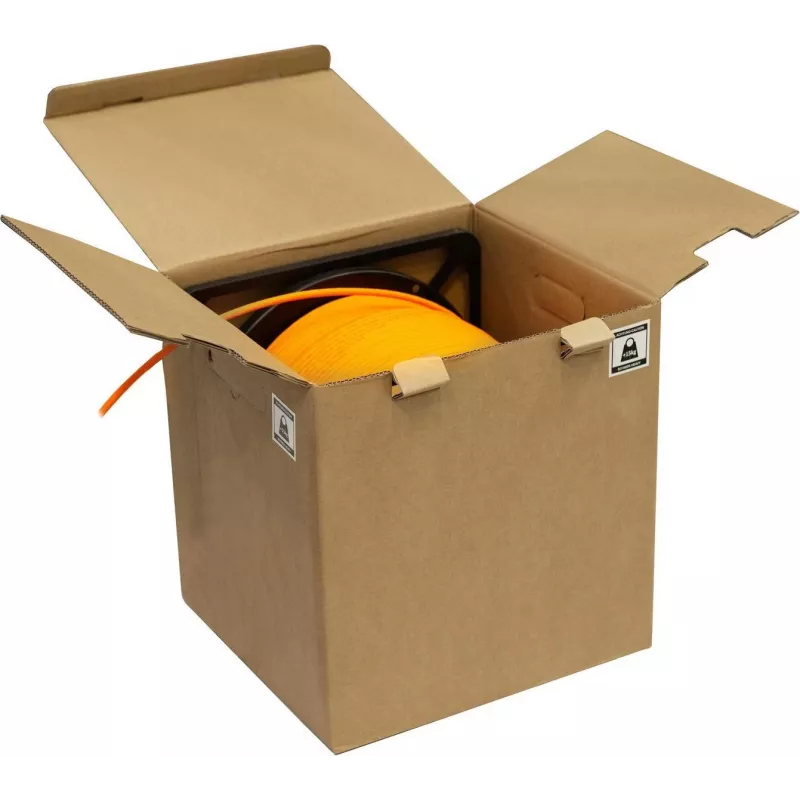

• 305 m drum: convenient for large-scale installations

Technical details

• Cable category: Cat. 7
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Length: 305 m
• Colour: Orange
• Conductor material: Bare copper
• Conductor type: Solid
• Conductor gauge: AWG 23
• Number of pairs: 4
• Number of conductors: 8
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Frequency bandwidth: 600 MHz
• Data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Application: Indoor network installation, structured cabling
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Packaging: Cable drum

Our verdict

A professional-grade Cat. 7 installation cable that meets the highest standards for 10G networking. The S/FTP shielding and LSZH jacket make it a safe and reliable choice for demanding indoor cabling projects.
