Cable plano S/CONN 79014-10 14 polos gris 10m

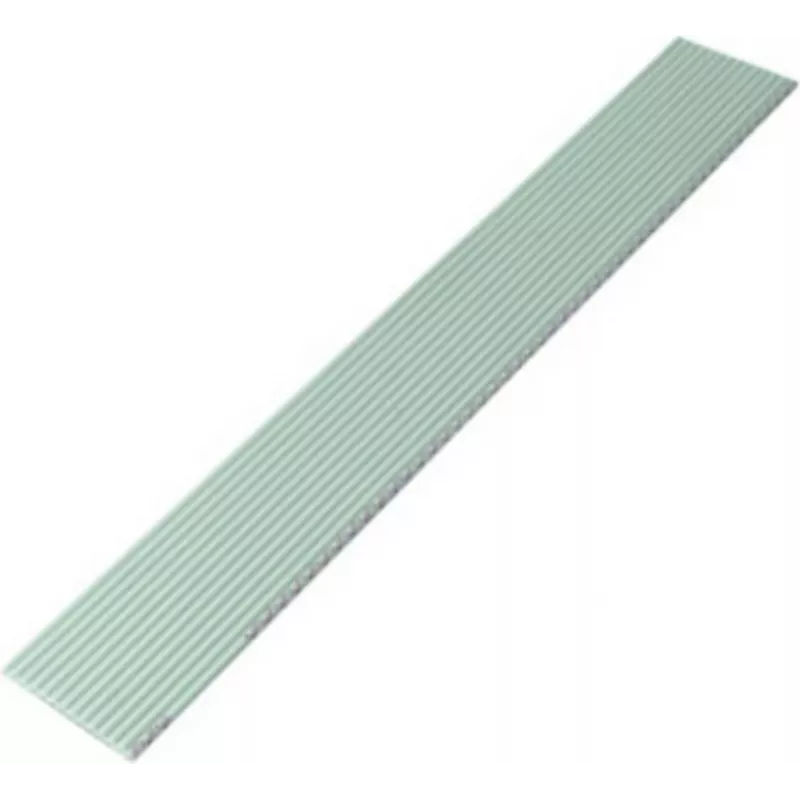

The ShiverPeaks ribbon cable S/CONN 79014-10 is a 14-pin flat cable with a length of 10 meters in a neutral grey colour. It is intended to carry multiple parallel signals between components in electronic assemblies, control panels, instrumentation and other installations where compact, organized routing of conductors is required. The flat profile and consistent pin spacing make the cable suitable for situations that require orderly connection of multiple conductors in limited spaces.

Advantages

The flat ribbon design provides predictable conductor layout and easy identification of individual lines without bulky insulation. A 14-pin configuration supports moderate multi-wire connections while keeping the cable width compact. The 10 m length allows flexible placement of devices at a distance without the need for splicing. The grey outer colour offers a neutral appearance that blends into most equipment racks and wiring looms.

Suitable for

• Internal interconnections in electronic equipment and control cabinets
• Connections between PCBs and peripheral modules in prototypes and test rigs
• Signal bundling in industrial automation panels and machine controls
• Wiring in instrumentation, measurement devices and communication equipment

Key specifications

• Number of conductors: 14
• Cable form: flat ribbon
• Length: 10 m
• Colour: grey
• Typical use: multi-conductor signal wiring

How to use

Measure and cut the ribbon cable to the required length, ensuring a clean, square cut to preserve conductor spacing. Strip the outer insulation or separate individual conductors as needed for the chosen connector type, crimping or soldering according to connector manufacturer instructions. Maintain correct pin orientation when mating with headers or IDC connectors to avoid mis-wiring. Secure the cable along its route with appropriate ties or mounting clips to prevent strain on terminations and reduce movement-related wear.

Recommendations

For reliable long-term performance, avoid sharp bends with radii smaller than the conductor spacing permits and protect the cable from abrasive surfaces and direct heat sources. Use IDC or purpose-matched connectors for mass-termination to preserve conductor alignment and ensure consistent contact pressure.
