Cable S-VGA S/CONN 78056-5 5 m

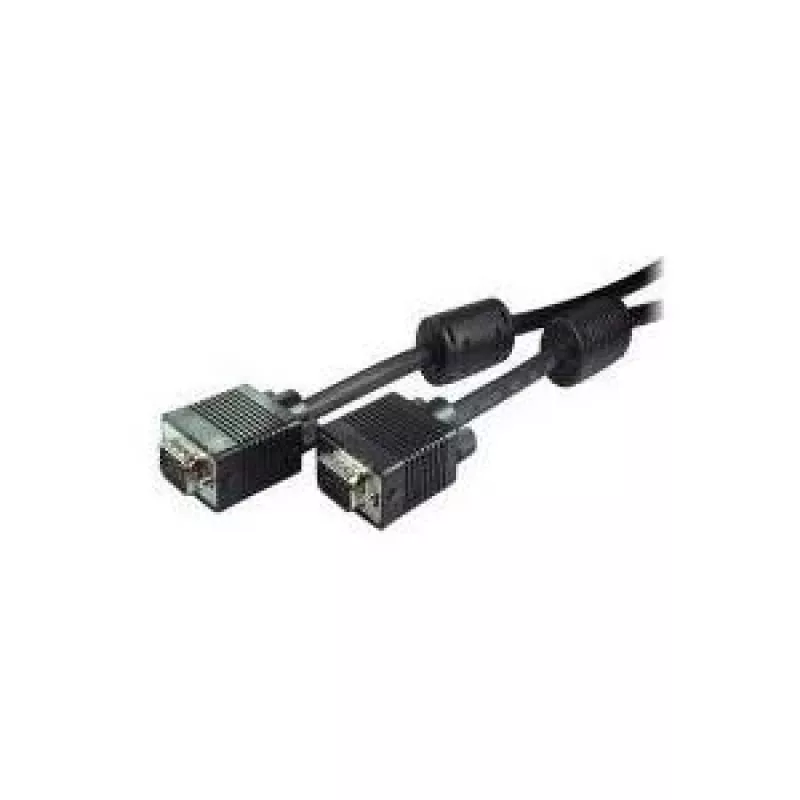

The ShiverPeaks S-VGA Cable S/CONN 78056-5 is a 5 m shielded VGA lead with two 15-pin HD15 (D-Sub) connectors. The molded connectors include ferrite suppression to reduce electromagnetic interference, and the cable is specified as 75 Ohm for video signal integrity. It is designed for transmitting analog VGA video between PCs, monitors, projectors and other VGA-compatible equipment.

Advantages

This 5 m S-VGA cable provides a reliable analog video connection with molded HD15 plugs and integrated ferrite for improved interference suppression. The 75 Ohm impedance supports stable signal transmission over the cable length, while the shielded construction helps protect against external noise. The molded connector ends offer strain relief and consistent contact alignment for long-term use.

Suitable for

• Connecting desktop computers to VGA monitors
• Linking laptops or media players to projectors with VGA input
• Extending VGA signal runs in offices, classrooms, and meeting rooms

Key specifications

• Length: 5 m
• Connectors: 2 × 15-pin HD15 (VGA / D-Sub)
• Impedance: 75 Ohm
• Shielding: yes (shielded cable)
• Connector type: molded with ferrite bead
• Brand: ShiverPeaks
• MPN / EAN: 78056-5 / 1422 · 4017538029843

How to use

Insert each HD15 connector into the VGA port of the source device and the display device, then secure the connectors by tightening the thumbscrews. Ensure both devices are powered off or set to low output while connecting to avoid signal issues. After connection, power on the devices and select the appropriate input on the display if required. For optimal image quality, avoid sharp bends and keep the cable away from strong sources of electromagnetic interference.

Recommendations

For best results, use the cable for standard VGA resolutions and keep cable runs under practical lengths for analog signals; if longer distances or digital signals are required, consider alternative solutions such as active extenders or digital interfaces.
