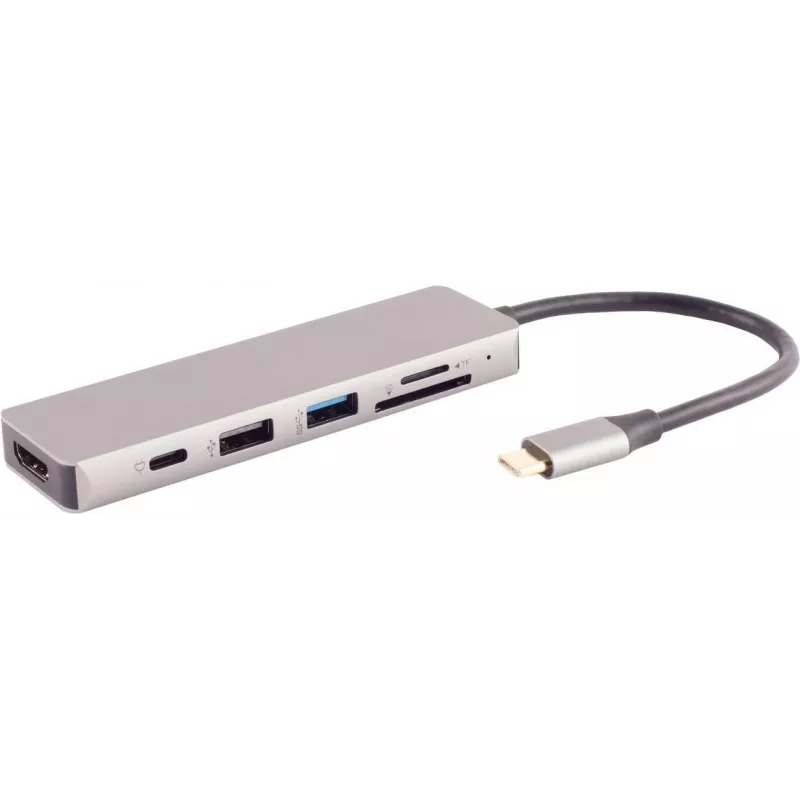

Dock para portátil S/CONN 14-05027 con cable USB 3.2 Gen 1 Type-C gris

The S/CONN 14-05027 Wired USB 3.2 Gen 1 Type-C laptop dock in grey provides a compact way to expand a laptop's connectivity. It connects via a USB Type-C cable using USB 3.2 Gen 1 signaling for data transfer up to 5 Gbit/s and supports USB Power Delivery up to 100 W for charging compatible laptops and devices. The dock integrates a range of ports including USB Type-A, USB 2.0, an HDMI output and slots for common memory cards such as MicroSD and SD, enabling file access and external display connection from a single adapter.

Advantages

This wired dock offers a combination of high-speed data transfer and power delivery in a compact grey enclosure, reducing the need for multiple adapters. The inclusion of both USB 3.2 Gen 1 Type-A and USB 2.0 ports ensures compatibility with a wide range of peripherals while the HDMI output allows connection to external monitors or projectors. Built-in memory card support simplifies photo and file transfers directly from cameras and mobile devices.

Suitable for

• Connecting external monitors, projectors or TVs via HDMI
• Transferring data between laptops and USB or memory card devices
• Charging laptops or mobile devices that accept USB Power Delivery
• Working with photos and media from SD and MicroSD cards

Key specifications

• Interface: USB Type-C connection using USB 3.2 Gen 1 protocol (up to 5 Gbit/s)
• Power delivery: USB Power Delivery support up to 100 W
• Ports: 1 × USB 3.2 Gen 1 (Type-A), 1 × USB 2.0
• Video output: 1 × HDMI port for external displays
• Memory card support: SD and MicroSD card slots
• Colour: Grey

How to use

Connect the dock to a laptop using the built-in USB Type-C cable or included connector, then plug any required peripherals into the available USB ports, insert SD or MicroSD cards into the designated slots, and connect an external display via the HDMI port. If charging is needed, connect the host laptop or a compatible power adapter to the USB Type-C port to enable Power Delivery. Ensure the host device supports USB Type-C data and power functions for full feature compatibility.

Recommendations

Use a compatible USB-C power adapter rated for the device's power requirements when utilizing Power Delivery. For reliable video output, use quality HDMI cables and verify display settings on the host system. Safely eject memory cards and USB devices through the operating system before removal to prevent data loss.
