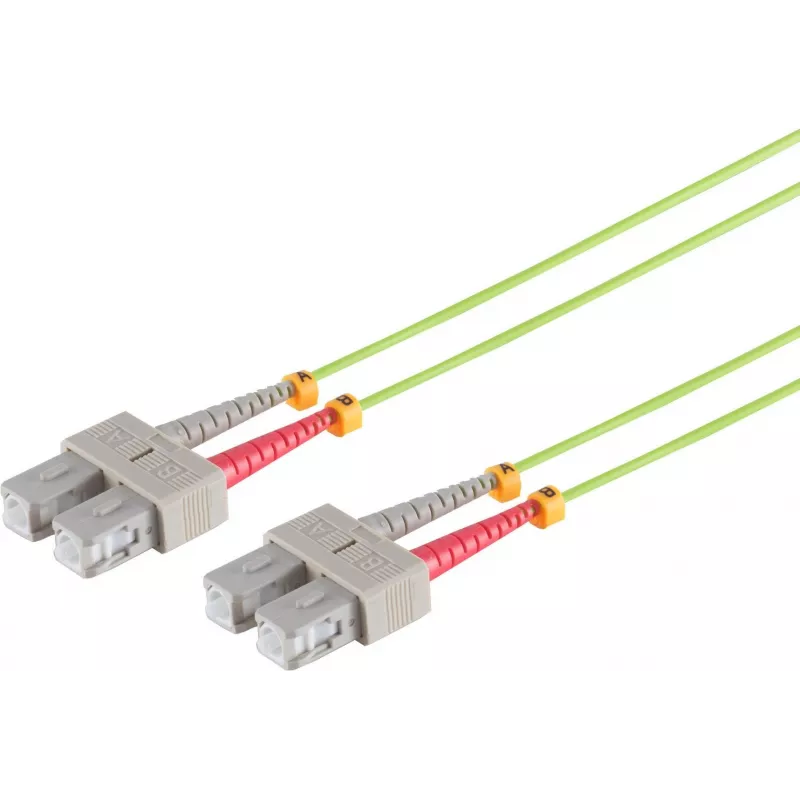

SHIVERPEAKS S/CONN maximum connectivity Cable de parcheo de fibra óptica dúplex SC/SC 50/125 µm OM5 verde lima 5,0 m (07-510515)

In a busy data center, a network engineer needs a reliable fiber optic link between a high-speed switch and a server. This SHIVERPEAKS OM5 duplex patch cable with SC connectors delivers stable, low-loss connectivity for demanding 100G and 400G applications. Its lime green jacket makes identification easy in dense cabling environments.

Key specifications

• Connector type: SC to SC, duplex
• Fiber type: Multimode OM5, 50/125 µm core/cladding
• Length: 5.0 meters
• Jacket colour: Lime green
• Bandwidth: 2800 MHz·km @ 850 nm, 1500 MHz·km @ 953 nm
• Attenuation: ≤ 3.0 dB/km @ 850 nm, ≤ 1.0 dB/km @ 1300 nm
• Polarity: A-B (crossed)

Why choose it

OM5 wideband multimode fiber supports short-wavelength division multiplexing (SWDM), allowing multiple wavelengths over a single fiber pair. This cable is fully compatible with 10G, 40G, 100G, 200G, and 400G Ethernet, making it a future-proof investment for high-speed networks. The lime green jacket is the industry-standard colour for OM5, ensuring quick identification and reducing installation errors.

Ideal use cases

• Data center interconnects between switches, servers, and storage
• High-performance computing clusters and SAN environments
• Enterprise backbone links requiring high bandwidth and low latency
• Telecommunications rooms and campus network upgrades

Good to know

The cable features a duplex zipcord design with two fibers, each terminated with a high-quality SC connector. SC connectors provide a push-pull latching mechanism for secure connections. The cable is built to meet rigorous performance standards, ensuring reliable operation in temperature-controlled environments. Always inspect and clean connectors before installation to maintain optimal signal quality.
