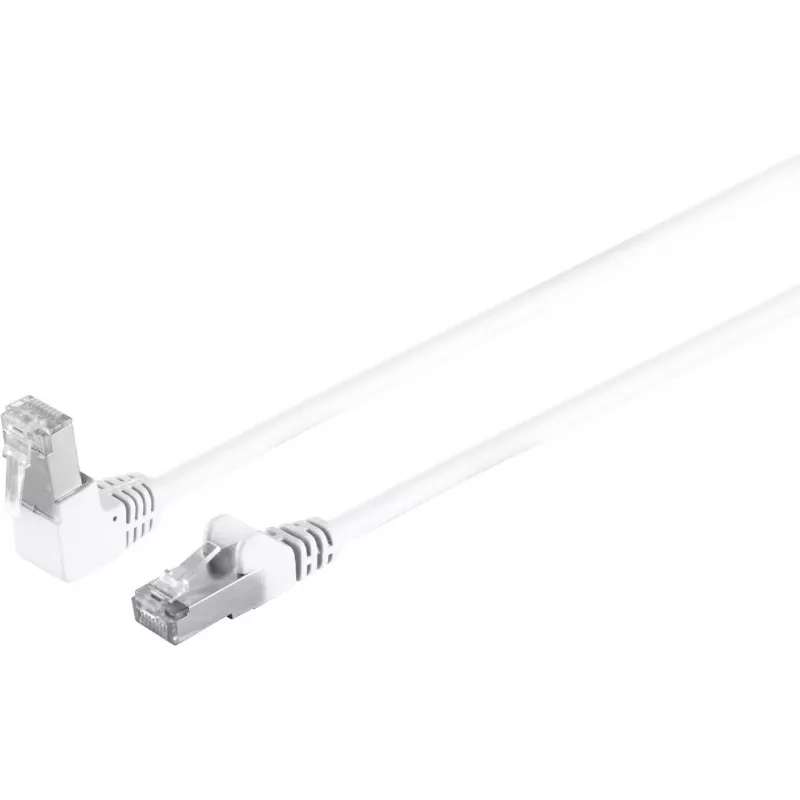

SHIVERPEAKS S/CONN maximum connectivity Cat 6 S/FTP PIMF cable de red patch, en ángulo a recto RJ45, blanco, 20 m 08-64096

With a 250 MHz bandwidth and full S/FTP shielding with PIMF, this 20-meter Cat 6 cable delivers reliable Gigabit Ethernet even in dense, interference-heavy environments. The angled RJ45 connector tucks neatly into tight spaces behind desks or wall outlets, while the straight end plugs directly into your device.

Overview

The SHIVERPEAKS S/CONN maximum connectivity patch cable is engineered for professional network installations where signal integrity and durability are non-negotiable. Each of the four twisted pairs is individually wrapped in metal foil (PIMF), and the entire bundle is protected by an overall braided shield (S/FTP). This dual-layer shielding virtually eliminates alien crosstalk and electromagnetic interference, making it ideal for server rooms, industrial settings, and high-density office environments.

Constructed with 26 AWG stranded copper conductors and a flexible PVC jacket, the cable balances performance with easy routing. The snagless boot protects the locking tab from accidental damage during frequent plugging and unplugging. The angled connector on one end reduces strain and allows connections in confined spaces where a straight plug would not fit.

What stands out

• Angled RJ45 connector for space-constrained installations
• Double shielding (S/FTP) with PIMF for maximum noise rejection
• Supports Gigabit Ethernet (1000 Mbps) up to 250 MHz
• Snagless boots protect connector tabs
• Backward compatible with Cat 5e and Cat 5 networks

Technical details

• Cable type: Cat 6 S/FTP (Screened Foiled Twisted Pair)
• Individual pair shielding: PIMF (Pairs in Metal Foil)
• Connector 1: RJ45 male, angled
• Connector 2: RJ45 male, straight
• Length: 20.0 m
• Colour: White
• Conductor material: Copper (26 AWG, stranded)
• Jacket material: PVC
• Wiring standard: TIA/EIA 568B
• Max bandwidth: 250 MHz
• Max data transfer rate: 1000 Mbps (1 Gigabit Ethernet)
• Compatibility: Cat 5e, Cat 5
• Boot type: Snagless
• Application: LAN, Ethernet, ADSL, network devices

Our verdict

For installers who need a long, interference-proof cable with a space-saving angled connector, this SHIVERPEAKS patch cable is a reliable choice. The S/FTP construction and PIMF shielding ensure stable Gigabit performance even in challenging environments.
