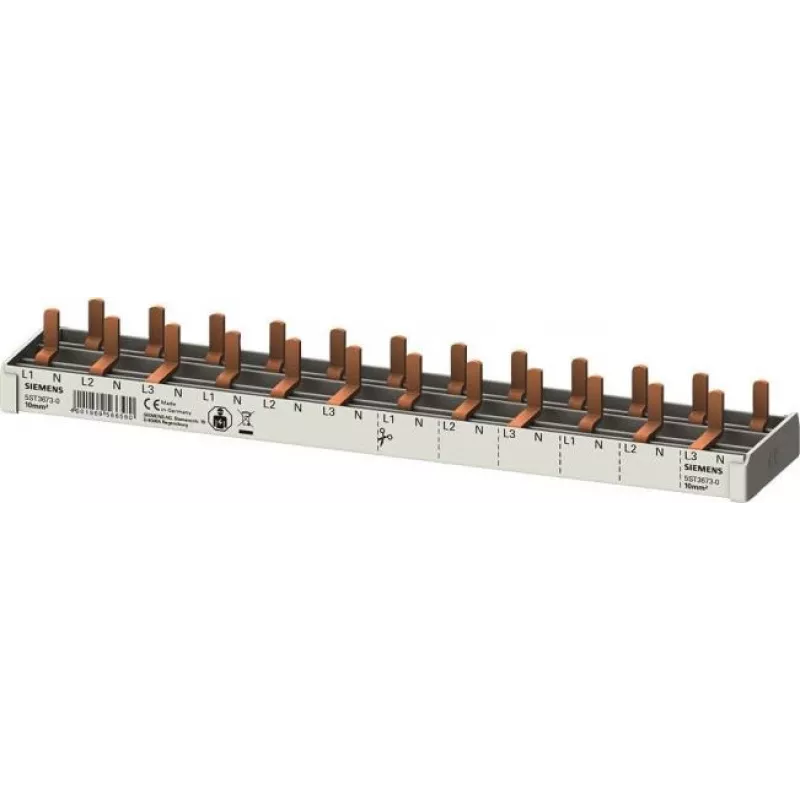

Siemens 5ST3673-0 barra colectora de pines 10mm² 12TE 3 polos SENTRON

The Siemens 5ST3673-0 is a high-quality pin busbar from the SENTRON series, designed for efficient power distribution in electrical panels. With a conductor cross-section of 10 mm² and 12 module spaces (TE), this 3-pole busbar ensures reliable connectivity for modular devices such as MCBs, RCDs, and RCBOs.

Advantages

This fully insulated pin busbar offers safe and secure connections, reducing installation time and minimizing wiring errors. Its copper conductor ensures excellent conductivity and durability, while the grey plastic insulation provides robust protection.

Suitable for

• Power distribution in electrical panels
• Connecting modular devices like circuit breakers and residual current devices
• Industrial and commercial electrical installations

Key specifications

• Product Type: Pin Busbar
• Series: SENTRON
• Number of Poles: 3-pole
• Number of Modules (TE): 12 TE
• Conductor Cross-Section: 10 mm²
• Rated Current (In): 63 A
• Rated Voltage (Un): 400 V AC
• Connection Type: Pin Type
• Conductor Material: Copper
• Insulation Material: Plastic
• Insulation Type: Fully Insulated
• Colour: Grey
• Standard: IEC/EN 60947-7-1

Recommendations

For optimal performance, use this busbar with compatible Siemens SENTRON modular devices. Ensure proper installation by a qualified electrician.
