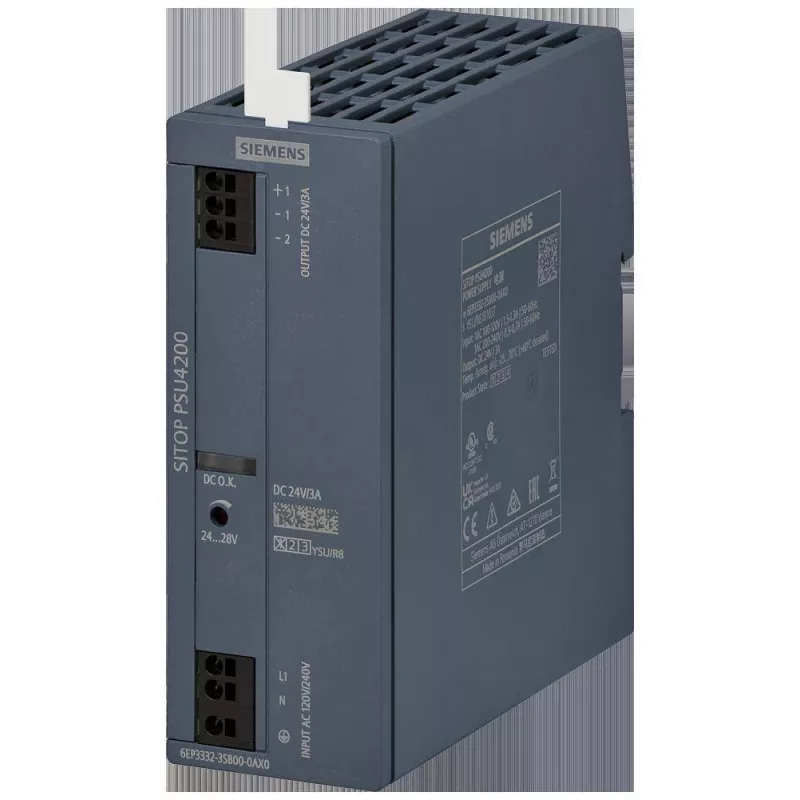

Siemens 6EP3332-3SB00-0AX0 SITOP PSU4200 Fuente de alimentación de 1 fase DC 24V 3A

The Siemens SITOP PSU4200 power supply is a reliable and efficient single-phase unit designed for industrial automation. It provides a stabilized 24 V DC output with 3 A current, ideal for powering control systems, sensors, and actuators. With a compact design for DIN rail mounting, it offers high efficiency and robust protection features.

Advantages

High efficiency of approx. 90% reduces energy costs and heat generation. Integrated overload and short-circuit protection with automatic restart ensures system uptime. Wide input voltage range (85-264 V AC) allows global use. Natural convection cooling ensures silent operation and long service life.

Suitable for

• Industrial control cabinets
• Building automation systems
• Process control equipment
• Machine building applications

Key specifications

• Input: 120-230 V AC (1-phase), 85-264 V AC range, 47-63 Hz
• Output: 24 V DC, 3 A, 72 W
• Adjustable output voltage: 22.8 - 28 V DC
• Efficiency: approx. 90%
• Mounting: DIN rail
• Protection: IP20
• Operating temperature: -25 to +70 °C
• Connection: Screw terminals
• MTBF: >500,000 hours at 40 °C
• Certifications: CE, cULus, CB, ATEX, IECEx, DNV GL, ABS, NK, RCM, EAC

Recommendations

For optimal performance, use with appropriate circuit breakers and ensure adequate ventilation. Suitable for use in safety-critical applications requiring high reliability.
